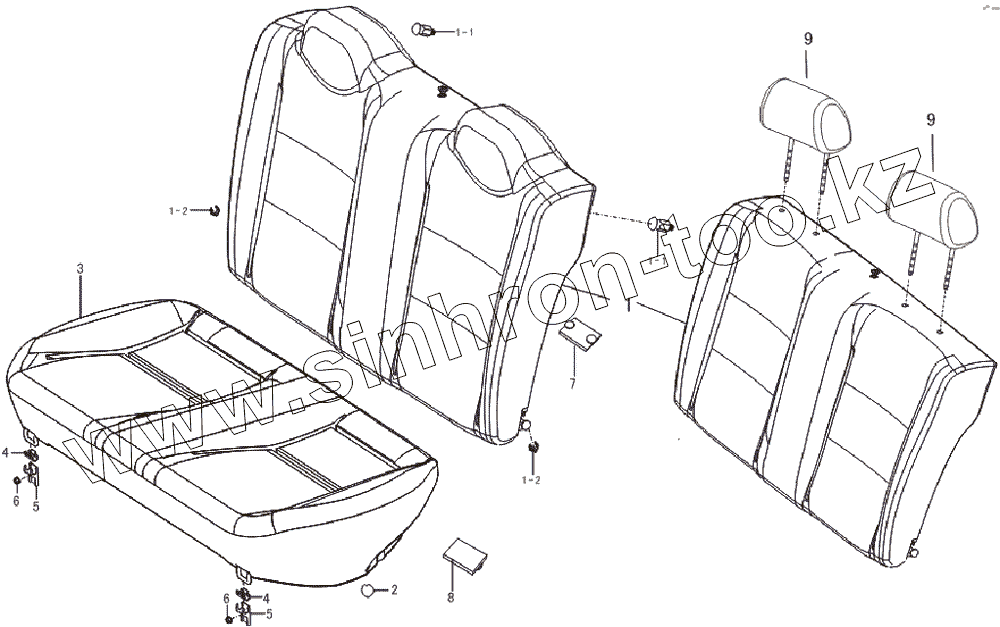

Каталог запасных частей к технике: Lifan LF-7160L1 Breez 1,6. Rear seat
1
1
1
1
1
1
1
1
1-1
1-1
1-2
1-2
2
3
3
3
3
3
3
3
3
4
4
5
5
6
6
7
8
9
9
9
9
9
9
9
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LAA7005000B1B01 | Rear seat backrest | |
| 1 | LAA7005000B1B02 | Rear seat backrest | |
| 1 | LAX7005000A2B01 | Rear seat backrest | |
| 1 | LAX7005000A2B02 | Rear seat backrest | |
| 1 | LAX7005000B01 | Rear seat backrest | |
| 1 | LAX7005000B02 | Rear seat backrest | |
| 1 | LBA7005000A2B01 | Rear seat backrest | |
| 1 | LBA7005000A2B02 | Rear seat backrest | |
| 1-1 | L7000101 | Rear seat buckle | |
| 1-2 | L7005012 | Rear seat hinge clip | |
| 2 | L6801191 | Clip | |
| 3 | LAA7003000B1B01 | Rear seat cushion | |
| 3 | LAA7003000B1B02 | Rear seat cushion | |
| 3 | LAX7003000A2B01 | Rear seat cushion | |
| 3 | LAX7003000A2B02 | Rear seat cushion | |
| 3 | LAX7003000B01 | Rear seat cushion | |
| 3 | LAX7003000B02 | Rear seat cushion | |
| 3 | LBA7003000A2B01 | Rear seat cushion | |
| 3 | LBA7003000A2B02 | Rear seat cushion | |
| 4 | L5130833 | Hook sleeve | |
| 5 | L5130832 | Rear seat mount hook | |
| 6 | Q32208T13F3 | Hex nut and taper elastic washer | |
| 7 | L7005011 | Backrest damper | |
| 8 | L7001011 | Cushion damper | |
| 9 | LAX6808000B01 | Seat pillow | |
| 9 | LAX6808000B02 | Seat pillow | |
| 9 | LAX6808000A2B01 | Seat pillow | |
| 9 | LAX6808000A2B02 | Seat pillow | |
| 9 | LBA6808000B01 | Seat pillow | |
| 9 | LBA6808000B02 | Seat pillow | |
| 9 | LAA7008100B1B01 | Rear pillow | |
| 9 | LAA7008100B1B02 | Rear pillow |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
