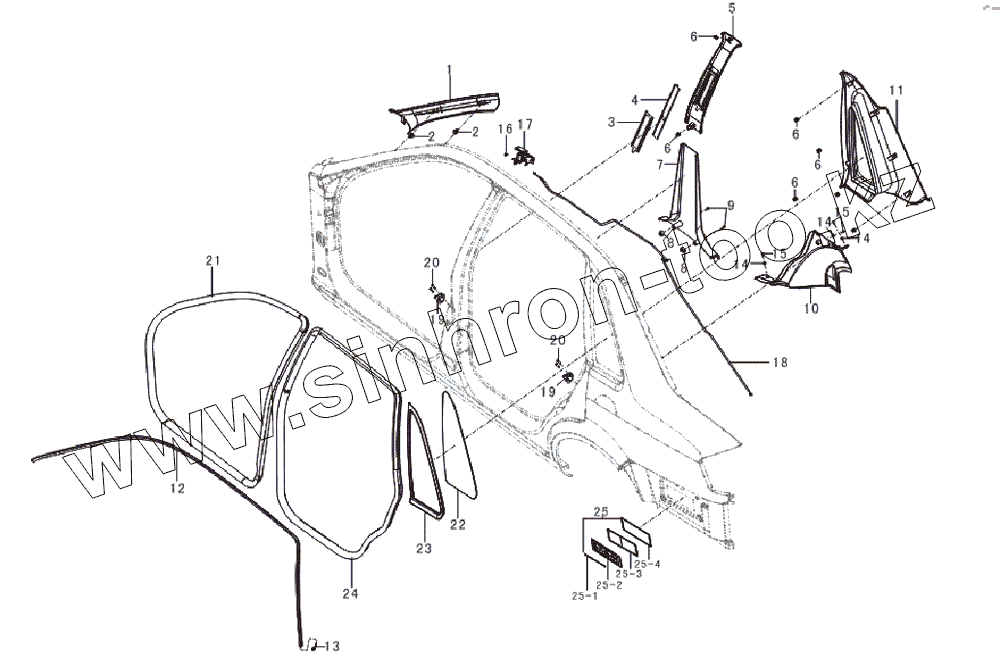

Каталог запасных частей к технике: Lifan LF-7160L1 Breez 1,6. Left side body attachment
1
1
1
2
2
3
4
4
6
6
6
6
6
7
7
8
8
9
10
10
11
11
11
12
13
14
14
14
15
15
16
17
18
19
19
20
20
21
21
22
23
24
24
25
25-1
25-2
25-3
25-4
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LAX5402111B02 | A pillar trim, left | |
| 1 | LAX5402111B03 | A pillar trim, left | |
| 1 | LAX5402111B04 | A pillar trim, left | |
| 2 | L5402112 | Clip | |
| 3 | L5402123 | Safety belt panel stopper | |
| 4 | LAX5402122B02 | Safety belt panel | |
| 4 | LAX5402122B05 | Safety belt panel | |
| 5 | LAX5402121B02 | B pillar trim , left upper | |
| 5 | LAX5402121B03 | B pillar trim , left upper | |
| 5 | LAX5402121B05 | B pillar trim , left upper | |
| 6 | L5402124 | Metal clip | |
| 7 | LAX5402131B02 | B pillar trim , left lower | |
| 7 | LAX5402131B05 | B pillar trim , left lower | |
| 8 | L5402132 | Plastic nut | |
| 9 | Q2734216 | Philips self-tapping screw | |
| 10 | LAX5402151B02 | C pillar trim , left lower | |
| 10 | LAX5402151B05 | C pillar trim , left lower | |
| 11 | LAX5402141B02 | C pillar trim , left upper | |
| 11 | LAX5402141B03 | C pillar trim , left upper | |
| 11 | LAX5402141B05 | C pillar trim , left upper | |
| 12 | L6107111 | Weather strip, roof left side | |
| 13 | L6107112 | Weather strip clip, roof left side | |
| 14 | Q398B03 | Plastic nut | |
| 15 | 335-4216F30 | Screw | |
| 16 | Q1410516 | Hex bolt and taper springness washer | |
| 17 | L5130860 | Trunk lid handle | |
| 18 | L5130850 | Trunk lid cable | |
| 19 | L5408650 | Door buckle | |
| 20 | Q2580616T1F30 | Screw | |
| 21 | LAX6107012A2B03 | Weather strip, front left door | |
| 21 | LAX6107012B02 | Weather strip, front left door | |
| 22 | L5406101 | Left quarter Window glass | |
| 23 | L5406102 | Seal, left quarter Window glass | |
| 24 | LAX6207012A2B03 | Weather strip, rear left door | |
| 24 | LAX6207012B02 | Weather strip, rear left door | |
| 25 | L8123630 | Vent | |
| 25-1 | L8123632 | Press strip | |
| 25-2 | L8123634 | Vent mount | |
| 25-3 | L8123633 | Rubber plate | |
| 25-4 | L8123631 | Seal |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
