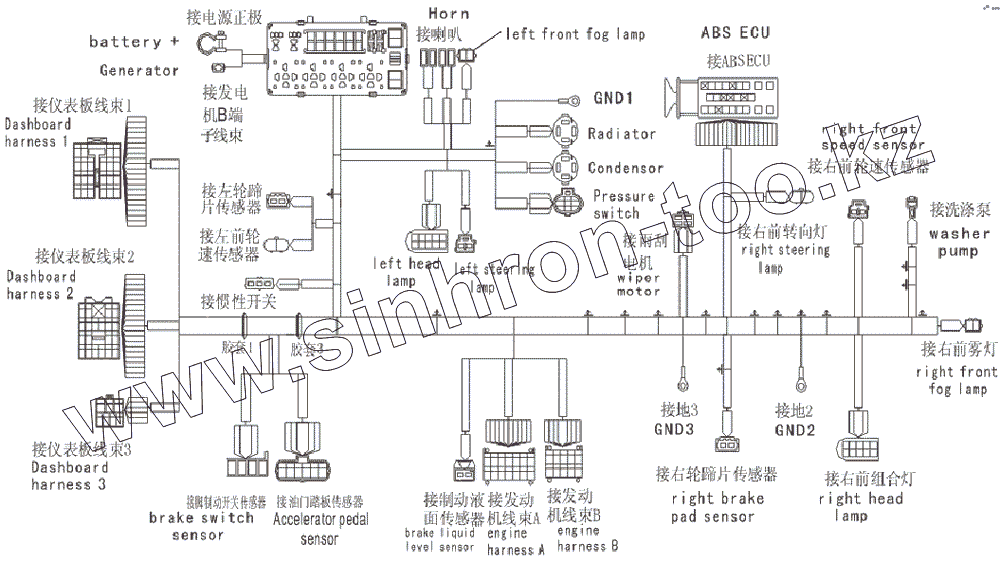

Каталог запасных частей к технике: Lifan LF-7160L1 Breez 1,6. Front harness

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BYD Chevrolet Daewoo Geely Great Wall Hyundai Lifan Tata АЗЛК ВАЗ ГАЗ ЗАЗ ЗИЛ ИЖ ЛуАЗ РАФ УАЗ

Модель Не выбрано LF-7130A1 Breez 1,3 (2009) LF-7131A Breez 1,3 (2010) LF-7160L1 Breez 1,6 (2009) LF-7162 Solano (2009) LF-7162C Solano (2009) LF-LF7161A Breez 1,6H (2009)

Схема > Не выбрано Cylinder head cover Cylinder head Cylinder block Valve timing mechanism Crankshaft and piston rod Timing agency and front cover Oil pan In-manifold In-manifold(plastic) Ex-manifold Thermostat Pulley system Water pump Starter and Generator Auxiliary device Clutch Oil pump Engine harness EFI system Engine assy (without Transmission) Transmission assy Transmission shell Input shaft Output shaft Fork shaft Shift system Differential Speedometer Reverse mechanism Engine mount Front suspension Front shock absorber Rear axle Rear axle bracket Axle shaft Shift mechanism Clutch mechanism Steering system Steering gear Fuel supply system Air filter Accelerator mechanism Fuel tank Brake system(EABS) Brake system(MABS) Brake system(proportional valve) Brake pump Brake pedal Front brake Rear brake Radiator Cooling line Exhaust system Wheels(steel) Wheels(aluminum) Electrical equipment in front compartment Battery Center control box and security system Electrical equipment in dashboard Reverse monitor system Wiper and lamp combination switch Inner handrail switch Windows glass lifter motor Console Lock and keys Communication and A/V device Vehicle lamps Defrost wire Headlining harness Generator B wire Rear harness Front harness Right floor harness Battery negative wire Dashborad harness Rear door harness Right door harness Brake shoe worm inspection harness Left body harness Left door harness ABS sensor Airbag harness Vehicle body assy Engine hood Radiator beam Anti-collision beam Dash panel Left front longeron and front wheel house Right front longeron and front wheel house Roof Left cowl Right cowl Front left door Rear left door Front right door Rear right door Front floor Rear floor Rear cowl Trunk shelf plate Trunk lid Front fender panel Engine hood attachment Front cowl attachment(upper) Front cowl attachment(lower) Windshield wiper Windshield washer Dashboard trims Console trims Glovebox Steering wheel and Airbags Headlining Left side body attachment Right side body attachment Front door attachment Rear door attachment Rear attachment Floor attachment Driver's seat Passenger's seat Rear seat Safety belt Logo emblem A/C controller Condenser A/C pipeline A/C evaporator Air distribution Heater Other parts

1

Позиция на иллюстрации	Заводской номер детали		Название детали
LAL4011000B1	LAL4011000B1		Front harness
LAL4011000C1	LAL4011000C1		Front harness
LAL4011000D1	LAL4011000D1		Front harness
LAL4011000G1	LAL4011000G1		Front harness
LAL4011000H1	LAL4011000H1		Front harness
LAL4011000E1	LAL4011000E1		Front harness
LAL4011000F1	LAL4011000F1		Front harness
LAL4011000R1	LAL4011000R1		Front harness
Q1840616	Q1840616		Bolt
NXK-M4-7	NXK-M4-7		Clip
Q67407200	Q67407200		Tie
Q41206	Q41206		External teeth serrated lock washer
L4011771	L4011771		Front harness sleeve
1	LAL4011000		Front harness

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
