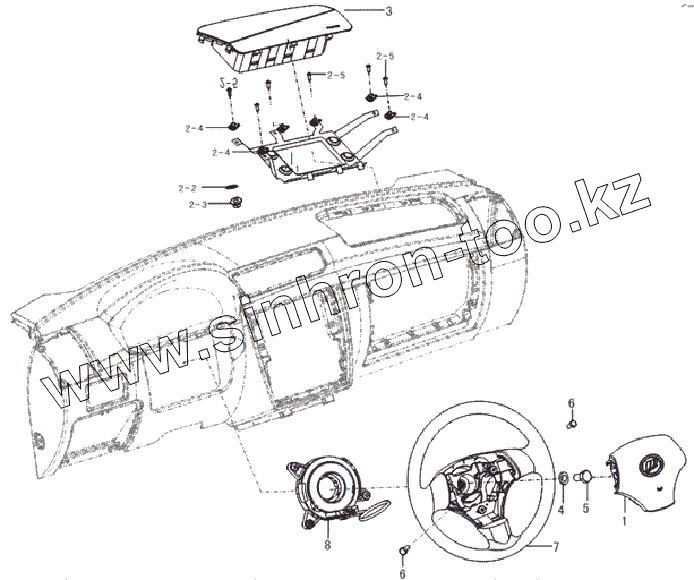

Каталог запасных частей к технике: Lifan LF-7131A Breez 1,3. Steering wheel and Airbags
1
1
1
1
2-2
2-3
2-4
2-4
2-4
2-4
2-5
2-5
2-5
3
3
4
5
6
6
7
7
7
7
7
7
8
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LAX5824100B02 | Driver airbag | |
| 1 | LAX5824100B04 | Driver airbag | |
| 1 | LAX3402111C1B02 | Steering wheel top cover | |
| 1 | LAX3402111C1B04 | Steering wheel top cover | |
| 2-1 | LAX5306102 | Passenger airbag bracket | |
| 2-2 | Q40206 | Big washer | |
| 2-3 | Q33005 | Nut | |
| 2-4 | Q39748202 | Spring nut | |
| 2-5 | Q2734816 | Philips self-tapping screw | |
| 3 | LAX5824200B02 | Passenger airbag | |
| 3 | LAX5824200B04 | Passenger airbag | |
| 4 | Q40112T16F3 | Washer | |
| 5 | Q150B1225 | Hex bolt | |
| 6 | Q1410614 | Hex bolt and taper elastic washer | |
| 7 | LAX3402110B02 | Steering wheel | |
| 7 | LAX3402110B04 | Steering wheel | |
| 7 | LAX3402110B1B02 | Steering wheel | |
| 7 | LAX3402110B1B04 | Steering wheel | |
| 7 | LAX3402110C1B02 | Steering wheel | |
| 7 | LAX3402110C1B04 | Steering wheel | |
| 8 | LAX3658300 | Airbag spring |
