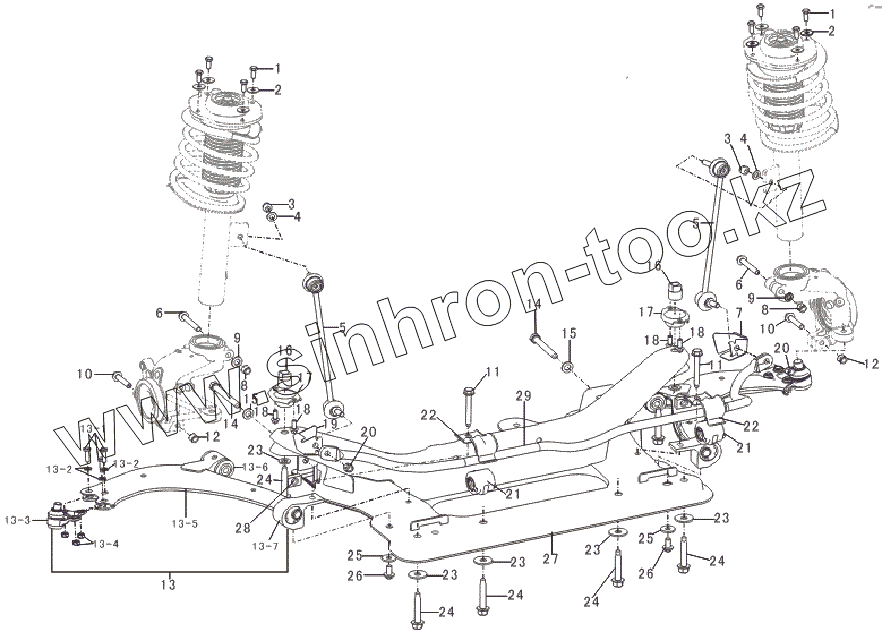

Каталог запасных частей к технике: Lifan LF-7131A Breez 1,3. Front suspension
1
1
2
2
3
3
4
4
5
5
6
6
7
8
8
9
9
10
10
11
11
12
12
13
13-1
13-2
13-2
13-3
13-4
13-5
13-6
13-7
14
14
15
15
16
16
17
17
18
18
18
18
19
20
20
21
21
22
22
23
23
23
23
23
24
24
24
24
24
25
25
26
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Q150B0816TF30 | Hex bolt | |
| 2 | Q41908 | Taper elastic washer | |
| 3 | Q3810T13F3 | Nut | |
| 4 | Q40110 | Flat washer | |
| 5 | L2906110 | Longitudinal tie assy | |
| 6 | Q1841065TF3 | Hex flange bolt | |
| 7 | L2906014 | Right dust shield | |
| 8 | Q32810T13F3 | Nut | |
| 9 | L2901012 | Washer | |
| 10 | Q1841050TF3 | Hex flange bolt | |
| 11 | 231-1075TF3 | Hex flange bolt | |
| 12 | Q32810T13F3 | Nut | |
| 13 | L2904100 | Left control arm assy | |
| L2904200 | L2904200 | Right control arm assy | |
| 13-1 | Q2101030TF2 | Inner hex screw | |
| 13-2 | Q40310 | Springness washer | |
| 13-3 | L2904120 | Ball joint assy | |
| 13-4 | Q32810T13F3 | Nut | |
| 13-5 | L2904110 | Left control arm | |
| L2904210 | L2904210 | Right control arm | |
| 13-6 | L2904130 | Spacer sleeve | |
| 13-7 | L2904140 | Buffer sleeve | |
| 14 | 244-1295TF3 | Hex bolt | |
| 15 | Q40112T16F3 | Washer | |
| 16 | 197-1233T2F3 | Nut | |
| 17 | L2810109 | Bracket | |
| 18 | Q1410820 | Hex bolt and taper springness washer | |
| 19 | L2906013 | Left dust shield | |
| 20 | Q33810T13F3 | Non-metal hex flange lock nut | |
| 21 | L2906120 | Rubber block | |
| 22 | L2906012 | Fixing plate | |
| 23 | Q40212 | Washer | |
| 24 | 231-1270TF3 | Hex flange bolt | |
| 25 | Q41910 | Taper elastic washer | |
| 26 | 231-1020T1F3 | Hex flange bolt | |
| 27 | LBA2810100 | Sub-frame assy | |
| 28 | 175-1212T13F3 | Nut | |
| 29 | L2906011 | Stabilizer bar, front suspension |
