Каталог запасных частей к технике: Lifan LF-7131A Breez 1,3. Ex-manifold

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BYD Chevrolet Daewoo Geely Great Wall Hyundai Lifan Tata АЗЛК ВАЗ ГАЗ ЗАЗ ЗИЛ ИЖ ЛуАЗ РАФ УАЗ

Модель Не выбрано LF-7130A1 Breez 1,3 (2009) LF-7131A Breez 1,3 (2010) LF-7160L1 Breez 1,6 (2009) LF-7162 Solano (2009) LF-7162C Solano (2009) LF-LF7161A Breez 1,6H (2009)

Схема > Не выбрано Cylinder head cover Cylinder head Cylinder block Valve timing mechanism Crankshaft and piston rod Timing agency and front cover Oil pan In-manifold In-manifold(plastic) Ex-manifold Thermostat Pulley system Water pump Starter and Generator Auxiliary device Clutch Oil pump Engine harness EFI system Transmission assy Clutch shell Transmission axle Output shaft Input shaft Transmission shell Differential Engine suspension Front suspension Front shock absorber Rear axle Rear suspension Propeller shaft Shift system Clutch system Steering system Steering gear Fuel line Air filter Accelerator mechanism Fuel tank Brake system(EABS) Brake system(MABS) Brake system(proportional valve) The brake master cylinder with booster device Brake pedal Front brake Rear brake Radiator Cooling line Exhaust Wheels(steel) Wheels(aluminum) Electrical equipment in front compartment Battery Center control box and security system Electrical equipment in dashboard Reverse monitor system Wiper and lamp combination switch Inner handrail switch Windows glass lifter motor Console Lock and keys Communication and A/V device Vehicle lamps Front harness Dashborad harness Generator B wire Headlining harness Left body harness Right door harness Left door harness Rear door harness Tail door harness Tail door adapter harness Right floor harness Battery negative wire Brake shoe worm inspection harness ABS sensor Airbag harness Vehicle body assy Engine hood Radiator beam Anti-collision beam Dash panel Left front longeron and front wheel house Right front longeron and front wheel house Roof Left cowl Right cowl Front left door Rear left door Front right door Rear right door Back door Front floor Rear floor Rear cowl Front fender panel Engine hood attachment Front cowl attachment(upper) Front cowl attachment(lower) Windshield wiper Windshield washer Dashboard trims Console trims Glovebox Steering wheel and Airbags Headlining Left side body attachment(upper) Left side body attachment(lower) Right side body attachment(upper) Right side body attachment(lower) Front door attachment Rear door attachment Tail door interior Tail door exterior Rear cowl attachment(upper) Rear cowl attachment(lower) Floor attachment Driver's seat Passenger's seat Rear seat Safety belts Logo emblem A/C controller condenser A/C pipeline A/C evaporator Air distribution Heater Other parts

1

2

3

4

5

6

7

8

9

10

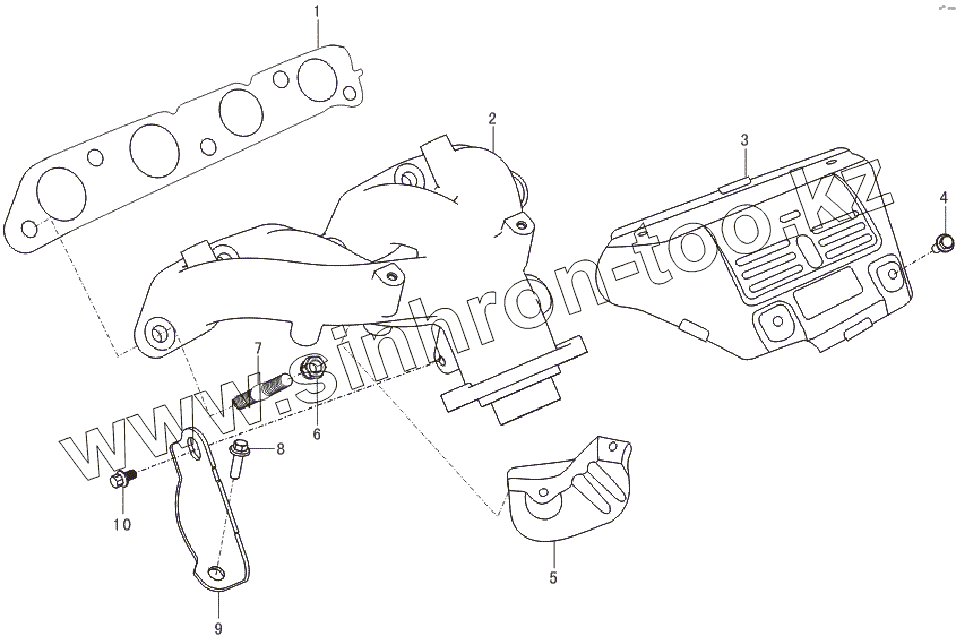

Позиция на иллюстрации	Заводской номер детали		Название детали
1	LF479Q1-1008013B		Exhaust manifold gasket
2	LF479Q1-1008100A		Exhaust Manifold
3	LF479Q1-1008011A		Heat Insulator upper
4	Q1840612		Hex flange bolt
5	LF479Q1-1008012A		Heat insulator lower
6	Q32010		Nut
7	LF479Q1-1008017A		Thru-stud
8	Q1840816		Hex flange bolt
9	LF479Q1-1008016A		Exhaust manifold bracket
10	Q1841016		Hex bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
