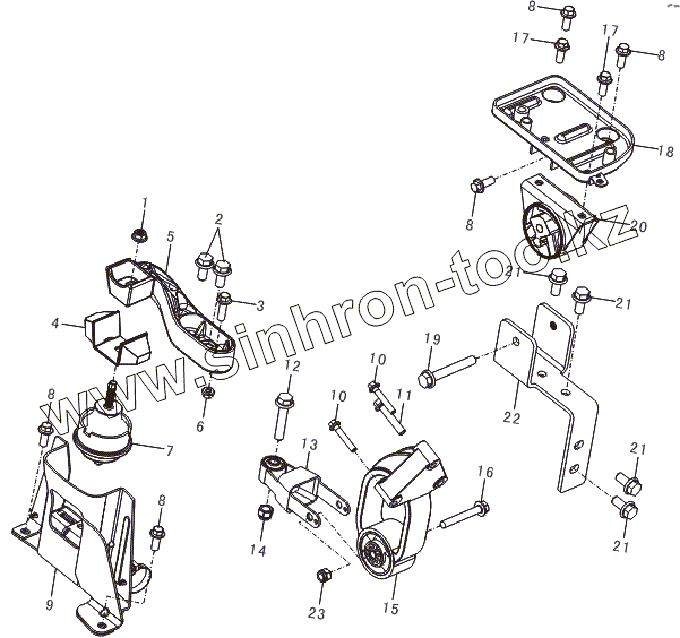

Каталог запасных частей к технике: Lifan LF-7131A Breez 1,3. Engine suspension
1
2
3
4
5
6
7
8
8
8
8
8
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
21
21
21
22
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| LCB2802011 | LCB2802011 | Engine lower protect panel | |
| 1 | Q33010T13F3 | Nut | |
| 2 | 215-1035TF30 | Hex flange bolt and washer | |
| 3 | 231-1040TF30 | Hex flange bolt | |
| 4 | LBA1001430 | Right suspension stopper | |
| 5 | LBA1001401 | Right suspension bracket | |
| 6 | GB/T889.2 | I non metal hex lock nut | |
| 7 | LBA1001420 | Right suspension component | |
| 8 | Q1841025TF30 | Hex flange bolt | |
| 9 | LBA1001410 | Right suspension bracket | |
| 10 | Q1840850TF3 | Hex flange bolt | |
| 11 | 231-1050TF3 | Hex flange bolt | |
| 12 | Q1841260TF3 | Hex flange bolt | |
| 13 | LBA1001220 | Rear suspension bracket | |
| 14 | Q32812T13F3 | Nut | |
| 15 | LBA1001210 | Rear suspension bracket component | |
| 16 | 231-1075TF3 | Hex flange bolt | |
| 17 | 231-1025TF3 | Hex flange bolt | |
| 18 | LBA1001310 | Rear suspension connecting bracket | |
| 19 | 231-1290TF30 | Hex flange bolt | |
| 20 | LBA1001320 | Rear suspension component | |
| 21 | 231-1225TF3 | Steering reflux pipe I | |
| 22 | LBA1001330 | Rear suspension bracket | |
| 22 | LBA1001330B1 | Rear suspension bracket | |
| 23 | Q32810T13F3 | Nut |
