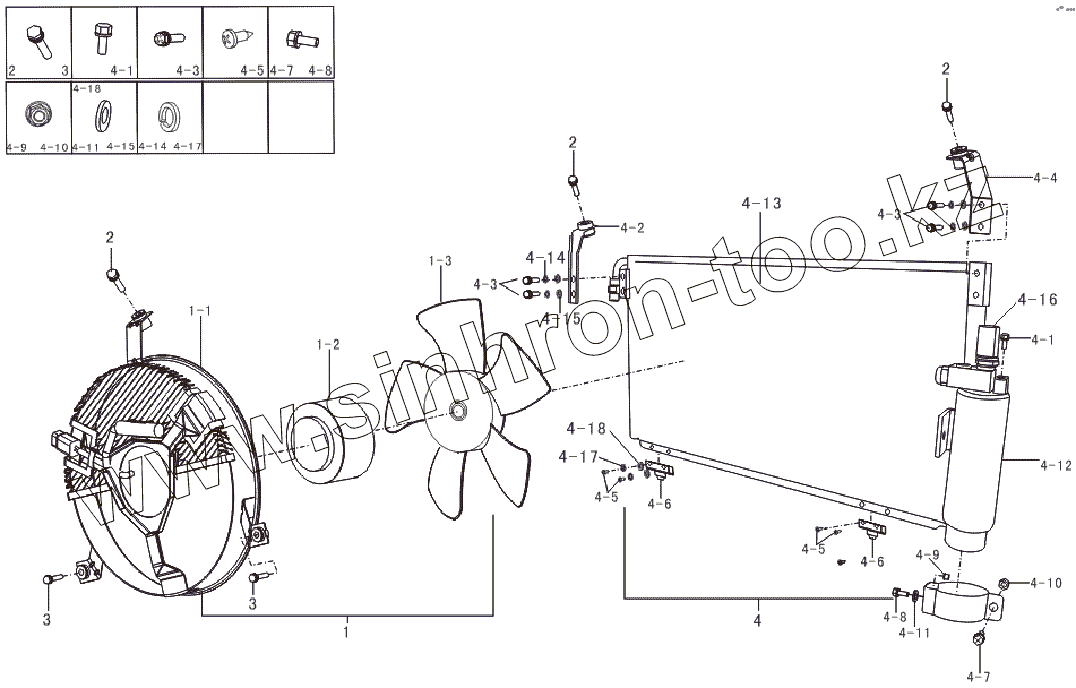

Каталог запасных частей к технике: Lifan LF-7131A Breez 1,3. condenser
1
1-1
1-2
1-3
2
2
2
2
3
3
3
4
4
4-1
4-1
4-2
4-3
4-3
4-3
4-4
4-5
4-5
4-5
4-6
4-6
4-7
4-7
4-8
4-8
4-9
4-9
4-10
4-10
4-11
4-11
4-12
4-13
4-14
4-14
4-15
4-15
4-16
4-16
4-17
4-17
4-18
4-18
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | L8105200 | Cooling fan | |
| 1-1 | L8105210 | Cooling fan shield | |
| 1-2 | L8105220 | Cooling fan motor | |
| 1-3 | L8105203 | Cooling fan blade | |
| 2 | Q1460630T1F30 | Hex bolt and washers | |
| 3 | Q1410625T1F30 | Hex bolt and taper elastic washer | |
| 4 | L8105100 | A/C condenser | |
| 4 | L8105100C1 | A/C condenser | |
| 4-1 | Q150B0625 | Hex bolt | |
| 4-2 | L8105160 | Right bracket, condenser | |
| 4-3 | Q174B0612 | Bolt | |
| 4-4 | L8105150 | Left bracket, condenser | |
| 4-5 | Q2140530 | Screw | |
| 4-6 | L8105140 | Lower bracket, condenser | |
| 4-7 | Q1400625 | Hex bolt and flat washer | |
| 4-8 | Q1400816 | Hex bolt and washer | |
| 4-9 | Q33008 | Nut | |
| 4-10 | Q33006 | Allmetal hex flange locknut | |
| 4-11 | Q40108 | Flat washer | |
| 4-12 | L8105120 | Coolant receiver | |
| 4-13 | L8105110 | Condenser body | |
| 4-14 | Q40306 | Elastic washer | |
| 4-15 | Q40106 | Flat washer | |
| 4-16 | L8105130 | Pressure switch | |
| 4-16 | L8105130B1 | Pressure switch | |
| 4-17 | Q40305 | Elastic washer | |
| 4-18 | Q40105 | Flat washer |
