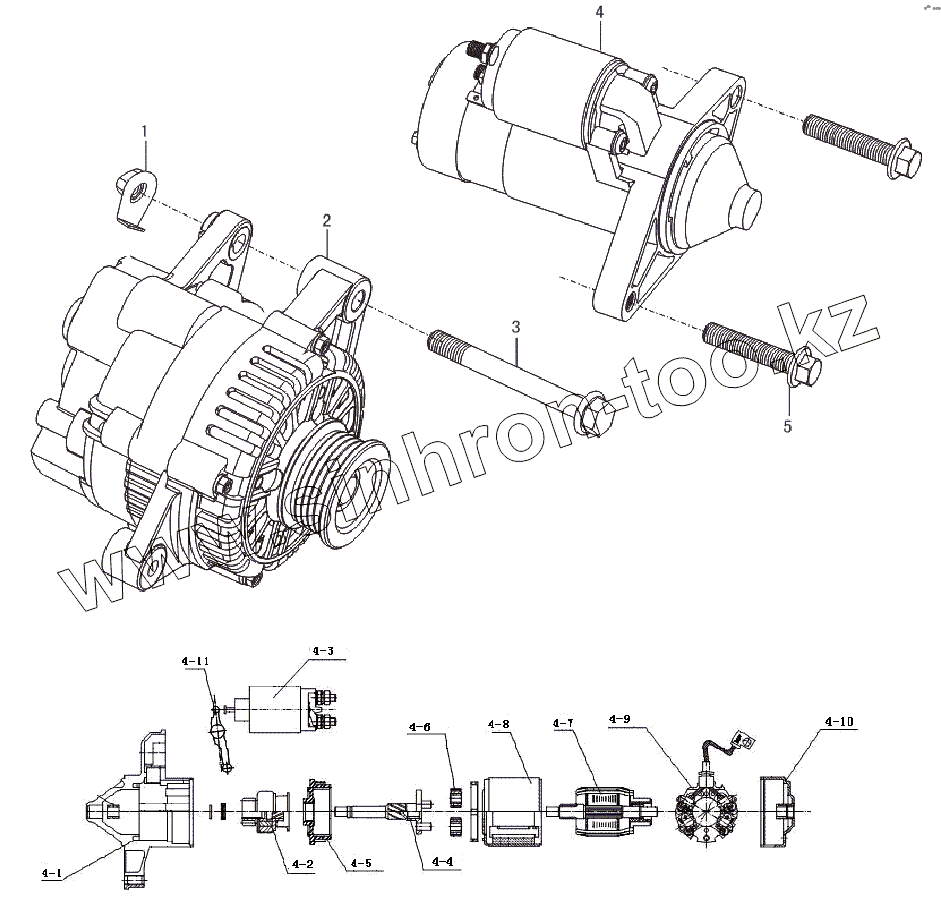

Каталог запасных частей к технике: Lifan LF-7130A1 Breez 1,3. Starter and Generator
1
2
3
4
5
4-1
4-2
4-3
4-4
4-5
4-6
4-7
4-8
4-9
4-10
4-11
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LF479Q1-3701013A | Generator nut | |
| 2 | LF479Q1-3701100A | Generator assy | |
| 3 | Q18410105 | Generator bracket bolt | |
| 4 | LF479Q1-3708100A | Startor assy | |
| 5 | Q1841040 | Bolt | |
| 2-1 | LF479Q3-3701110A | Pulley | |
| 2-2 | LF479Q3-3701120A | Front cap | |
| 2-3 | LF479Q3-3701130A | Bearing | |
| 2-4 | LF479Q3-3701140A | Stater | |
| 2-5 | LF479Q3-3701150A | Rotor | |
| 2-6 | LF479Q3-3701160A | Bearing | |
| 2-7 | LF479Q3-3701170A | End cap | |
| 2-8 | LF479Q3-3701180A | Voltage regulator | |
| 2-9 | LF479Q3-3701190A | Brush | |
| 2-10 | LF479Q3-3701111A | Rectifier | |
| 2-11 | LF479Q3-3701112A | Insulant | |
| 2-12 | LF479Q3-3701113A | Cover | |
| 4-1 | LF479Q3-3708110A | Front cap assy | |
| 4-2 | LF479Q3-3708120A | unidirectional | |
| 4-3 | LF479Q3-3708130A | Solenoid Switch | |
| 4-4 | LF479Q3-3708140A | Star gear | |
| 4-5 | LF479Q3-3708150A | Reducing gear | |
| 4-6 | LF479Q3-3708160A | Spider gear | |
| 4-7 | LF479Q3-3708170A | Armature | |
| 4-8 | LF479Q3-3708180A | Shuck | |
| 4-9 | LF479Q3-3708190A | Brush bracket | |
| 4-10 | LF479Q3-3708111A | Front cap with brush assy | |
| 4-11 | LF479Q3-3708112A | Fork |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
