1
2
3
4
5
6
7
8
9
10
11
12

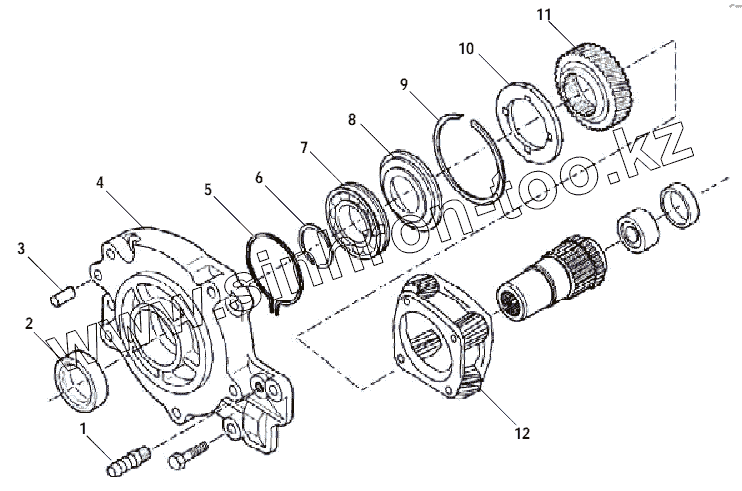

Позиция на иллюстрации
Заводской номер детали
Название детали
1
1800040-SY
BREATHER VALVE
2
1802021-SY
OUTPUT SHAFT OIL SEAL
3
1800013-SY
FRONT END CAP ANCHOR PIN
4
1800012-SY
FRONT END CAP
5
1802041-SY
INPUT SHAFT RETAINER RING
6
1802044-SY
INPUT BEARING RETAINER RING
7
1802043-SY
INPUT BEARING
8
1802042-SY
INPUT SHAFT FRONT BEARING THRUST WASHER
9
1802033-SY
THRUST PLATE RETAINER RING
10
1802032-SY
SUN GEAR THRUST PLATE
11
1802031-SY
SUN GEAR
12
1802030-SY
PLANET CARRIER ASSEMBLY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
