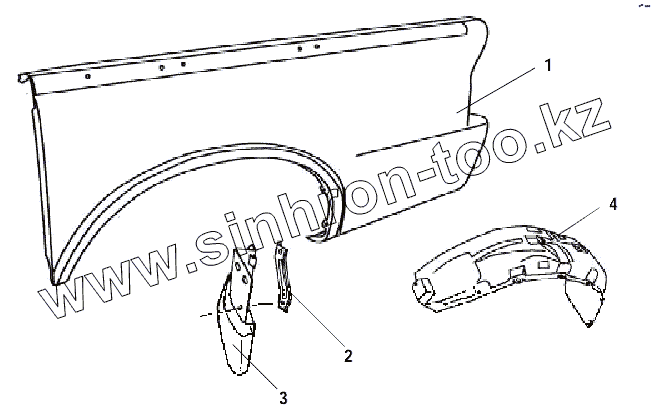

Каталог запасных частей к технике: Great Wall GW-Sailor. SIDE PANEL ASSEMBLY,CARGO BODY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BYD Chevrolet Daewoo Geely Great Wall Hyundai Lifan Tata АЗЛК ВАЗ ГАЗ ЗАЗ ЗИЛ ИЖ ЛуАЗ РАФ УАЗ

Модель Не выбрано GW-Deer (2005) GW-Hower (2006) GW-Safe F1 (2009) GW-Sailor (2007)

Схема > Не выбрано ENGINE MOUNT ENGINE MOUNT AIR FILTER AIR FILTER AIR FILTER AIR FILTER AIR FILTER THROTTLE CONTROL MECHANISM FUEL TANK FUEL TANK FUEL PIPE AND JOINTS FUEL PIPE AND JOINTS FUEL PIPE AND JOINTS EXHAUST SYSTEM EXHAUST SYSTEM EXHAUST SYSTEM RADIATOR AND ACCESSRIES RADIATOR AND ACCESSRIES RADIATOR AND ACCESSRIES RADIATOR AND ACCESSRIES RADIATOR AND ACCESSRIES RADIATOR AND ACCESSRIES EXPANSION TANK ASSEMBLY CLUTCH CONTROL MECHANISM TRANSMISSION – TAGC SSBAT ZOMAX TRANSMISSION – TAGC SSBAT ZOMAX TRANSMISSION – TAGC SSBAT ZOMAX TRANSMISSION – TAGC SSBAT ZOMAX TRANSMISSION – TAGC SSBAT ZOMAX TRANSFER CASE-BW TRANSFER CASE-BW TRANSFER CASE-BW CLUTCH MASTER CYLINDER AND PIPELINE CLUTCH MASTER CYLINDER AND PIPELINE CLUTCH MASTER CYLINDER AND PIPELINE FLOOR CONSOLE ASSEMBLY FLOOR CONSOLE ASSEMBLY PROPELLER SHAFT ASSEMBLY,REAR AXLE PROPELLER SHAFT ASSEMBLY,REAR AXLE PROPELLER SHAFT ASSEMBLY,REAR AXLE FRONT DRIVE AXLE ASSEMBLY FRONT AXLE GASING AND AXLE SHAFT FRONT AXLE FINAL ASSEMBLY FRONT AXLE DIFFERENTIAL ASSEMBLY REAR AXLE HOUSING AND AXLE SHAFT SLEEVE REAR AXLE HOUSING AND AXLE SHAFT SLEEVE REDUCER AND DIFFERNTIAL ASSEMBLY,REAR ALXE REDUCER AND DIFFERNTIAL ASSEMBLY,REAR ALXE REAR BRAKE AND BRAKE DRUM REAR BRAKE AND BRAKE DRUM FRAME ASSEMBLY FRAME ASSEMBLY FRAME ASSEMBLY FRAME ASSEMBLY FRAME ASSEMBLY FRAME ASSEMBLY FRAME ASSEMBLY FRAME ASSEMBLY SPARE TIRE REGULATOR FRONT SUSPEND LEFT FRAME AND STRUT LEFT LOWER CONTROL ARM AND TORSTON ARM ASSEMBLY UPPER CONTROL ARM SUSPENSION ASSEMBLY AND TRANSVERSE STAVILIZATION ROD UPPER/LOWER CONTROL ARM FRONT STABILIZER BAR REAR SUSPENSION ASSEMBLY REAR SUSPENSION ASSEMBLY FRONT WHEEL HUB AND STEERING KNUCKLE STEERING WHEEL ASSEMBLY STEERING COLUMN ASSEMBLY STEERING LINKAGE ASSEMBLY STEERING SYSTEM POWER STEERING PIPELING POWER STEERING PIPELING STEERING GEAR ASSEMBLY INTEGRAL POWER STEERING GEAR WHEEL WHEEL BRAKING PEDALAND DRIVING UNIT SECONDARY BRAKING PEDALAND DRIVING UNIT BRAKING PIPELINE BRAKING PIPELINE BRAKING PIPELINE BRAKING MASTER CYLINDER AND VACUUM BOOSTERPASSEMBLY BRAKING MASTER CYLINDER AND VACUUM BOOSTER ASSEMBLY LOAD-SENSING PROPORTIONING VALVE ASSEMBLY PARKING BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE FRONT BRAKE AND BRAKE DISC FRONT BUMPER AND BRACKET ASSEMBLY FRONT BUMPER AND BRACKET ASSEMBLY FRONT BUMPER AND BRACKET ASSEMBLY FRONT BUMPER AND BRACKET ASSEMBLY RADIATOR GRILL ASSEMBLY RADIATOR GRILL ASSEMBLY ENGINE HOUSING AND LOCK ENGINE HOUSING AND LOCK ENGINE HOUSING AND LOCK ENGINE HOUSING AND LOCK FRONT STAMPING PARTS FRONT STAMPING PARTS FRONT STAMPING PARTS FRONT STAMPING PARTS FRONT STAMPING PARTS FRONT STAMPING PARTS FENDER FENDER FENDER FENDER FRONT WALL FRAME AND COVER PLATE FRONT WALL FRAME AND COVER PLATE FRONT WALL FRAME AND COVER PLATE COWL TOP VENTILATOR LOUVER FRONT WINDSHIELD AND GARNISH STRIP INSTRUMENT PANEL COMPONENT INSTRUMENT PANEL COMPONENT INSTRUMENT PANEL COMPONENT INSTRUMENT PANEL COMPONENT GLOVE BOX LOWER SUPPORT SEAT ASSEMBLY SEAT BELT ASSEMBLY BODY ASSEMBLY FRONT FLOOR ASSEMBLY REAR FLOOR ASSEMBLY FLOOR TRIM ASSEMBLY ROCKER CLAMPING BAR ASSEMBLY SIDE PEDAN ASSEMBLY SIDE WALL FRAME PILLAR AND COVER SHEET SIDE WALL FRAME PILLAR AND COVER SHEET SIDE WALL FRAME PILLAR AND COVER SHEET SIDE WALL FRAME PILLAR AND COVER SHEET SIDE WALL FRAME SHIELD ASSEMBLY FRONT SIDE DOOR FRAME AND COVER SHEET BACK SIDE DOOR FRAME AND COVER SHEET FRONT SIDE DOOR HINGE REAR SIDE DOOR HINGE FRONT DOOR GLASS REGULATOR ASSEMBLY FRONT DOOR GLASS REGULATOR ASSEMBLY REAR DOOR GLASS REGULATOR ASSEMBLY REAR DOOR GLASS REGULATOR ASSEMBLY FRONT SIDE DOOR LOCK ASSEMBLY FRONT SIDE DOOR LOCK ASSEMBLY REAR SIDE DOOR LOCK ASSEMBLY REAR SIDE DOOR LOCK ASSEMBLY TRIM PANEL ASSEMBLY FRONT DOOR TRIM PANEL ASSEMBLY FRONT DOOR TRIM PANEL ASSEMBLY FRONT DOOR TRIM PANEL ASSEMBLY REAR DOOR TRIM PANEL ASSEMBLY REAR DOOR TRIM PANEL ASSEMBLY REAR DOOR REAR WALL FRAME AND COVER SHEET TOP CAP FRAME AND COVER SHEET CARGO BODY ASSEMBLY CARGO BODY ASSEMBLY CARGO BODY ASSEMBLY CARGO INNER PROTECTION ASSEMBLY TARPAULIN ASSEMBLY TARPAULIN ASSEMBLY FRONT BOARD ASSEMBLY,CARGO BODY FRONT BOARD ASSEMBLY,CARGO BODY SIDE PANEL ASSEMBLY,CARGO BODY SIDE PANEL ASSEMBLY,CARGO BODY SIDE PANEL ASSEMBLY,CARGO BODY TALL GATE ASSEMBLY,CARGO BODY TALL GATE ASSEMBLY,CARGO BODY TALL GATE ASSEMBLY,CARGO BODY REAR BUMPER ASSEMBLY REAR BUMPER ASSEMBLY REAR BUMPER ASSEMBLY TRIM LABEL SING TRIM LABEL SING WINDSHIELD WASHER ASSEMBLY WIPER ASSEMBLY CENTROL CONTROL LOCKING CASE REAR-VIEW MIRROR,READING LAMP COMBINATION INSTRUMENT ANTENNA ASSEMBLY IGNITION SWITCH ASSEMBLY LOCK CYLINDER ASSEMBLY,WHOLE VEHICLE FRONT AND REAR FOG LAMP FRONT AND REAR FOG LAMP FRONT COMBINATION LAMP CEILING LIGHT ,NUMBER PLATE LAMP AND REAR COMBINATION LAMP ALARM LAMP,HIGH-MOUNTED BRAKE LAMPAND DOOR LAMP WINDOW REGULATOR SWITCH ASSEMBLY WARM-AIR BLOWER ASSEMBLY EVAPORATOR ASSEMBLY EVAPORATOR ASSEMBLY BLOWER FAN ASSEMBLY TUNNEL ASSEMBLY CONTROL PANEL ASSEMBLY CONDENSER ASSEMBLY CONDENSER ASSEMBLY CONDENSER ASSEMBLY CONDENSER ASSEMBLY BATTERY ASSEMBLY BATTERY ASSEMBLY BATTERY ASSEMBLY RELAY AND FUSE RELAY AND FUSE BACK-UP RADAR ASSEMBLY ENGINE COMPARTMENT WIRING HARNESS ENGINE COMPARTMENT WIRING HARNESS DOOR WIRING HARNESS INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY WIRING HARNESS ASSEMBLY,CEILING LAMP FRAME WIRING HARNESS ASSEMBLY JACK ASSEMBLY INCAR TOOL KIT TRIANGULAR WARNING PLATE

1

1

2

2

3

3

4

4

Позиция на иллюстрации	Заводской номер детали		Название детали
1	8502100-B50		OUTER SIDE PANEL SUB-ASSEMBLY, CARGO BODY, LH
1	8502200-B50		OUTER SIDE PANEL SUB-ASSEMBLY, CARGO BODY, RH
2	8511101-B00		REAR WHEEL MUDGUARD BRACKET, LH
2	8511102-B00		REAR WHEEL MUDGUARD BRACKET, RH
3	8511201-B50		REAR WHEEL MUDGUARD, LH
3	8511202-B50		REAR WHEEL MUDGUARD, RH
4	8511101-B50		REAR WHEEL SPLASH GUARD, LH
4	8511102-B50		REAR WHEEL SPLASH GUARD, RH

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
