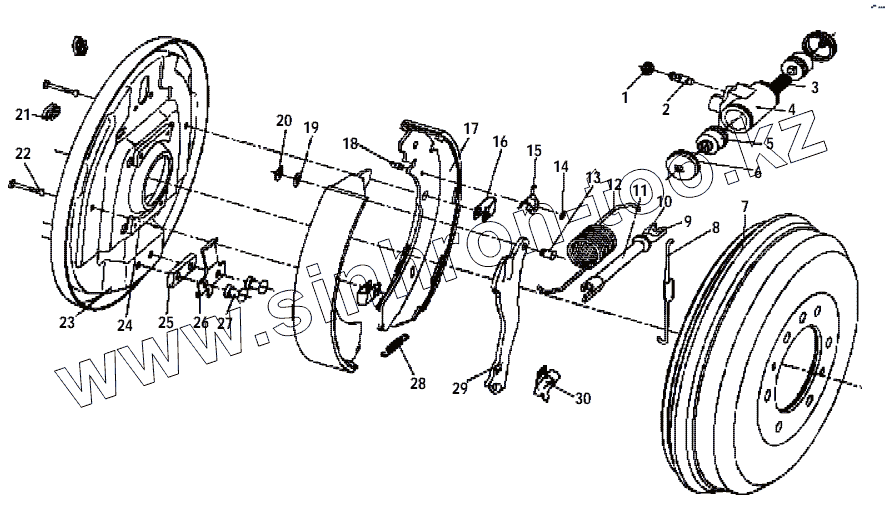

Каталог запасных частей к технике: Great Wall GW-Sailor. REAR BRAKE AND BRAKE DRUM
1
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
29
30
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3502171-P00 | BLEEDING CAP | |
| 2 | 3502172-P00 | BLEEDING PLUG | |
| 3 | 3502173-P00 | PISTON SPRING | |
| 4 | 3502174-P00 | BRAKE WHEEL CYLINDER | |
| 5 | 3502175-P00 | PISTON ASSEMBLY | |
| 6 | 3502176-P00 | BRAKE WHEEL CYLINDER SHIELD | |
| 7 | 3502011-P00 | REAR BRAKE DRUM | |
| 8 | 3502108-P00 | TURN BOARD ADJUSTING SPRING | |
| 9 | 3502155-P00 | PLAY ADJUSTMENT SPINDLE NOSE | |
| 10 | 3502152-P00 | PLAY ADJUSTMENT WHEEL, RH | |
| 10 | 3502151-P00 | PLAY ADJUSTMENT WHEEL, LH | |
| 11 | 3502154-P00 | PLAY ADJUSTMENT SCREW BOLT, LH | |
| 11 | 3502153-P00 | PLAY ADJUSTMENT SCREW BOLT, RH | |
| 12 | 3502102-P00 | RETURN SPRING, RH | |
| 12 | 3502101-P00 | RETURN SPRING, LH | |
| 13 | 3502111-P00 | DRAW ARM PIN | |
| 14 | Q43105 | ELASTIC RING | |
| 15 | 3502103-P00 | SELF-TUNING TURN BOARD, LH | |
| 15 | 3502104-P00 | SELF-TUNING TURN BOARD, RH | |
| 16 | 3502106-P00 | COMPRESSION SPRING | |
| 17 | 3502137-P00 | BRAKE SHOE ASSEMBLY | |
| 18 | 3502112-P00 | TURN BOARD DOWEL PIN | |
| 19 | Q47108 | WASHER | |
| 20 | 3502113-P00 | DRAW ARM FASTENING RING | |
| 21 | 3502109-P00 | RUBBER PLUG COVER | |
| 22 | 3502105-P00 | COMPRESSION SPRING DRAG ROD | |
| 23 | 3502131-P00 | BRAKE BOTTOM PLATE, LH | |
| 23 | 3502132-P00 | BRAKE BOTTOM PLATE, RH | |
| 24 | 3502136-P00 | DOWEL BOARD | |
| 25 | 3502134-P00 | ANCHOR PAD | |
| 26 | 3502133-P00 | ANCHOR PLATE | |
| 27 | 3502135-P00 | FLAT HEAD RIVET | |
| 28 | 3502107-P00 | BRAKE SHOE ADJUSTING SPRING | |
| 29 | 3502184-P00 | PARKING BRAKE DRAW ARM, RH | |
| 29 | 3502183-P00 | PARKING BRAKE DRAW ARM, LH | |
| 30 | 3502182-P00 | DRAW ARM BRACKET, RH | |
| 30 | 3502181-P00 | DRAW ARM BRACKET, LH |
