1
2
3
4
5
6
7
7
8
9
9
10
11
11
12
13
14
14
15
16
17
17
18
19

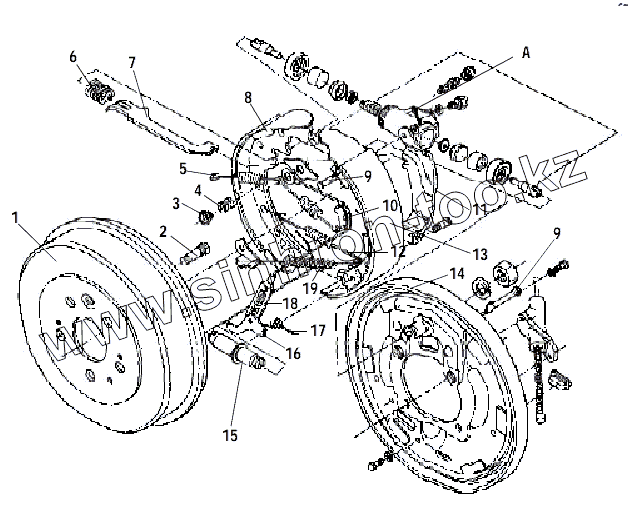

Позиция на иллюстрации
Заводской номер детали
Название детали
3502200-D01
3502200-D01
REAR BRAKE ASSEMBLY, RH
3502210-D01
3502210-D01
REAR BRAKE WHEEL CYLINDER ASSEMBLY
3502100-D01
3502100-D01
BRAKE ASSEMBLY, REAR, LH
3502180-D01
3502180-D01
RIGHT CLEARANCE ASSEMBLY
1
3502011-D01
REAR BRAKE DRUM
2
2403114-D01
WHEEL BOLT (LEFT HANDED ROTATION)
3
3502121-D01
COMPRESSION SPRING SEAT
4
3502123-D01
REAR BRAKE SHOE COMPRESSION SPRING
5
3502107-D01
RETURN SPRING
6
3502117-D01
PUSHER SPRING
7
3502103-D01
LEFT PARKING BRAKE PUSHER
7
3502104-D01
RIGHT PARKING BRAKE PUSHER
8
3502160-D01
REAR BRAKE REAR-MOUNTED SHOE
9
3502112-D01
PIN SHAFT, REAR MOUNTED SHOE
10
3502116-D01
CABLE GUIDE HOLDER
11
3502102-D01
PARKING BRAKE DRAW ARM, RH
11
3502101-D01
PARKING BRAKE DRAW ARM, LH
12
3502115-D01
RETURN SPRING NO.2
13
3502160-D01
REAR BRAKE REAR-MOUNTED SHOE
14
3502130-D01
BOTTOM PLATE AND ANCHOR PIN ASSEMBLY, REAR, LH
14
3502140-D01
BOTTOM PLATE AND ANCHOR PIN ASSEMBLY, REAR, RH
15
3502170-D01
CLEARANCE ADJUSTOR ASSEMBLY
16
3502119-D01
AUTOMATIC ADJUSTING CLEARANCE TURN BOARD
17
3502105-D01
TORSION SPRING, LEFT TURN BOARD CABLE
17
3502106-D01
TORSION SPRING, RIGHT TURN BOARD CABLE
18
3502190-D01
AUTOMATIC ADJUSTING CABLE ASSEMBLY
19
3502125-D01
AUXILIARY TENSION SPRING, AUTOMATIC ADJUSTING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
