FUEL TANK
Каталог запасных частей к технике: Great Wall GW-Sailor. FUEL TANK
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BYD
Chevrolet
Daewoo
Geely
Great Wall
Hyundai
Lifan
Tata
АЗЛК
ВАЗ
ГАЗ
ЗАЗ
ЗИЛ
ИЖ
ЛуАЗ
РАФ
УАЗ
Модель
Не выбрано
GW-Deer (2005)
GW-Hower (2006)
GW-Safe F1 (2009)
GW-Sailor (2007)
Схема
>
Не выбрано
ENGINE MOUNT
ENGINE MOUNT
AIR FILTER
AIR FILTER
AIR FILTER
AIR FILTER
AIR FILTER
THROTTLE CONTROL MECHANISM
FUEL TANK
FUEL TANK
FUEL PIPE AND JOINTS
FUEL PIPE AND JOINTS
FUEL PIPE AND JOINTS
EXHAUST SYSTEM
EXHAUST SYSTEM
EXHAUST SYSTEM
RADIATOR AND ACCESSRIES
RADIATOR AND ACCESSRIES
RADIATOR AND ACCESSRIES
RADIATOR AND ACCESSRIES
RADIATOR AND ACCESSRIES
RADIATOR AND ACCESSRIES
EXPANSION TANK ASSEMBLY
CLUTCH CONTROL MECHANISM
TRANSMISSION – TAGC SSBAT ZOMAX
TRANSMISSION – TAGC SSBAT ZOMAX
TRANSMISSION – TAGC SSBAT ZOMAX
TRANSMISSION – TAGC SSBAT ZOMAX
TRANSMISSION – TAGC SSBAT ZOMAX
TRANSFER CASE-BW
TRANSFER CASE-BW
TRANSFER CASE-BW
CLUTCH MASTER CYLINDER AND PIPELINE
CLUTCH MASTER CYLINDER AND PIPELINE
CLUTCH MASTER CYLINDER AND PIPELINE
FLOOR CONSOLE ASSEMBLY
FLOOR CONSOLE ASSEMBLY
PROPELLER SHAFT ASSEMBLY,REAR AXLE
PROPELLER SHAFT ASSEMBLY,REAR AXLE
PROPELLER SHAFT ASSEMBLY,REAR AXLE
FRONT DRIVE AXLE ASSEMBLY
FRONT AXLE GASING AND AXLE SHAFT
FRONT AXLE FINAL ASSEMBLY
FRONT AXLE DIFFERENTIAL ASSEMBLY
REAR AXLE HOUSING AND AXLE SHAFT SLEEVE
REAR AXLE HOUSING AND AXLE SHAFT SLEEVE
REDUCER AND DIFFERNTIAL ASSEMBLY,REAR ALXE
REDUCER AND DIFFERNTIAL ASSEMBLY,REAR ALXE
REAR BRAKE AND BRAKE DRUM
REAR BRAKE AND BRAKE DRUM
FRAME ASSEMBLY
FRAME ASSEMBLY
FRAME ASSEMBLY
FRAME ASSEMBLY
FRAME ASSEMBLY
FRAME ASSEMBLY
FRAME ASSEMBLY
FRAME ASSEMBLY
SPARE TIRE REGULATOR
FRONT SUSPEND LEFT FRAME AND STRUT
LEFT LOWER CONTROL ARM AND TORSTON ARM ASSEMBLY
UPPER CONTROL ARM SUSPENSION ASSEMBLY AND TRANSVERSE STAVILIZATION ROD
UPPER/LOWER CONTROL ARM
FRONT STABILIZER BAR
REAR SUSPENSION ASSEMBLY
REAR SUSPENSION ASSEMBLY
FRONT WHEEL HUB AND STEERING KNUCKLE
STEERING WHEEL ASSEMBLY
STEERING COLUMN ASSEMBLY
STEERING LINKAGE ASSEMBLY
STEERING SYSTEM
POWER STEERING PIPELING
POWER STEERING PIPELING
STEERING GEAR ASSEMBLY
INTEGRAL POWER STEERING GEAR
WHEEL
WHEEL
BRAKING PEDALAND DRIVING UNIT
SECONDARY BRAKING PEDALAND DRIVING UNIT
BRAKING PIPELINE
BRAKING PIPELINE
BRAKING PIPELINE
BRAKING MASTER CYLINDER AND VACUUM BOOSTERPASSEMBLY
BRAKING MASTER CYLINDER AND VACUUM BOOSTER ASSEMBLY
LOAD-SENSING PROPORTIONING VALVE ASSEMBLY
PARKING BRAKE CONTROL DEVICE
PARKING BRAKE CONTROL DEVICE
FRONT BRAKE AND BRAKE DISC
FRONT BUMPER AND BRACKET ASSEMBLY
FRONT BUMPER AND BRACKET ASSEMBLY
FRONT BUMPER AND BRACKET ASSEMBLY
FRONT BUMPER AND BRACKET ASSEMBLY
RADIATOR GRILL ASSEMBLY
RADIATOR GRILL ASSEMBLY
ENGINE HOUSING AND LOCK
ENGINE HOUSING AND LOCK
ENGINE HOUSING AND LOCK
ENGINE HOUSING AND LOCK
FRONT STAMPING PARTS
FRONT STAMPING PARTS
FRONT STAMPING PARTS
FRONT STAMPING PARTS
FRONT STAMPING PARTS
FRONT STAMPING PARTS
FENDER
FENDER
FENDER
FENDER
FRONT WALL FRAME AND COVER PLATE
FRONT WALL FRAME AND COVER PLATE
FRONT WALL FRAME AND COVER PLATE
COWL TOP VENTILATOR LOUVER
FRONT WINDSHIELD AND GARNISH STRIP
INSTRUMENT PANEL COMPONENT
INSTRUMENT PANEL COMPONENT
INSTRUMENT PANEL COMPONENT
INSTRUMENT PANEL COMPONENT
GLOVE BOX LOWER SUPPORT
SEAT ASSEMBLY
SEAT BELT ASSEMBLY
BODY ASSEMBLY
FRONT FLOOR ASSEMBLY
REAR FLOOR ASSEMBLY
FLOOR TRIM ASSEMBLY
ROCKER CLAMPING BAR ASSEMBLY
SIDE PEDAN ASSEMBLY
SIDE WALL FRAME PILLAR AND COVER SHEET
SIDE WALL FRAME PILLAR AND COVER SHEET
SIDE WALL FRAME PILLAR AND COVER SHEET
SIDE WALL FRAME PILLAR AND COVER SHEET
SIDE WALL FRAME SHIELD ASSEMBLY
FRONT SIDE DOOR FRAME AND COVER SHEET
BACK SIDE DOOR FRAME AND COVER SHEET
FRONT SIDE DOOR HINGE
REAR SIDE DOOR HINGE
FRONT DOOR GLASS REGULATOR ASSEMBLY
FRONT DOOR GLASS REGULATOR ASSEMBLY
REAR DOOR GLASS REGULATOR ASSEMBLY
REAR DOOR GLASS REGULATOR ASSEMBLY
FRONT SIDE DOOR LOCK ASSEMBLY
FRONT SIDE DOOR LOCK ASSEMBLY
REAR SIDE DOOR LOCK ASSEMBLY
REAR SIDE DOOR LOCK ASSEMBLY
TRIM PANEL ASSEMBLY FRONT DOOR
TRIM PANEL ASSEMBLY FRONT DOOR
TRIM PANEL ASSEMBLY FRONT DOOR
TRIM PANEL ASSEMBLY REAR DOOR
TRIM PANEL ASSEMBLY REAR DOOR
TRIM PANEL ASSEMBLY REAR DOOR
REAR WALL FRAME AND COVER SHEET
TOP CAP FRAME AND COVER SHEET
CARGO BODY ASSEMBLY
CARGO BODY ASSEMBLY
CARGO BODY ASSEMBLY
CARGO INNER PROTECTION ASSEMBLY
TARPAULIN ASSEMBLY
TARPAULIN ASSEMBLY
FRONT BOARD ASSEMBLY,CARGO BODY
FRONT BOARD ASSEMBLY,CARGO BODY
SIDE PANEL ASSEMBLY,CARGO BODY
SIDE PANEL ASSEMBLY,CARGO BODY
SIDE PANEL ASSEMBLY,CARGO BODY
TALL GATE ASSEMBLY,CARGO BODY
TALL GATE ASSEMBLY,CARGO BODY
TALL GATE ASSEMBLY,CARGO BODY
REAR BUMPER ASSEMBLY
REAR BUMPER ASSEMBLY
REAR BUMPER ASSEMBLY
TRIM LABEL SING
TRIM LABEL SING
WINDSHIELD WASHER ASSEMBLY
WIPER ASSEMBLY
CENTROL CONTROL LOCKING CASE REAR-VIEW MIRROR,READING LAMP
COMBINATION INSTRUMENT
ANTENNA ASSEMBLY
IGNITION SWITCH ASSEMBLY
LOCK CYLINDER ASSEMBLY,WHOLE VEHICLE
FRONT AND REAR FOG LAMP
FRONT AND REAR FOG LAMP
FRONT COMBINATION LAMP
CEILING LIGHT ,NUMBER PLATE LAMP AND REAR COMBINATION LAMP
ALARM LAMP,HIGH-MOUNTED BRAKE LAMPAND DOOR LAMP
WINDOW REGULATOR SWITCH ASSEMBLY
WARM-AIR BLOWER ASSEMBLY
EVAPORATOR ASSEMBLY
EVAPORATOR ASSEMBLY
BLOWER FAN ASSEMBLY
TUNNEL ASSEMBLY
CONTROL PANEL ASSEMBLY
CONDENSER ASSEMBLY
CONDENSER ASSEMBLY
CONDENSER ASSEMBLY
CONDENSER ASSEMBLY
BATTERY ASSEMBLY
BATTERY ASSEMBLY
BATTERY ASSEMBLY
RELAY AND FUSE
RELAY AND FUSE
BACK-UP RADAR ASSEMBLY
ENGINE COMPARTMENT WIRING HARNESS
ENGINE COMPARTMENT WIRING HARNESS
DOOR WIRING HARNESS
INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY
INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY
WIRING HARNESS ASSEMBLY,CEILING LAMP
FRAME WIRING HARNESS ASSEMBLY
JACK ASSEMBLY
INCAR TOOL KIT
TRIANGULAR WARNING PLATE

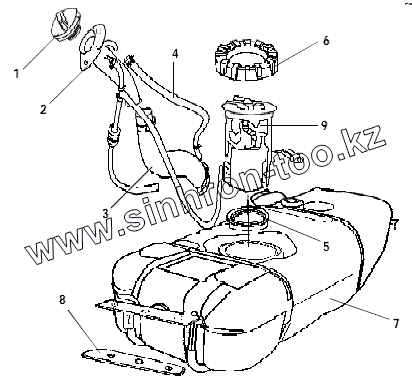

1
2
2
3
3
3
4
5
6
7
7
8
9
Позиция на иллюстрации
Заводской номер детали
Название детали
1
1101220-B00
FUEL FILLER CAPASSEMBLY
2
1101210-B00
FUEL FILLER ASSEMBLY
2
1101210-B06
FUEL FILLER ASSEMBLY
3
1101201-B00
FUEL FILLER HOSE
3
1101201-B50
FUEL FILLER HOSE
3
1101201-B06
FUEL FILLER HOSE
4
1101203-B00
VENTILATION HOSEFUEL FILLER
5
1106101-D01
SEAL RING, FUEL PUMP
6
1101111-D01
FUEL TANK CAP
7
1101110-D01
FUEL TANK ASSEMBLY
7
1101110-B06
FUEL TANK ASSEMBLY
8
1101101-D01
FUEL TANK CUSHION
9
3607600B-E01
ELECTRIC FULE PUMP
