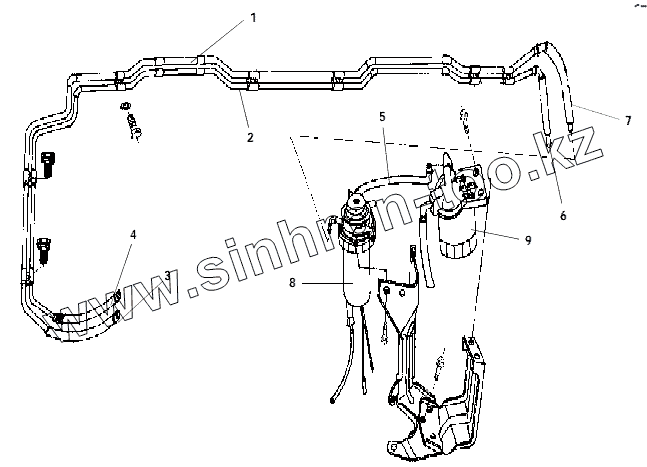

1
1
2
3
3
4
5
5
6
6
7
7
8
9
Позиция на иллюстрации
Заводской номер детали
Название детали
1
1104113-B02
OUTLET PIPE, FUEL TANK
1
1104113-B03
OUTLET PIPE, FUEL TANK
2
1104114-B02
FUEL RETURN HOSE, FUEL TANK
3
1104101-B02
FUEL OUTLET HOSE, FUEL TANK
3
1104101-B03
FUEL OUTLET HOSE, FUEL TANK
4
1104102-B02
FUEL RETURN HOSE, FUEL TANK
5
1104103-B02
INLET HOSE, FUEL FILTER
5
1104103-B22
INLET HOSE, FUEL FILTER
6
1104106-B02
ENGINE FUEL RETURN HOSE
6
1104106-B04
ENGINE FUEL RETURN HOSE
7
1104107-B04
FUEL INLET HOSE, OIL WATER SEPARATOR
7
1104107-B22
FUEL INLET HOSE, OIL WATER SEPARATOR
8
1125100-D17
OIL WATER SEPARATOR ASSEMBLY
9
1117100-D17
FUEL FILTER ASSEMBLY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
