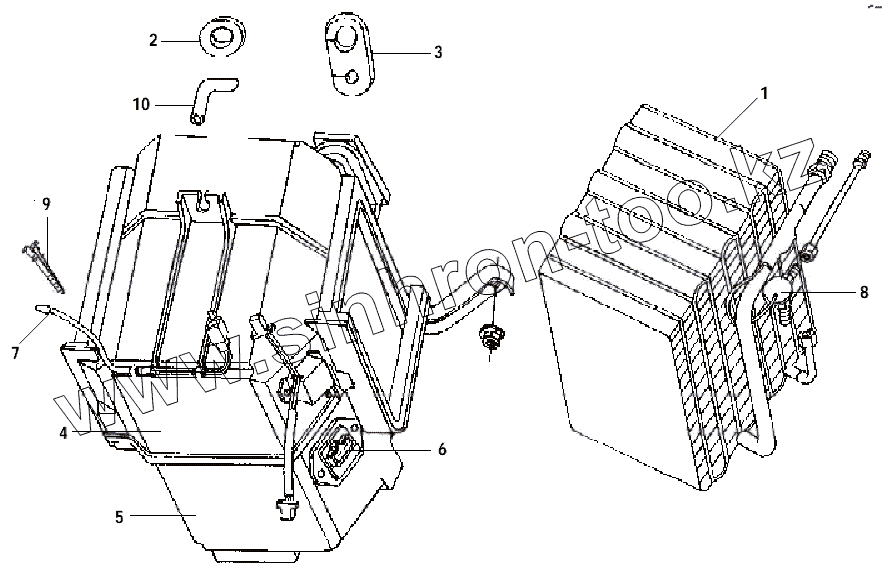

8107000-B02
8107000-B10
1
2
3
4
5
6
7
8
9
10
Позиция на иллюстрации
Заводской номер детали
Название детали
8107000-B02
8107000-B02
EVAPORATOR ASSEMBLY
8107000-B10
8107000-B10
EVAPORATOR ASSEMBLY
8107500-B10-B1
8107500-B10-B1
TEMPERATURE CONTROLLER
1
8107100-B00
EVAPORATOR CORE KIT
2
8107022-B00
WATER OUTLET RUBBER PAD
3
8107023-B00
HIGH/LOW PRESSURE PIPE RUBBER PAD
4
8107200-B00
UPPER HOUSING KIT, EVAPORATOR
5
8107300-B00
LOWER HOUSING KIT, EVAPORATOR
6
8107400-B00
TIMING RESISTANCE KIT
7
8107500-B10
THERMAL RESISTOR KIT
8
8107120-D01
EXPANSION VALVE
9
8107012-B00
THERMAL RESISTOR KIT CLAMP
10
8107013-B00
WATER DRAIN HOSE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
