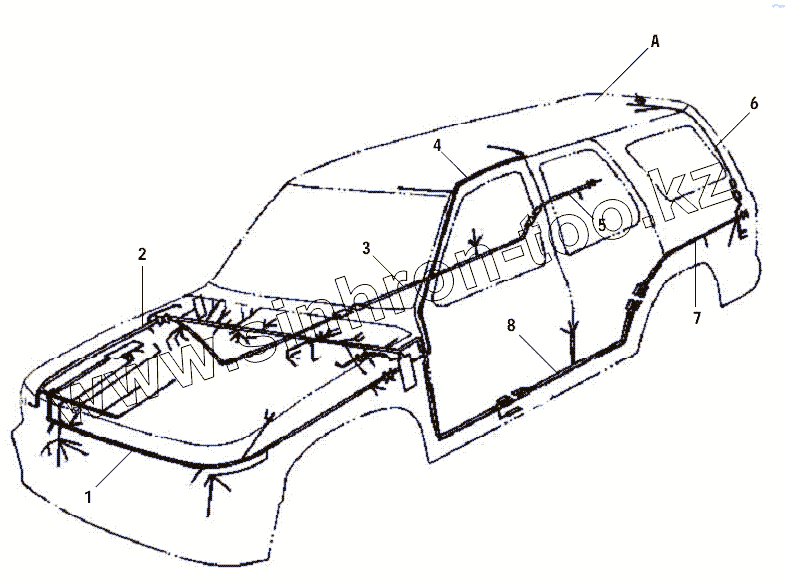

Каталог запасных частей к технике: Great Wall GW-Safe F1. WIRING HARNESS ARRANGEMENT (1)
A
А
А
А
А
А
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
4
4
5
5
6
7
7
8
8
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| A | 5000000-F02 | CAB ASSEMBLY | |
| А | 5000000-F02-B1 | CAB ASSEMBLY | |
| А | 5000000-F00-C1 | CAB ASSEMBLY | |
| А | 5000000-F00-D1 | CAB ASSEMBLY | |
| А | 5000000-F00 | CAB ASSEMBLY | |
| А | 5000000-F00-B1 | CAB ASSEMBLY | |
| 1 | 4011100-F00 | ENGINE COMPARTMENT WIRING HARNESS ASSEMBLY | |
| 1 | 4011100-F00-B1 | ENGINE COMPARTMENT WIRING HARNESS ASSEMBLY | |
| 1 | 4011100-F00-B2 | ENGINE COMPARTMENT WIRING HARNESS ASSEMBLY | |
| 1 | 4011100-F00-B3 | ENGINE COMPARTMENT WIRING HARNESS ASSEMBLY | |
| 1 | 4011100-F02 | ENGINE COMPARTMENT WIRING HARNESS ASSEMBLY | |
| 1 | 4011100-F02-B1 | ENGINE COMPARTMENT WIRING HARNESS ASSEMBLY | |
| 1 | 4011100-F01 | ENGINE ROOM WIRE ASSEMBLY | |
| 2 | 4003100-F02-B1 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-A1 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-A3 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-A4 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-A5 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-A6 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-A7 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-A8 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-B1 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-C1 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-C2 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F00-C3 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F01 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 4003100-F01-B1 | 4003100-F01-B1 | DASHBOARD AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 4003100-F01-C1 | 4003100-F01-C1 | DASHBOARD AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 4003100-F01-H1 | 4003100-F01-H1 | DASHBOARD AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 4003100-F01-G1 | 4003100-F01-G1 | DASHBOARD AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 4003100-F01-H2 | 4003100-F01-H2 | DASHBOARD AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 4003100-F01-J1 | 4003100-F01-J1 | DASHBOARD AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 4003100-F01-J1 | 4003100-F01-J1 | DASHBOARD AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 4003100-F05 | 4003100-F05 | DASHBOARD AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F05-B1 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F05-C1 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F05-C2 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 2 | 4003100-F05-C3 | INSTRUMENTS PANEL AND CONSOLE WIRING HARNESS ASSEMBLY | |
| 3 | 4012200-F00 | MIDDLE WIRING HARNESS, RH | |
| 3 | 4012200-F00-B1 | MIDDLE WIRING HARNESS, RH | |
| 4 | 4018100-F01-B1 | FRONT ROOF LAMP WIRING HARNESS | |
| 4 | 4018100-F01 | FRONT ROOF LAMP WIRING HARNESS | |
| 5 | 4013200-F00 | REAR WIRING HARNESS, RH | |
| 5 | 4013200-F00-A1 | REAR WIRING HARNESS, RH | |
| 6 | 4013400-F00 | WIRING HARNESS, REAR WIPER | |
| 7 | 4013100-F00 | REAR WIRING HARNESS, LH | |
| 7 | 4013100-F00-A1 | REAR WIRING HARNESS, LH | |
| 8 | 4012100-F00-B1 | MIDDLE WIRING HARNESS, LH | |
| 8 | 4012100-F00 | MIDDLE WIRING HARNESS, LH |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
