Каталог запасных частей к технике: Great Wall GW-Safe F1. INSTRUMENT PANEL REINFORCEMENT MEMBER

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BYD Chevrolet Daewoo Geely Great Wall Hyundai Lifan Tata АЗЛК ВАЗ ГАЗ ЗАЗ ЗИЛ ИЖ ЛуАЗ РАФ УАЗ

Модель Не выбрано GW-Deer (2005) GW-Hower (2006) GW-Safe F1 (2009) GW-Sailor (2007)

Схема > Не выбрано ENGINE MOUNT ENGINE MOUNT AIR FILTER ASSEMBLY AIR FILTER ASSEMBLY ACCELERATOR OPERATING DEVICE FUEL SUPPLY SYSTEM. FUEL TANK ASSEMBLY FUEL SUPPLY SYSTEM. FUEL TANK ASSEMBLY FUEL SUPPLY SYSTEM. FUEL PIPELINE EXHAUST SYSTEM DEVICE RADIATOR ASSEMBLY EXPANSI ON TANK ASSEMBLY CLUNTCH CONTROL MECHANISN TRANSMISSION-TAGC SSBAT TRANSMISSION-TAGC SSBAT TRANSMISSION-TAGC SSBAT TRANSMISSION-TAGC SSBAT TRANSMISSION-TAGC SSBAT TRANSMISSION-HANSHIN TRANSMISSION-HANSHIN TRANSMISSION-HANSHIN TRANSMISSION-HANSHIN TRANSMISSION-HANSHIN TRANSMISSION-HANSHIN TRANSMISSION-HANSHIN TRANSMISSION-HANSHIN TRANSFER CASE-BW TRANSFER CASE-BW TRANSFER CASE-BW PROPELLER SHAFT ASSEMBLY PROPELLER SHAFT ASSEMBLY 4WD FRONT DRIVE AXLE ASSEMBLY 4WD FRONT DRIVE AXLE ASSEMBLY(F1) FRONT AXLE CASING AND AXLE SHAFT(F1) FRONT REDUCER AND DIFFERENTIAL ASSEMBLY FRONT REDUCER AND DIFFERENTI AL ASSEMBLY(F1) FRONT WHEEL HUB AND STEERING KNUCKLE FRONT WHEEL HUB AND STEERING KNUCKLE(F1) REAR AXLE ASSEMBLY REAR AXLE ASSEMBLY(F1) REAR REDUCER AND DIFFERENTIAL ASSEMBLY SPARETIRE REGULATOR ASSEMBLY LOWER CONTROL ARM ASSEMBLY UPPER CONTROL ARM ASSEMBLY AND TORSION BAR UPPER/LOWER CONTROL ARM (F1) STABILIZER BAR FRONT STABILIZER BAR (F1) REAR SUSPENSI ON ASSEMBLY REAR COILSPRING ASSEMBLY AND SHOCK ABSORBER ASSEMBLY REAR SUSPENSION ASSEMBLY (F1) STEERING WHEEL ASSEMBLY STEERING APPARATUS POWER STEERING PUMP ASSEMBLY STEERING TIEROD AND STEERING GEAR INTEGRAL POWER STEERING GEAR (F1) WHEEL ASSEMBLY BRAKING LINE UNIT BRAKE AND CLUTCH PEDAL ASSEMBLY BRAKE CALIPER ASSEMBLY FRONT BRAKE ASSEMBLY (F1) REAR BRAKE ASSEMBLY REAR BRAKE ASSEMBLY (F1) VACUUM BOOSTER AND BRAKE MASTER CYLINDER ASSEMBLY PARKING BRAKE CONTROLLER ASSEMBLY LOAD-SENSING PROPORTIONING VALVE ASSEMBLY ENGINE MUDGUARD FRAME ASSEMBLY BODY MOUNT ASSEMBLY INSTRUMENT PANEL ASSEMBLY (1) INSTRUMENT PANEL TRIM PANEL INSTRUMENT PANEL ASSEMBLY (2) INSTRUMENT PANEL REINFORCEMENT MEMBER LEFT A PILLAR ASSEMBLY RIGHT A PILLAR ASSEMBLY LEFT B PILLAR ASSEMBLY RGHT B PILLAR ASSEMBLY LEFT REAR BODY SIDE (1) - REAR BODY SIDE OUTER PANEL RIGHT REAR BODY SIDE (1)- REAR BODY SIDE OUTER PANEL REAR BODY SIDE (2) - SPARE TIRE AND SIDE WINDOW ACCESSORIES REAR BODY SIDE (3) - FUEL FILLER DOOR ACCESSORIES AND MUDGUARD REAR BODY SIDE( 4)- LEFT REAR BODY SIDE TRIM PLATE REAR BODY SIDE (4)- RIGHT REAR BODY SIDE TRIM PLATE LEFT BODY SIDE UPPER AND LOWER RAIL RIGHT BODY SIDE UPPER AND LOWER RAIL ROOF PANEL AND ROOF RACK ASSEMBLY ROOF LINER AND ACCESSORIES FRONT BUMPER (1) FRONT BUMPER (2) DOOR SIDE STEP REAR BUMPER (1) REAR BUMPER (2) SPARE TIRE BRACKET ASSEMBLY (1) SPARE TIRE BRACKET ASSEMBLY (2) SPARE TIRE COVER ASSEMBLY FLOOR (1) - FRONT FLOOR FLOOR (2) - FRONT FLOOR FLOOR (3) - REAR FLOOR FLOOR (4) - CARPET FLOOR (5) - FLOOR CONSOLE AND ACCESSORIES FRONT WALL (1) – FRONT VENTLID AND FRONT WALL UPPER PARTS ASSEMBLY FRONT WALL (2) – FRONT VENTLID AND FRONT WALL UPPER PARTS ASSEMBLY FRONT WINDSHIELD AND ACCESSORIES FRONT WALL ASSEMBLY LEFT FRONT DOOR ASSEMBLY RIGHT FRONT DOOR ASSEMBLY LEFT REAR DOOR ASSEMBLY RIGHT REAR DOOR ASSEMBLY DOOR UPPER AND LOWER HINGE ASSEMBLY LEFT DOOR INNER TRIM PANEL RIGHT DOOR INNER TRIM PANEL RADIATOR BRACKET ASSEMBLY (1) RADIATOR BRACKET ASSEMBLY (2) RADIATOR BRACKET ASSEMBLY (3) HEAT RADIATOR COWL ENGINE HOOD ASSEMBLY (1) ENGINE HOOD ASSEMBLY (2) FENDER ASSEMBLY (1) FENDER ASSEMBLY (2) MUDGUARD ASSEMBLY FRONG ROW SEATS ASSEMBLY REAR ROW SEATS ASSEMBLY FRONT ROW SEAT BELT ASSEMBLY REAR ROW SEAT BELT ASSEMBLY WIPER ASSEMBLY REAR WIPER ASSEMBLY REAR ROOF MEMBER TRIM PANEL AND REAR CEILING LAMP WINDSHIELD WASHER ASSEMBLY BATTERY ASSEMBLY LAMP (1) LAMP (2) LAMP (3) FRONT DOOR LOCK ASSEMBLY REAR DOOR LOCK ASSEMBLY BACK SIDE DOOR LOCK ASSEMBLY TAIL DOOR WINDOW REGULATOR AND LOCK ASSBMBLY POWER WINDOW REGULATOR ASSEMBLY ELECTRICAL EQUIPMENT (1) ELECTRICAL EQUIPMENT (2) ELECTRICAL EQUIPMENT (3) HEAT CONDENSER FAN ASSEMBLY LOUD SPEAKER ASSEMBLY INSTRUMENT CONTROL CONSOLE (1) INSTRUMENT CONTROL CONSOLE (2) COMBINATION INSTRUMENT ASSEMBLY WIRING HARNESS ARRANGEMENT (1) WIRING HARNESS ARRANGEMENT (2) WIRING HARNESS ARRANGEMENT (3) WIRING HARNESS ARRANGEMENT (4) TAIL DOOR (1) TAIL DOOR (2) TAIL DOOR (3) TAIL DOOR (4) TAIL DOOR UPPER FRAME ASSEMBLY TAIL SPOILER A/C (1) – CONDENSER AND RECEIVER DRYER A/C (2) – COMPRESSOR ASSEMBLY A/C (3) – EVAPORATOR AND BLOWER A/C (4) – AIR TUNNEL A/C (5) – HEAT RADIATOR ASSEMBLY A/C (6) – CONTROLLER ASSEMBLY VEHICLE LOGO TOOLS ASSEMBLY DECORATION RIBBON

1

2

2

3

4

5

6

7

8

8

9

10

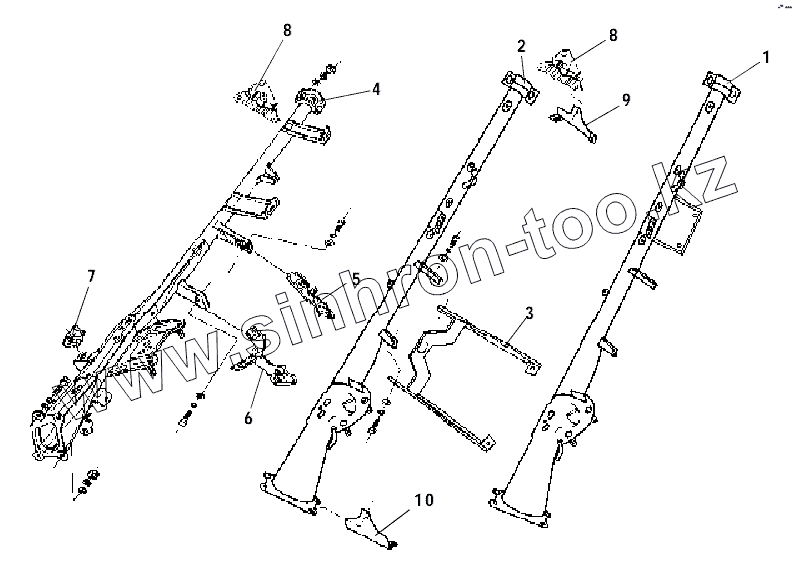

Позиция на иллюстрации	Заводской номер детали		Название детали
1	5306301-D07-B1		REINFORCEMENT MEMBERINSTRUMENT PANEL
2	5306301-D07		REINFORCEMENT MEMBERINSTRUMENT PANEL
2	5306301-F00		REINFORCEMENT MEMBERINSTRUMENT PANEL
3	5306306-D07		BRACKET, CD PLAYER
4	5306301-D01		REINFORCEMENT MEMBERINSTRUMENT PANEL
5	5306303-D01		BRACKET, RH
6	5306302-D01		BRACKET, LH
7	5306305-D01		BRACKET, FRONT WALL
8	5306304-D01		MOUNTING BRACKET, REINFORCEMENT MEMBERINSTRUMENT PANEL
9	5306172-D07		RIGHT END BRACKET, INSTRUMENT PANEL
10	5306171-D07		LEFT END BRACKET, INSTRUMENT PANEL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
