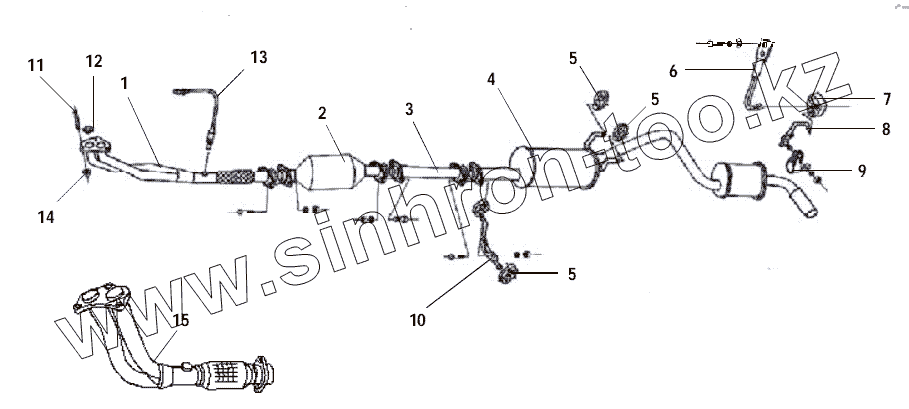

Каталог запасных частей к технике: Great Wall GW-Safe F1. EXHAUST SYSTEM DEVICE
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BYD
Chevrolet
Daewoo
Geely
Great Wall
Hyundai
Lifan
Tata
АЗЛК
ВАЗ
ГАЗ
ЗАЗ
ЗИЛ
ИЖ
ЛуАЗ
РАФ
УАЗ
Модель
Не выбрано
GW-Deer (2005)
GW-Hower (2006)
GW-Safe F1 (2009)
GW-Sailor (2007)
Схема
>
Не выбрано
ENGINE MOUNT
ENGINE MOUNT
AIR FILTER ASSEMBLY
AIR FILTER ASSEMBLY
ACCELERATOR OPERATING DEVICE
FUEL SUPPLY SYSTEM. FUEL TANK ASSEMBLY
FUEL SUPPLY SYSTEM. FUEL TANK ASSEMBLY
FUEL SUPPLY SYSTEM. FUEL PIPELINE
EXHAUST SYSTEM DEVICE
RADIATOR ASSEMBLY
EXPANSI ON TANK ASSEMBLY
CLUNTCH CONTROL MECHANISN
TRANSMISSION-TAGC SSBAT
TRANSMISSION-TAGC SSBAT
TRANSMISSION-TAGC SSBAT
TRANSMISSION-TAGC SSBAT
TRANSMISSION-TAGC SSBAT
TRANSMISSION-HANSHIN
TRANSMISSION-HANSHIN
TRANSMISSION-HANSHIN
TRANSMISSION-HANSHIN
TRANSMISSION-HANSHIN
TRANSMISSION-HANSHIN
TRANSMISSION-HANSHIN
TRANSMISSION-HANSHIN
TRANSFER CASE-BW
TRANSFER CASE-BW
TRANSFER CASE-BW
PROPELLER SHAFT ASSEMBLY
PROPELLER SHAFT ASSEMBLY
4WD FRONT DRIVE AXLE ASSEMBLY
4WD FRONT DRIVE AXLE ASSEMBLY(F1)
FRONT AXLE CASING AND AXLE SHAFT(F1)
FRONT REDUCER AND DIFFERENTIAL ASSEMBLY
FRONT REDUCER AND DIFFERENTI AL ASSEMBLY(F1)
FRONT WHEEL HUB AND STEERING KNUCKLE
FRONT WHEEL HUB AND STEERING KNUCKLE(F1)
REAR AXLE ASSEMBLY
REAR AXLE ASSEMBLY(F1)
REAR REDUCER AND DIFFERENTIAL ASSEMBLY
SPARETIRE REGULATOR ASSEMBLY
LOWER CONTROL ARM ASSEMBLY
UPPER CONTROL ARM ASSEMBLY AND TORSION BAR
UPPER/LOWER CONTROL ARM (F1)
STABILIZER BAR
FRONT STABILIZER BAR (F1)
REAR SUSPENSI ON ASSEMBLY
REAR COILSPRING ASSEMBLY AND SHOCK ABSORBER ASSEMBLY
REAR SUSPENSION ASSEMBLY (F1)
STEERING WHEEL ASSEMBLY
STEERING APPARATUS
POWER STEERING PUMP ASSEMBLY
STEERING TIEROD AND STEERING GEAR
INTEGRAL POWER STEERING GEAR (F1)
WHEEL ASSEMBLY
BRAKING LINE UNIT
BRAKE AND CLUTCH PEDAL ASSEMBLY
BRAKE CALIPER ASSEMBLY
FRONT BRAKE ASSEMBLY (F1)
REAR BRAKE ASSEMBLY
REAR BRAKE ASSEMBLY (F1)
VACUUM BOOSTER AND BRAKE MASTER CYLINDER ASSEMBLY
PARKING BRAKE CONTROLLER ASSEMBLY
LOAD-SENSING PROPORTIONING VALVE ASSEMBLY
ENGINE MUDGUARD
FRAME ASSEMBLY
BODY MOUNT ASSEMBLY
INSTRUMENT PANEL ASSEMBLY (1)
INSTRUMENT PANEL TRIM PANEL
INSTRUMENT PANEL ASSEMBLY (2)
INSTRUMENT PANEL REINFORCEMENT MEMBER
LEFT A PILLAR ASSEMBLY
RIGHT A PILLAR ASSEMBLY
LEFT B PILLAR ASSEMBLY
RGHT B PILLAR ASSEMBLY
LEFT REAR BODY SIDE (1) - REAR BODY SIDE OUTER PANEL
RIGHT REAR BODY SIDE (1)- REAR BODY SIDE OUTER PANEL
REAR BODY SIDE (2) - SPARE TIRE AND SIDE WINDOW ACCESSORIES
REAR BODY SIDE (3) - FUEL FILLER DOOR ACCESSORIES AND MUDGUARD
REAR BODY SIDE( 4)- LEFT REAR BODY SIDE TRIM PLATE
REAR BODY SIDE (4)- RIGHT REAR BODY SIDE TRIM PLATE
LEFT BODY SIDE UPPER AND LOWER RAIL
RIGHT BODY SIDE UPPER AND LOWER RAIL
ROOF PANEL AND ROOF RACK ASSEMBLY
ROOF LINER AND ACCESSORIES
FRONT BUMPER (1)
FRONT BUMPER (2)
DOOR SIDE STEP
REAR BUMPER (1)
REAR BUMPER (2)
SPARE TIRE BRACKET ASSEMBLY (1)
SPARE TIRE BRACKET ASSEMBLY (2)
SPARE TIRE COVER ASSEMBLY
FLOOR (1) - FRONT FLOOR
FLOOR (2) - FRONT FLOOR
FLOOR (3) - REAR FLOOR
FLOOR (4) - CARPET
FLOOR (5) - FLOOR CONSOLE AND ACCESSORIES
FRONT WALL (1) – FRONT VENTLID AND FRONT WALL UPPER PARTS ASSEMBLY
FRONT WALL (2) – FRONT VENTLID AND FRONT WALL UPPER PARTS ASSEMBLY
FRONT WINDSHIELD AND ACCESSORIES
FRONT WALL ASSEMBLY
LEFT FRONT DOOR ASSEMBLY
RIGHT FRONT DOOR ASSEMBLY
LEFT REAR DOOR ASSEMBLY
RIGHT REAR DOOR ASSEMBLY
DOOR UPPER AND LOWER HINGE ASSEMBLY
LEFT DOOR INNER TRIM PANEL
RIGHT DOOR INNER TRIM PANEL
RADIATOR BRACKET ASSEMBLY (1)
RADIATOR BRACKET ASSEMBLY (2)
RADIATOR BRACKET ASSEMBLY (3)
HEAT RADIATOR COWL
ENGINE HOOD ASSEMBLY (1)
ENGINE HOOD ASSEMBLY (2)
FENDER ASSEMBLY (1)
FENDER ASSEMBLY (2)
MUDGUARD ASSEMBLY
FRONG ROW SEATS ASSEMBLY
REAR ROW SEATS ASSEMBLY
FRONT ROW SEAT BELT ASSEMBLY
REAR ROW SEAT BELT ASSEMBLY
WIPER ASSEMBLY
REAR WIPER ASSEMBLY
REAR ROOF MEMBER TRIM PANEL AND REAR CEILING LAMP
WINDSHIELD WASHER ASSEMBLY
BATTERY ASSEMBLY
LAMP (1)
LAMP (2)
LAMP (3)
FRONT DOOR LOCK ASSEMBLY
REAR DOOR LOCK ASSEMBLY
BACK SIDE DOOR LOCK ASSEMBLY
TAIL DOOR WINDOW REGULATOR AND LOCK ASSBMBLY
POWER WINDOW REGULATOR ASSEMBLY
ELECTRICAL EQUIPMENT (1)
ELECTRICAL EQUIPMENT (2)
ELECTRICAL EQUIPMENT (3)
HEAT CONDENSER FAN ASSEMBLY
LOUD SPEAKER ASSEMBLY
INSTRUMENT CONTROL CONSOLE (1)
INSTRUMENT CONTROL CONSOLE (2)
COMBINATION INSTRUMENT ASSEMBLY
WIRING HARNESS ARRANGEMENT (1)
WIRING HARNESS ARRANGEMENT (2)
WIRING HARNESS ARRANGEMENT (3)
WIRING HARNESS ARRANGEMENT (4)
TAIL DOOR (1)
TAIL DOOR (2)
TAIL DOOR (3)
TAIL DOOR (4)
TAIL DOOR UPPER FRAME ASSEMBLY
TAIL SPOILER
A/C (1) – CONDENSER AND RECEIVER DRYER
A/C (2) – COMPRESSOR ASSEMBLY
A/C (3) – EVAPORATOR AND BLOWER
A/C (4) – AIR TUNNEL
A/C (5) – HEAT RADIATOR ASSEMBLY
A/C (6) – CONTROLLER ASSEMBLY
VEHICLE LOGO
TOOLS ASSEMBLY
DECORATION RIBBON
1
2
3
3
3
4
4
5
5
5
6
7
7
8
9
10
11
12
13
14
15
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
1201100-F00
FRONT SECTION ASSEMBLY, EXHAUST PIPE
2
1205020-E01-B2
CATALYTIC CONVERTER ASSEMBLY
3
1201300-F02
MIDDLE SECTION ASSEMBLY, EXHAUST PIPE
3
1201300-F00-B1
MIDDLE SECTION ASSEMBLY, EXHAUST PIPE
3
1201300-F05
MIDDLE SECTION ASSEMBLY, EXHAUST PIPE
4
1201210-F00
MUFFLER ASSEMBLY
4
1201210-F00-B1
MUFFLER ASSEMBLY
5
1201011-D01
TWO-HOLE RUBBER PIECE
6
1201204-F00
HANGER BRACKET, NO.4, MUFFLER
7
1200015-K00
THREE-HOLE RUBBER PIECE
7
1201012-D01
THREE-HOLE RUBBER PIECE
8
1201205-F00
MUFFLER CLIP HOOK
9
1201206-D17
MUFFLER CLIP
10
1201202-D01
HANGER BRACKET, NO.2, EXHAUST PIPE
11
1008014-E00
Inlet/exhaust pipe double end bolt
12
1008070A-E00
Outlet pipe export sealing gasket set
13
36709700U-E01
OXYGEN SENSOR
14
1008015-E00
Outlet pipe export screw
15
1201100-F00-B1
FRONT SECTION ASSEMBLY, EXHAUST PIPE
15
1201100-F04
FRONT SECTION ASSEMBLY, EXHAUST PIPE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
