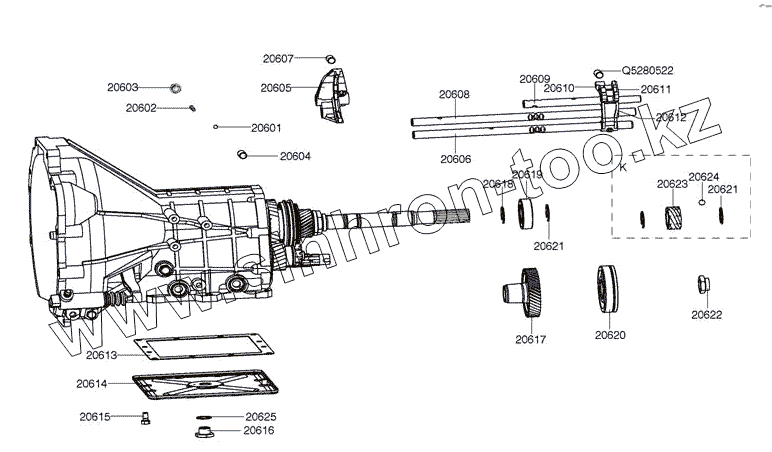

Каталог запасных частей к технике: Great Wall GW-Hower. Штоки КПП
Q5280522
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| Q5280522 | Q5280522 | PIN 5x23 | |
| 1 | 1703018-K00 | STEEL BALL | |
| 2 | 1702403-K00 | LOCK SPRING | |
| 3 | 1702404-K00 | LOCK SCREW PLUG | |
| 4 | 1702401-K00 | INTERLOCKING PIN | |
| 5 | 1702302-K00 | 5TH AND REVERSE GEAR SHIFTING FORK | |
| 6 | 1702101-K00 | 1ST AND 2ND GEAR SHIFTING FORK SHAFT | |
| 7 | 1703016-K00 | ELASTIC CILINDRICAL PIN | |
| 8 | 1702201-K00 | 3RD AND 4TH GEAR SHIFTING FORK SHAFT | |
| 9 | 1702301-K00 | 5TH AND REVERSE GEAR SHIFTING FORK SHAFT | |
| 10 | 1702303-K00 | 5TH AND REVERSE SHIFTING PIECE | |
| 11 | 1702203-K00 | 3RD AND 4TH GEAR SHIFTING PIECE | |
| 12 | 1702104-K00 | 1ST AND 2ND GEAR SHIFTING PIECE | |
| 13 | 1701014-K00 | ||
| 14 | 1701010-K00 | LOWER COVER BOARD ASSEMBLY | |
| 15 | 1701015-K00 | HEXAGON BOLT ASSEMBLY | |
| 16 | 1701070-K00 | OIL DRAIN SCREW PLUG ASSEMBLY | |
| 17 | 1701430-K00 | 5TH GEAR DRIVE GEAR | |
| 18 | 1701203-K00 | SHAFT RETAINER RING 24 | |
| 19 | 1701205-K00 | BALL BEARING | |
| 20 | 1701431-K00 | BALL BEARING | |
| 21 | 1701204-K00 | SHAFT RETAINER RING 29 | |
| 22 | 1701432-K00 | LOCK NUT | |
| 23 | 1701298-K00 | ODOMETER DRIVEN GEAR | |
| 24 | 1701207-K00 | STEEL BALL | |
| 25 | 1701008-K00 | ALUMINUM GASKET 19 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
