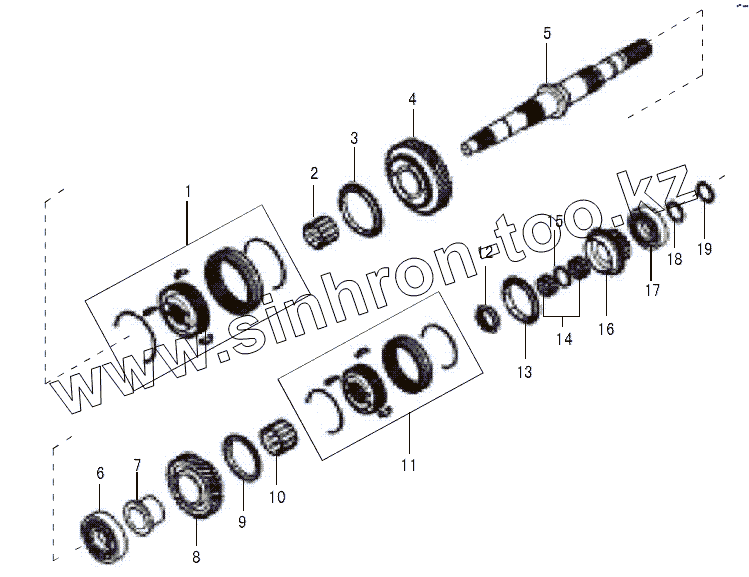

Позиция на иллюстрации
Заводской номер детали
Название детали
1
GPD96172600
1ST 2ND CLUTCH HUB
2
GK71E17235A
NEEDLE BEARING
3
GK71E17245A
1ST SYNCHRONIZER RING
4
GPD96172700
1ST GEAR ASSEMBLY
5
GCH01172210
MAIN SHAFT
6
GPD96172950
BALL BEARING
7
GK71E172840
REVERSE GEAR CASE
8
GPD9617281A
REVERSE GEAR ASSEMBLY
9
GW50117725A
REVERSE SYNCHRONIZER RING
10
GK71E17234A
NEEDLE BEARING
11
GPD9617620A
5TH R CLUTCH HUB
12
GK71E176290
LOCK NUT
13
GK43A177250
5TH SYNCHRONIZER RING
14
GK71E17293A
NEEDLE BEARING
15
GK71E172940
SPACER
16
GPD9617290A
5TH GEAR ASSEMBLY
17
GK71E172040
BALL BEARING
18
GK67B173060
SPRING RETAINER RING
19
GK67B179870
ORING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
