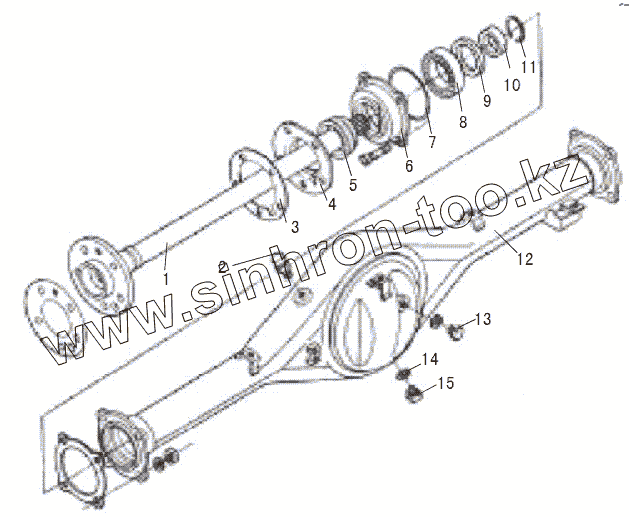

Каталог запасных частей к технике: Great Wall GW-Deer. REAR AXLE HOUSING AND AXLE SHAFT
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2400000-D01-B1 | 2400000-D01-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D70-B1 | 2400000-D70-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D70 | 2400000-D70 | REAR AXLE ASSEMBLY | |
| 2400000-D07-A1 | 2400000-D07-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D07-B1 | 2400000-D07-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D08-B1 | 2400000-D08-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D74-B1 | 2400000-D74-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D74 | 2400000-D74 | REAR AXLE ASSEMBLY | |
| 2400000-D72-B1 | 2400000-D72-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D72 | 2400000-D72 | REAR AXLE ASSEMBLY | |
| 2400000-D05-A1 | 2400000-D05-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D08-B1 | 2400000-D08-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D08-A1 | 2400000-D08-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D64-B1 | 2400000-D64-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D62-B1 | 2400000-D62-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D18 | 2400000-D18 | REAR AXLE ASSEMBLY | |
| 2400000-D19-A1 | 2400000-D19-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D17-B1 | 2400000-D17-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D17-A1 | 2400000-D17-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D16-B1 | 2400000-D16-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D16-A1 | 2400000-D16-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D03 | 2400000-D03 | REAR AXLE ASSEMBLY | |
| 2400000-D04-A1 | 2400000-D04-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D02-B1 | 2400000-D02-B1 | REAR AXLE ASSEMBLY | |
| 2400000-D02-A1 | 2400000-D02-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D01-A1 | 2400000-D01-A1 | REAR AXLE ASSEMBLY | |
| 2400000-D06-A1 | 2400000-D06-A1 | REAR AXLE ASSEMBLY | |
| 1 | 2403101-D01 | AXLE SHAFT | |
| 2 | 2400030-D01 | BREATHER VALVE ASSEMBLY | |
| 3 | 2403109-D01 | GASKET, OIL RETAINER PAN | |
| 4 | 2403108-D01 | OIL RETAINER PANOUTER OIL SEAL | |
| 5 | 2403120-D01 | OUTER OIL SEAL ASSEMBLY, REAR WHEEL BEARING | |
| 6 | 2403102-D01 | BEARING SEAT, REAR WHEEL | |
| 7 | 2403107-D01 | O-RING | |
| 8 | 4G18308 | 4G18308 GROOVED BALL BEARING | |
| 9 | 2400050-D01 | INNER OIL SEAL ASSEMBLY, REAR WHEEL BEARING | |
| 10 | 2403105-D01 | INNER OIL SEAL SEAT, REAR WHEEL BEARING | |
| 11 | 2403106-D01 | RETAINER RING, SHAFT | |
| 12 | 2401000-D07 | REAR AXLE HOUSING ASSEMBLY | |
| 12 | 2401000-D01 | REAR AXLE HOUSING ASSEMBLY | |
| 13 | 2400011-D01 | FILLING PLUG | |
| 14 | 2400012-D01 | WASHER | |
| 15 | 2400020-D01 | DRAIN PLUG ASSEMBLY |
