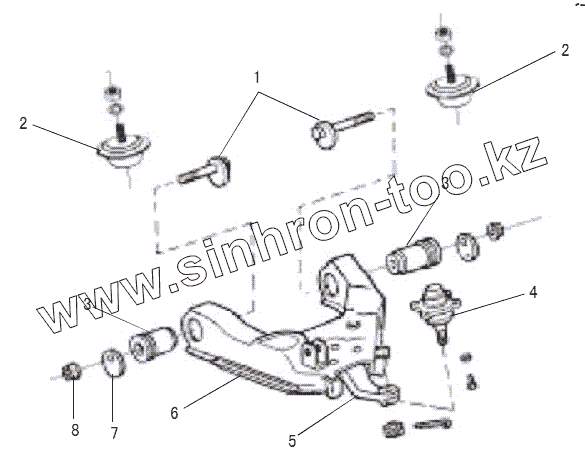

2904300-F00
2904400-F00
1
2
2
3
3
4
5
6
6
7
8
Позиция на иллюстрации
Заводской номер детали
Название детали
2904300-F00
2904300-F00
LOWER CONTROL ARM ASSEMBLY, LH
2904400-F00
2904400-F00
LOWER CONTROL ARM ASSEMBLY, RH
1
2904340-F00
BOLT, LOWER CONTROL ARM SHAFT
2
2904350-F00
JOUNCE BUMPERLOWER CONTROL ARM
3
2904330-F00
BUSHING ASSEMBLY, LOWER CONTROL ARM
4
3001150-F00
BALL STUD, LOWER ARM
5
2904322-F00
BALL STUD SEAT, LOWER CONTROL ARM
6
2904310-F00
LOWER CONTROL ARM WELDMENT ASSEMBLY, LH
6
2904320-F00
LOWER CONTROL ARM WELDMENT ASSEMBLY, RH
7
2904343-F00
OFFSET OUTSIDE WASHER- LOWER CONTROL ARM SHAFT
8
2904342-F00
NUT, LOWER CONTROL ARM SHAFT
