Каталог запасных частей к технике: Great Wall GW-Deer. ENGINE HOOD ASSEMBLY (2)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BYD Chevrolet Daewoo Geely Great Wall Hyundai Lifan Tata АЗЛК ВАЗ ГАЗ ЗАЗ ЗИЛ ИЖ ЛуАЗ РАФ УАЗ

Модель Не выбрано GW-Deer (2005) GW-Hower (2006) GW-Safe F1 (2009) GW-Sailor (2007)

Схема > Не выбрано ENGINE MOUNT AIR FILTER ASSEMBLY ACCELERATOR OPERATING DEVICE FUEL SUPPLY SYSTEM (1) - FUEL TANK ASSEMBLY FUEL SUPPLY SYSTEM (2) - DIESEL 4D28 FUEL SUPPLY SYSTEM (3) - DIESEL 4L68 FUEL SUPPLY SYSTEM (4) — CARBURETOR TYPE FUEL SUPPLY SYSTEM (5) - ELECTRONIC FUEL INJECTION PIPELINE EXHAUST DEVICE - CARBURETOR SERIES EXHAUST DEVICE - ELECTRIC INJECTION SERIES EXHAUST DEVICE-DIESEL SERIES EXHAUST AIR SYSTEM DEVICE - DIESEL SERIES RADIATOR ASSEMBLY EXPANSION TANK ASSEMBLY CLUTCH CONTROR MECHANISM TRANSMISSION — TAGC SSBAT ZOMAX (1) TRANSMISSION — TAGC SSBAT ZOMAX (2) TRANSMISSION — TAGC SSBAT ZOMAX (3) TRANSMISSION — TAGC SSBAT ZOMAX (4) TRANSMISSION — TAGC SSBAT ZOMAX (5) TRANSMISSION — HANSHIN (1) TRANSMISSION - HANSHIN (2) TRANSMISSION — HANSHIN (3) TRANSMISSION — HANSHIN (4) TRANSMISSION — HANSHIN (5) TRANSMISSION — HANSHIN (6) TRANSMISSION — HANSHIN (7) TRANSMISSION — HANSHIN (8) TRANSFER CASE — BW (1) TRANSFER CASE — BW (2) TRANSFER CASE — BW (3) PROPELLER SHAFT ASSEMBLY (1) PROPELLER SHAFT ASSEMBLY (2) REAR AXLE HOUSING AND AXLE SHAFT REDUCER AND DIFFERNTIAL ASSEMBLY,REAR ALXE FRONT DRIVE AXLE ASSEMBLY FRONT REDUCER AND DIFFERENTIAL ASSEMBLY SPARETIRE REGULATOR ASSEMBLY STEERING KNUCKLE ASSEMBLY 4WD SERIES STEERING KNUCKLE AND WHEEL BRAKE ASSEMBLY FRONT SUSPENSION LEFT BRACKET AND STRUT FRONT SUSPENSION RIGHT BRACKET AND STRUT LEFT LOWER CONTROL ARM AND TORSION BAR ASSEMBLY RIGHT BELOW ARM AND TORSION BAR ASSEMBLY LOWER CONTROL ARM ASSEMBLY UPPER CONTROL ARM MOUNTING ASSEMBLY (1) UPPER CONTROL ARM MOUNTING ASSEMBLY (2) STABILIZER BAR LEFT REAR SUSPENSION ASSEMBLY RIGHT REAR SUSPENSION ASSEMBLY STEERING APPARATUS (1) STEERING APPARATUS (2) POWER STEERING PUMP ASSEMBLY STEERING WHEEL ASSEMBLY BRAKING LINE DEVICE WHEEL ASSEMBLY BRAKE AND CLUTCH PEDAL ASSEMBLY LEFT STEERING AND WHEEL HUB BRAKE ASSEMBLY RIGHT STEERING AND WHEEL HUB BRAKE ASSEMBLY 4WD FRONT BRAKE CALIPER ASSEMBLY LEFT REAR BRAKE ASSEMBLY (1) RIGHT REAR BRAKE ASSEMBLY (1) LEFT REAR BRAKE ASSEMBLY (2) VACUUM BOOSTER AND BRAKE MASTER CYLINDER ASSEMBLY LOAD-SENSING PROPORTIONING VALVE ASSEMBLY PARKING BRAKE CONTROLLER ASSEMBLY FRAME ASSEMBLY (1) FRAME ASSEMBLY (2) BODY MOUNT ASSEMBLY INSTRUMENT PANEL ASSEMBLY (1) INSTRUMENT PANEL TRIM PANEL INSTUMENT PANEL INSTRUMENT PANEL ASSEMBLY (2) INSTRUMENT PANEL REINFORCEMENT MEMBER MEMBER KIT LEFT A PILLAR ASSEMBLY RIGHT A PILLAR ASSEMBLY LEFT B PILLAR ASSEMBLY RIGHT B PILLAR ASSEMBLY LEFT C PILLAR ASSEMBLY RIGHT C PILLAR ASSEMBLY FUEL TANK CAP COVER PLATE ASSEMBLY LEFT BODY SIDE UPPER AND LOWER RAIL RIGHT SIDE WALL UPPER AND LOWER BEAM REAR WALL ASSEMBLY LEFT PILLAR DECORATE PLATE AND BACK SIDE WINDOW RIGHT PILLAR DECORATE PLATE AND BACK SIDE WINDOW ROOF PANEL ASSEMBLY (1) ROOF PANEL ASSEMBLY (2) FRONT BUMPER WITH BRACKET ASSEMBLY REAR BUMPER ASSEMBLY FLOOR (1) - FRONT FLOOR FLOOR (2) - FRONT FLOOR FLOOR (3) - REAR FLOOR FLOOR CONSOLE (4) - FLOOR CONSOLE ASSEMBLY AND ACCESSORIES FRONT WALL (1) - FRONT VENTILATION WINDOW PANEL AND FRONT WALL UPPER ASSEMBLY FRONT WALL (2) - FRONT VENTILATION WINDOW PANEL AND FRONT WALL UPPER ASSEMBLY FRONT WINDSHEILD AND ACCESSORIES FRON WELL ASSEMBLY LEFT FRONT DOOR ASSEMBLY RIGHT FRONT DOOR ASSEMBLY LEFT BACK DOOR ASSEMBLY RIGHT BACK DOOR ASSEMBLY DOOR UPPER AND LOWER HINGE ASSEMBLY FRONT DOOR TRIM PANEL (1) RIGHT FRONT DOOR TRIM PANEL (1) FRONT DOOR TRIM PANEL (2) FRONT DOOR TRIM PANEL (3) RIGHT FRONT DOOR TRIM PANEL (3) RADIATOR BRACKET ASSEMBLY (1) RADIATOR BRACKET ASSEMBLY (2) RADIATOR GRILL RADIATOR GRILL AND BUMPER ASSEMBLY ENGINE HOOD ASSEMBLY (1) ENGINE HOOD ASSEMBLY (2) FRONT FENDER ASSEMBLY (1) RIGHT FRONT FENDER ASSEMBLY (1) FRONT FENDER ASSEMBLY (2) MUDGUARD ASSEMBLY FRONT ROW SEATS ASSEMBLY REAR ROW SEATS ASSEMBLY SEAT BELT ASSEMBLY CARGO BODY ASSEMBLY CARGO BODY TAIL GATE ASSEMBLY ANTISCUFFRIB ASSEMBLY AND LABEL CARGO BODY ASSEMBLY TARPAULIN ASSEMBLY (1) TARPAULIN ASSEMBLY (2) TARPAULIN BACK WINDOW ASSEMBLY WIPER ASSEMBLY WINDSHIELD WASHER ASSEMBLY BATTERY ASSEMBLY LAMP (1) LAMP (2) LAMP (3) FRONT SIDE DOOR LOCK AND HANDLE ASSEMBLY FRONT SIDE DOOR LOCK AND HANDLE ASSEMBLY REAR SIDE DOOR LOCK AND HANDLE ASSEMBLY REAR SIDE DOOR LOCK AND HANDLE ASSEMBLY MANUAL - OPERA TED WINDOW REGULATOR POWER WINDOW REGULATOR ASSENBLY ELECTRICAL EQUIPMENT (1) ELECTRICAL EQUIPMENT (2) ELECTRICAL EQUIPMENT (3) ANTENNA ASSEMBLY CONTROL PANEL (1) CONTROL PANEL (2) COMBINATION INSTRUMENT ASSEMBLY COMBINATION SWITCH ASSEMBLY BACK - UP RADAR ASSEMBLY CONDENSER ELECTROMAGNETIC FAN ASSEMBLY WIRING HARNESS ARRANGEMENT (1) WIRING HARNESS ARRANGEMENT (2) WIRING HARNESS ARRANGEMENT (3) A/C (l) — CONDENSER AND RECEIVER DRYER KIT А/С (2) — REFRIGERATION COMPRESSOR ASSEMBLY A/C (3) — EVAPORATOR AND BLOWER A/C (4) — AIR TUNNEL A/C (5) — HEAT RADIATOR ASSEMBLY A/C (6) — CONTROLLER ASSEMBLY INCAR TOOL DECORATION RIBBON COLOR COMPARISON OF EACH STYLE

1

2

3

4

5

6

7

8

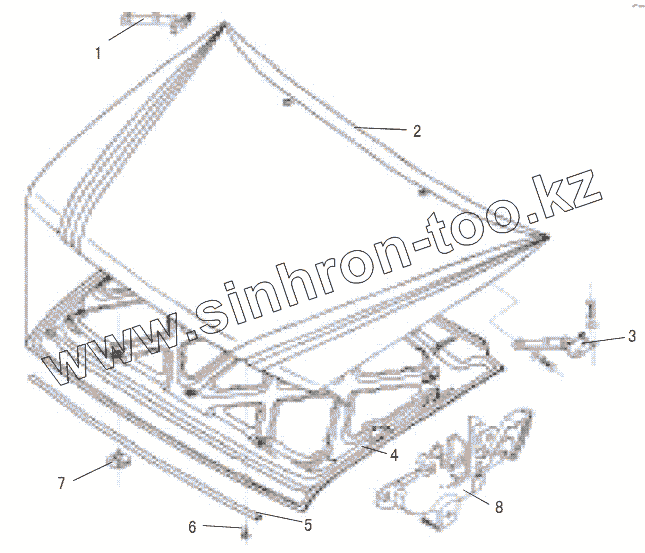

Позиция на иллюстрации	Заводской номер детали		Название детали
1	8402018-D01		ENGINE HOOD HINGE, RH
2	8402020-D01		ENGINE HOOD ASSEMBLY
3	8402017-D01		ENGINE HOOD HINGE, LH
4	8402011-D01		HEAT INSULATOR, ENGINE HOOD
5	8402013-D01		SEALING STRIP, ENGINE HOOD
6	8402014-D01		SEALING STRIP CLIP, ENGINE HOOD
7	8402012-D01		CLIP, HEAT INSULATOR, ENGINE HOOD
8	8402030-D01		ENGINE HOOD LOCK ASSEMBLY

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
