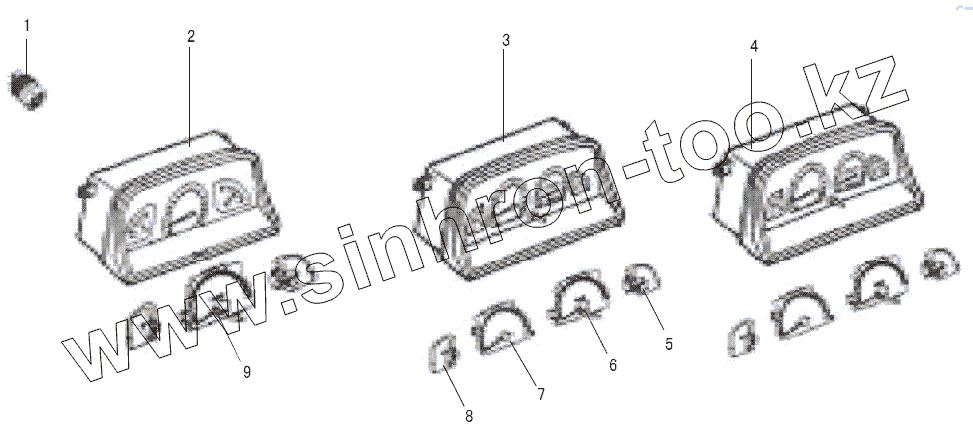

Каталог запасных частей к технике: Great Wall GW-Deer. COMBINATION INSTRUMENT ASSEMBLY
1
1
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
5
5
6
6
6
7
7
8
8
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3820111-D07 | ODOMETER SENSER | |
| 1 | 3820111-D01 | ODOMETER SENSER (ELECTRONIC ODOMETER) | |
| 2 | 3820100-D01-A3 | COMBINATION INSTRUMENT ASSEMBLY | |
| 2 | 3820100-D01-A3 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D17-A1 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D62 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D22-A7 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D17 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D01-A6 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D01-A9 | COMBINED APPARATUS ASSEMBLY | |
| 3 | 3820100-D01-A5 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D22-A3 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D22-A2 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D01 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D01-A8 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D01-B1 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D01-A4 | COMBINATION INSTRUMENT ASSEMBLY | |
| 3 | 3820100-D75 | COMBINATION INSTRUMENT ASSEMBLY | |
| 4 | 3820100-D17-A3 | COMBINATION INSTRUMENT ASSEMBLY | |
| 4 | 3820100-D17-A2 | COMBINATION INSTRUMENT ASSEMBLY | |
| 4 | 3820100-D22 | COMBINATION INSTRUMENT ASSEMBLY | |
| 5 | 3820140-D22-A2 | FULE GAUGE ASSEMBLY | |
| 5 | 3820140-D22-C1 | FULE GAUGE ASSEMBLY | |
| 6 | 3820100-D17-A3 | COMBINATION INSTRUMENT ASSEMBLY | |
| 6 | 3820110-D22-A2 | ODOMETER ASSEMBLY | |
| 6 | 3820110-D22-C1 | ODOMETER ASSEMBLY | |
| 7 | 3820120-D22-A2 | TACHOMETER ASSEMBLY | |
| 7 | 3820120-D22-C1 | TACHOMETER ASSEMBLY | |
| 8 | 3820130-D22-A2 | WATER TEMPERATURE GAUGE ASSEMBLY | |
| 8 | 3820130-D22-C1 | WATER TEMPERATURE GAUGE ASSEMBLY | |
| 9 | 3820130-D22-A5 | ODOMETER ASSEMBLY |
