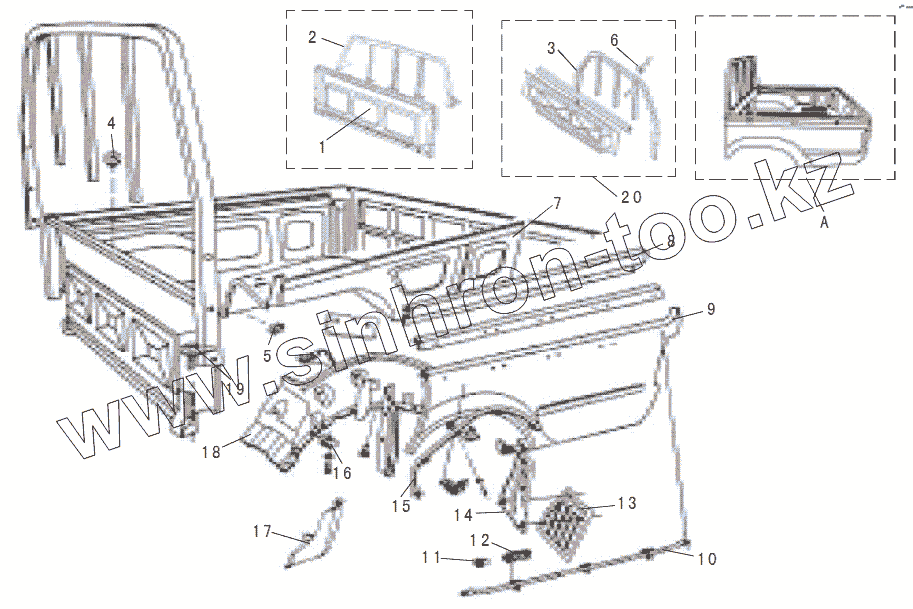

Каталог запасных частей к технике: Great Wall GW-Deer. CARGO BODY ASSEMBLY
A
A
A
A
A
A
A
1
2
3
4
4
5
6
7
7
7
7
7
7
8
8
8
8
9
9
9
9
10
10
10
11
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| A | 8500000-D01 | CARGO BODY ASSEMBLY | |
| A | 8500000-D01 | CARGO BODY ASSEMBLY | |
| A | 8500000-D23 | CARGO BODY ASSEMBLY | |
| A | 8500000-D17 | CARGO BODY ASSEMBLY | |
| A | 8500000-D24 | CARGO BODY ASSEMBLY | |
| A | 8500000-D75 | CARGO BODY ASSEMBLY | |
| A | 8500200-D06 | CARGO BODY ASSEMBLY | |
| 1 | 8504100-D17 | FRONT BOARD ASSEMBLY, CARGO BODY | |
| 2 | 8509300-D17 | CARGO BODY FENDER ASSEMBLY | |
| 3 | 8509030-D06 | CARGO BODY FENDER ASSEMBLY | |
| 4 | 8501018-D01 | RUBBER PLUG, CARGO BODY CARGO FLOOR | |
| 4 | 8500011-D17 | RUBBER PLUG, CARGO BODY CARGO FLOOR | |
| 5 | 8501019-D01 | CUSHION BLOCK | |
| 6 | 8504011-D01 | CHANNEL BODY | |
| 7 | 8502130-D01 | INNER PANEL ASSEMBLY, CARGO BODY SIDE GATE, LH | |
| 7 | 8502030-D17 | INNER PANEL ASSEMBLY, CARGO BODY SIDE GATE, LH | |
| 7 | 8502030-D75 | INNER PANEL ASSEMBLY, CARGO BODY SIDE GATE, LH | |
| 7 | 8502140-D01 | INNER PANEL ASSEMBLY, CARGO BODY SIDE GATE, RH | |
| 7 | 8502040-D17 | INNER PANEL ASSEMBLY, CARGO BODY SIDE GATE, RH | |
| 7 | 8502040-D75 | INNER PANEL ASSEMBLY, CARGO BODY SIDE GATE, RH | |
| 8 | 8502131-D01 | connecting plate, cargo body side GATE, LH | |
| 8 | 8502511-D17 | connecting plate, cargo body side GATE, LH | |
| 8 | 8502132-D01 | connecting plate, cargo body side GATE, RH | |
| 8 | 8502512-D17 | connecting plate, cargo body side GATE, RH | |
| 9 | 8502101-D01 | OUTER PANEL, CARGO BODY SIDE GATE, LH | |
| 9 | 8502101-D17 | OUTER PANEL, CARGO BODY SIDE GATE, LH | |
| 9 | 8502102-D01 | outer panel, cargo body side gate, rh | |
| 9 | 8502102-D17 | OUTER PANEL, CARGO BODY SIDE GATE, RH | |
| 10 | 8509100-D01 | OUTSIDE ROPE HOOK ASSEMBLY, CARGO BODY, LH | |
| 10 | 8509100-D01 | OUTSIDE ROPE HOOK ASSEMBLY, CARGO BODY, LH | |
| 10 | 8509100-D17 | OUTSIDE ROPE HOOK ASSEMBLY, CARGO BODY, LH | |
| 11 | 8509012-D01 | SETTING CUSHION NO.2, OUTSIDE ROPE HOOK | |
| 12 | 8509012-D01 | SETTING CUSHION NO.2, OUTSIDE ROPE HOOK | |
| 13 | 8511013-D01 | REAR WHEEL MUDGUARD, LH | |
| 13 | 8511014-D01 | REAR WHEEL MUDGUARD, RH | |
| 13 | 8511013-D07 | REAR WHEEL MUDGUARD, LH | |
| 13 | 8511014-D07 | REAR WHEEL MUDGUARD, RH | |
| 14 | 8511017-D01 | BRACKET, MUDGUARD, LH | |
| 14 | 8511018-D01 | BRACKET, MUDGUARD, RH | |
| 15 | 5006013-D01 | WHEEL OPENING MOULDING, REAR, LH | |
| 15 | 5006014-D01 | WHEEL OPENING MOULDING, REAR, RH | |
| 16 | 8403035-D01 | PLASTIC CLIP | |
| 16 | 8403034-D01 | PLASTIC CLIP | |
| 17 | 5006031-D17-0803 | END COVER, WHEEL ARCH, CARGO BODY, LH | |
| 17 | 5006032-D17-0803 | END COVER, WHEEL ARCH, CARGO BODY, RH | |
| 18 | 8511011-D01 | REAR WHEEL SPLASH GUARD, LH | |
| 18 | 8511012-D01 | REAR WHEEL SPLASH GUARD, RH | |
| 18 | 8511011-D17 | REAR WHEEL SPLASH GUARD, LH | |
| 18 | 8511012-D17 | REAR WHEEL SPLASH GUARD, RH | |
| 19 | 8501017-D01 | SPECIAL BOLT | |
| 20 | 8504100-D01 | FRONT BOARD ASSEMBLY, CARGO BODY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
