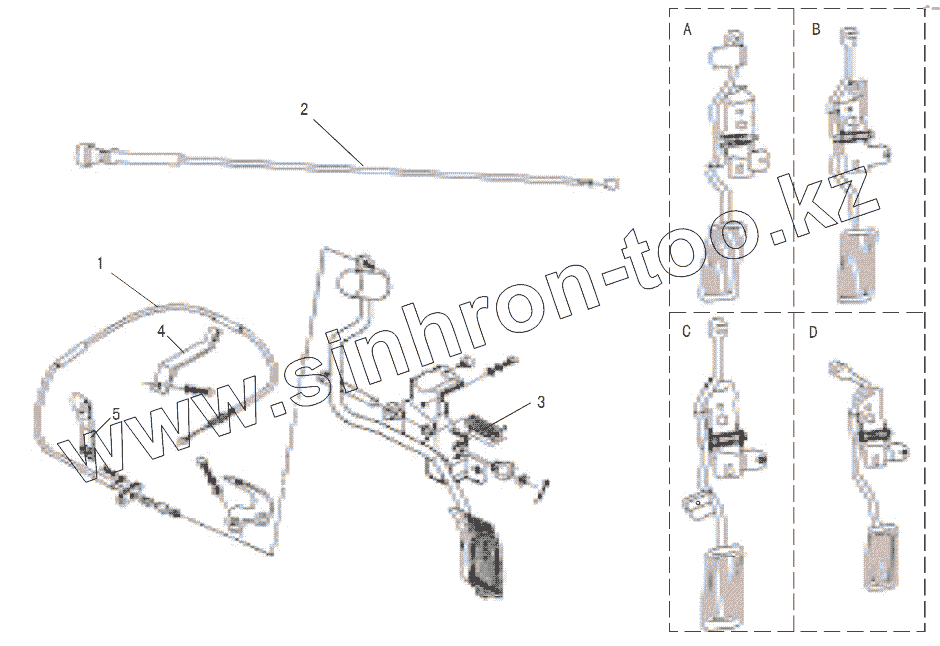

ACCELERATOR OPERATING DEVICE
Каталог запасных частей к технике: Great Wall GW-Deer. ACCELERATOR OPERATING DEVICE
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BYD
Chevrolet
Daewoo
Geely
Great Wall
Hyundai
Lifan
Tata
АЗЛК
ВАЗ
ГАЗ
ЗАЗ
ЗИЛ
ИЖ
ЛуАЗ
РАФ
УАЗ
Модель
Не выбрано
GW-Deer (2005)
GW-Hower (2006)
GW-Safe F1 (2009)
GW-Sailor (2007)
Схема
>
Не выбрано
ENGINE MOUNT
AIR FILTER ASSEMBLY
ACCELERATOR OPERATING DEVICE
FUEL SUPPLY SYSTEM (1) - FUEL TANK ASSEMBLY
FUEL SUPPLY SYSTEM (2) - DIESEL 4D28
FUEL SUPPLY SYSTEM (3) - DIESEL 4L68
FUEL SUPPLY SYSTEM (4) — CARBURETOR TYPE
FUEL SUPPLY SYSTEM (5) - ELECTRONIC FUEL INJECTION PIPELINE
EXHAUST DEVICE - CARBURETOR SERIES
EXHAUST DEVICE - ELECTRIC INJECTION SERIES
EXHAUST DEVICE-DIESEL SERIES
EXHAUST AIR SYSTEM DEVICE - DIESEL SERIES
RADIATOR ASSEMBLY
EXPANSION TANK ASSEMBLY
CLUTCH CONTROR MECHANISM
TRANSMISSION — TAGC SSBAT ZOMAX (1)
TRANSMISSION — TAGC SSBAT ZOMAX (2)
TRANSMISSION — TAGC SSBAT ZOMAX (3)
TRANSMISSION — TAGC SSBAT ZOMAX (4)
TRANSMISSION — TAGC SSBAT ZOMAX (5)
TRANSMISSION — HANSHIN (1)
TRANSMISSION - HANSHIN (2)
TRANSMISSION — HANSHIN (3)
TRANSMISSION — HANSHIN (4)
TRANSMISSION — HANSHIN (5)
TRANSMISSION — HANSHIN (6)
TRANSMISSION — HANSHIN (7)
TRANSMISSION — HANSHIN (8)
TRANSFER CASE — BW (1)
TRANSFER CASE — BW (2)
TRANSFER CASE — BW (3)
PROPELLER SHAFT ASSEMBLY (1)
PROPELLER SHAFT ASSEMBLY (2)
REAR AXLE HOUSING AND AXLE SHAFT
REDUCER AND DIFFERNTIAL ASSEMBLY,REAR ALXE
FRONT DRIVE AXLE ASSEMBLY
FRONT REDUCER AND DIFFERENTIAL ASSEMBLY
SPARETIRE REGULATOR ASSEMBLY
STEERING KNUCKLE ASSEMBLY
4WD SERIES STEERING KNUCKLE AND WHEEL BRAKE ASSEMBLY
FRONT SUSPENSION LEFT BRACKET AND STRUT
FRONT SUSPENSION RIGHT BRACKET AND STRUT
LEFT LOWER CONTROL ARM AND TORSION BAR ASSEMBLY
RIGHT BELOW ARM AND TORSION BAR ASSEMBLY
LOWER CONTROL ARM ASSEMBLY
UPPER CONTROL ARM MOUNTING ASSEMBLY (1)
UPPER CONTROL ARM MOUNTING ASSEMBLY (2)
STABILIZER BAR
LEFT REAR SUSPENSION ASSEMBLY
RIGHT REAR SUSPENSION ASSEMBLY
STEERING APPARATUS (1)
STEERING APPARATUS (2)
POWER STEERING PUMP ASSEMBLY
STEERING WHEEL ASSEMBLY
BRAKING LINE DEVICE
WHEEL ASSEMBLY
BRAKE AND CLUTCH PEDAL ASSEMBLY
LEFT STEERING AND WHEEL HUB BRAKE ASSEMBLY
RIGHT STEERING AND WHEEL HUB BRAKE ASSEMBLY
4WD FRONT BRAKE CALIPER ASSEMBLY
LEFT REAR BRAKE ASSEMBLY (1)
RIGHT REAR BRAKE ASSEMBLY (1)
LEFT REAR BRAKE ASSEMBLY (2)
VACUUM BOOSTER AND BRAKE MASTER CYLINDER ASSEMBLY
LOAD-SENSING PROPORTIONING VALVE ASSEMBLY
PARKING BRAKE CONTROLLER ASSEMBLY
FRAME ASSEMBLY (1)
FRAME ASSEMBLY (2)
BODY MOUNT ASSEMBLY
INSTRUMENT PANEL ASSEMBLY (1)
INSTRUMENT PANEL TRIM PANEL INSTUMENT PANEL
INSTRUMENT PANEL ASSEMBLY (2)
INSTRUMENT PANEL REINFORCEMENT MEMBER MEMBER KIT
LEFT A PILLAR ASSEMBLY
RIGHT A PILLAR ASSEMBLY
LEFT B PILLAR ASSEMBLY
RIGHT B PILLAR ASSEMBLY
LEFT C PILLAR ASSEMBLY
RIGHT C PILLAR ASSEMBLY
FUEL TANK CAP COVER PLATE ASSEMBLY
LEFT BODY SIDE UPPER AND LOWER RAIL
RIGHT SIDE WALL UPPER AND LOWER BEAM
REAR WALL ASSEMBLY
LEFT PILLAR DECORATE PLATE AND BACK SIDE WINDOW
RIGHT PILLAR DECORATE PLATE AND BACK SIDE WINDOW
ROOF PANEL ASSEMBLY (1)
ROOF PANEL ASSEMBLY (2)
FRONT BUMPER WITH BRACKET ASSEMBLY
REAR BUMPER ASSEMBLY
FLOOR (1) - FRONT FLOOR
FLOOR (2) - FRONT FLOOR
FLOOR (3) - REAR FLOOR
FLOOR CONSOLE (4) - FLOOR CONSOLE ASSEMBLY AND ACCESSORIES
FRONT WALL (1) - FRONT VENTILATION WINDOW PANEL AND FRONT WALL UPPER ASSEMBLY
FRONT WALL (2) - FRONT VENTILATION WINDOW PANEL AND FRONT WALL UPPER ASSEMBLY
FRONT WINDSHEILD AND ACCESSORIES
FRON WELL ASSEMBLY
LEFT FRONT DOOR ASSEMBLY
RIGHT FRONT DOOR ASSEMBLY
LEFT BACK DOOR ASSEMBLY
RIGHT BACK DOOR ASSEMBLY
DOOR UPPER AND LOWER HINGE ASSEMBLY
FRONT DOOR TRIM PANEL (1)
RIGHT FRONT DOOR TRIM PANEL (1)
FRONT DOOR TRIM PANEL (2)
FRONT DOOR TRIM PANEL (3)
RIGHT FRONT DOOR TRIM PANEL (3)
RADIATOR BRACKET ASSEMBLY (1)
RADIATOR BRACKET ASSEMBLY (2)
RADIATOR GRILL
RADIATOR GRILL AND BUMPER ASSEMBLY
ENGINE HOOD ASSEMBLY (1)
ENGINE HOOD ASSEMBLY (2)
FRONT FENDER ASSEMBLY (1)
RIGHT FRONT FENDER ASSEMBLY (1)
FRONT FENDER ASSEMBLY (2)
MUDGUARD ASSEMBLY
FRONT ROW SEATS ASSEMBLY
REAR ROW SEATS ASSEMBLY
SEAT BELT ASSEMBLY
CARGO BODY ASSEMBLY
CARGO BODY TAIL GATE ASSEMBLY
ANTISCUFFRIB ASSEMBLY AND LABEL
CARGO BODY ASSEMBLY
TARPAULIN ASSEMBLY (1)
TARPAULIN ASSEMBLY (2)
TARPAULIN BACK WINDOW ASSEMBLY
WIPER ASSEMBLY
WINDSHIELD WASHER ASSEMBLY
BATTERY ASSEMBLY
LAMP (1)
LAMP (2)
LAMP (3)
FRONT SIDE DOOR LOCK AND HANDLE ASSEMBLY
FRONT SIDE DOOR LOCK AND HANDLE ASSEMBLY
REAR SIDE DOOR LOCK AND HANDLE ASSEMBLY
REAR SIDE DOOR LOCK AND HANDLE ASSEMBLY
MANUAL - OPERA TED WINDOW REGULATOR
POWER WINDOW REGULATOR ASSENBLY
ELECTRICAL EQUIPMENT (1)
ELECTRICAL EQUIPMENT (2)
ELECTRICAL EQUIPMENT (3)
ANTENNA ASSEMBLY
CONTROL PANEL (1)
CONTROL PANEL (2)
COMBINATION INSTRUMENT ASSEMBLY
COMBINATION SWITCH ASSEMBLY
BACK - UP RADAR ASSEMBLY
CONDENSER ELECTROMAGNETIC FAN ASSEMBLY
WIRING HARNESS ARRANGEMENT (1)
WIRING HARNESS ARRANGEMENT (2)
WIRING HARNESS ARRANGEMENT (3)
A/C (l) — CONDENSER AND RECEIVER DRYER KIT
А/С (2) — REFRIGERATION COMPRESSOR ASSEMBLY
A/C (3) — EVAPORATOR AND BLOWER
A/C (4) — AIR TUNNEL
A/C (5) — HEAT RADIATOR ASSEMBLY
A/C (6) — CONTROLLER ASSEMBLY
INCAR TOOL
DECORATION RIBBON
COLOR COMPARISON OF EACH STYLE
A
B
C
D
1
1
1
1
1
2
3
4
5
Позиция на иллюстрации
Заводской номер детали
Название детали
A
1108110-D01
ACCELERATOR PEDAL ASSEMBLY
B
1108110-D62
ACCELERATOR PEDAL ASSEMBLY
C
1108110-D75
ACCELERATOR PEDAL ASSEMBLY
D
1108140-D75
SECONDARY ACCELERATOR PEDAL ASSEMBLY
1
1108120-D01
ACCELERATOR CABLE ASSEMBLY
1
1108120-F02
ACCELERATOR CABLE ASSEMBLY
1
1108120-D43
ACCELERATOR CABLE ASSEMBLY
1
1108120-D17
ACCELERATOR CABLE ASSEMBLY
1
1108120-D62
ACCELERATOR CABLE ASSEMBLY
2
1108130-D62
HAND ACCELERATOR PULL WIRE ASSEMBLY
3
1108113-D01
RETURN SPRING, ACCELERATOR PEDAL
4
1108102-D01
BRACKET, ACCELERATOR CABLE
5
1108103-D01
BRACKET, ACCELERATOR CABLE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
