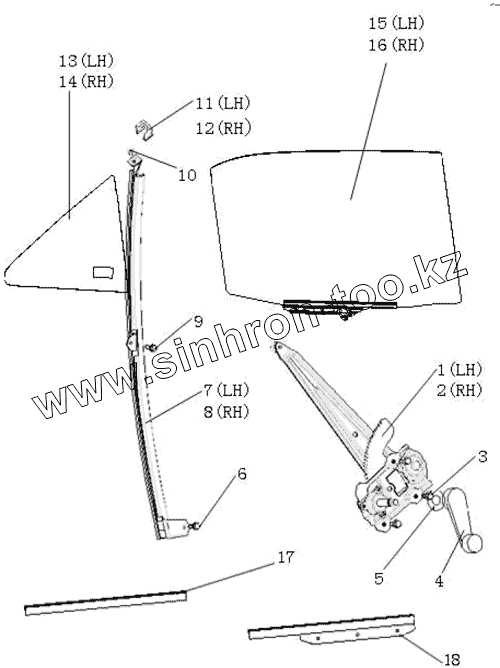

Каталог запасных частей к технике: Geely MK. REAR DOOR GLASS REGULATOR
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
18
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1018005303 | 1018005303 | RR DOOR GLASS LOWER BRACKET ASSY | |
| 1 | 1018005424 | LR DOOR GLASS REGULATOR ASSY | |
| 1 | 1018005663 | LR DOOR GLASS REGULATOR | |
| 2 | 1018005425 | RR DOOR GLASS REGULATOR ASSY | |
| 2 | 1018005662 | RR DOOR GLASS REGULATOR | |
| 3 | HEXAGON FLANGE BOLT | HEXAGON FLANGE BOLT | |
| 4 | 1018005432 | REGULATOR HANDLE | |
| 5 | 1018005433 | PLASTIC GASKET | |
| 6 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. | |
| 7 | 1018005592 | LR DOOR GLASS BAFFLE PLATE ASSY | |
| 8 | 1018005579 | RR DOOR GLASS BAFFLE PLATE ASSY | |
| 9 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. | |
| 10 | CROSS SLOTTED HEAD SCREW | CROSS SLOTTED HEAD SCREW | |
| 11 | 1018005225 | LR DOOR GLASS BAFFLE PLATE END CAP | |
| 12 | 1018005226 | RR DOOR GLASS BAFFLE PLATE END CAP | |
| 13 | 1018005586 | LR DOOR QUARTER GLASS | |
| 13 | 1018004774 | LR DOOR QUARTER GLASS(GREEN/HEAT INSULATING) | |
| 14 | 1018005573 | RR DOOR QUARTER GLASS | |
| 14 | 1018004775 | RR DOOR QUARTER GLASS(GREEN/HEAT INSULATING) | |
| 15 | 1018005130 | LR DOOR GLASS ASSY(TOUGHENED GLASS) | |
| 15 | 1018005131 | LR DOOR GLASS ASSY(GREEN/HEAT INSULATING) | |
| 16 | 1018005132 | RR DOOR GLASS ASSY(TOUGHENED GLASS) | |
| 16 | 1018005133 | RR DOOR GLASS ASSY(GREEN/HEAT INSULATING) | |
| 17 | 1018005135 | REAR DOOR GLASS RUBBER STRIP | |
| 18 | 1018005299 | LR DOOR GLASS LOWER BRACKET ASSY |
