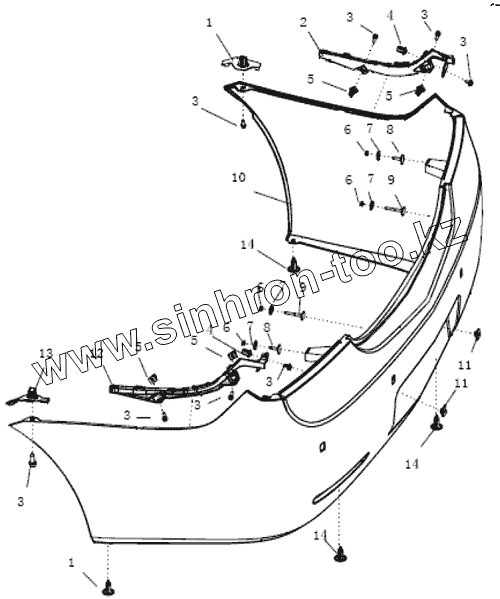

Каталог запасных частей к технике: Geely MK. REAR BUMPER ASSY.
1
1
2
3
3
3
3
3
3
3
3
4
4
5
5
5
5
6
6
6
6
7
7
7
7
8
8
9
9
10
10
11
11
12
13
14
14
14
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1018005353 | 1018005353 | LICENSE TRIM PLATE | |
| 280305500102 | 280305500102 | LICENSE MOUNTING BRACKET ASSY | |
| 101200467502 | 101200467502 | RIGHT SIDE WALL TAILLIGHT FIXING PLATE | |
| 101200421502 | 101200421502 | LEFT SIDE WALL TAILLIGHT FIXING PLATE | |
| 1 | 1018004861 | RIGHT MOUNTING STOPPER | |
| 2 | 1018004863 | REAR BUMPER RIGHT MOUNTING BRACKET | |
| 3 | CROSS BIG ROUND HEAD TAPPING SCREW | CROSS BIG ROUND HEAD TAPPING SCREW | |
| 4 | 1018004868 | REAR BUMPER RIGHT MOUNTING BRACKET CLIP | |
| 5 | 1018005096 | REAR BUMPER MOUNTING BRACKET CLIP SET | |
| 6 | HEXAGON FLANGE NUT | HEXAGON FLANGE NUT | |
| 7 | HIGH-DENSITY SPONGY WASHER | HIGH-DENSITY SPONGY WASHER | |
| 8 | 1018004853 | REAR BUMPER MOUNTING BOLT(2) | |
| 9 | 1018004860 | REAR BUMPER MOUNTING BOLT(1) LONG | |
| 10 | 1018005772 | REAR BUMPER | |
| 10 | 1018004865 | REAR BUMPER(PARKING SENSOR) | |
| 11 | U TYPE CLAMP NUT | U TYPE CLAMP NUT | |
| 12 | 1018004864 | REAR BUMPER LEFT MOUNTING BRACKET | |
| 13 | 1018004862 | LEFT MOUNTING STOPPER | |
| 14 | JQ694E79 | J CLIP |
