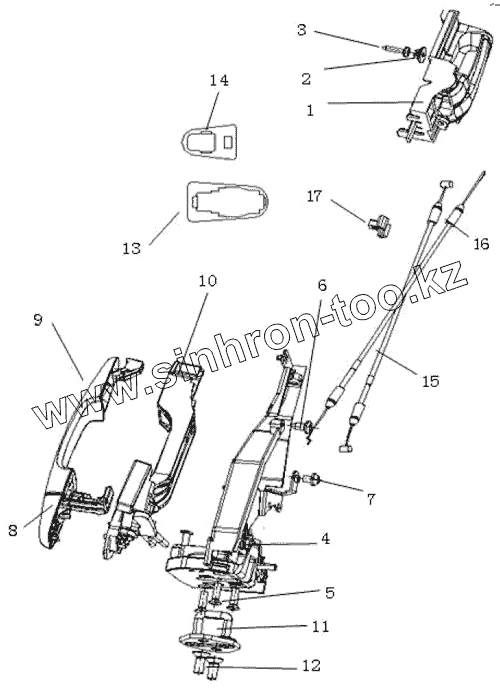

Каталог запасных частей к технике: Geely MK. LR DOOR LOCK & HANDLE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Позиция на иллюстрации Заводской номер детали Название детали
1018008854 1018008854 LR DOOR LOCK ACTUATOR ASSY
1 1018005293 LEFT DOOR INTERIOR HANDLE ASSY
2 JQ398M85 PLASTIC NUT
3 C TYPE CROSS SLOTTED HEAD SELF-TAPPING SCREW C TYPE CROSS SLOTTED HEAD SELF-TAPPING SCREW
4 1058005291 RL DOOOR LOCK ASSY(W/O LOCK ACTUATOR)
4 1018005291 RL DOOOR LOCK ASSY
5 INNER HEXAGON FLOWER COUNTERSUNK SCREW INNER HEXAGON FLOWER COUNTERSUNK SCREW
6 CROSS SLOTTED HEAD SCREW & PLAIN WASHER ASSY CROSS SLOTTED HEAD SCREW & PLAIN WASHER ASSY
7 C TYPE CROSS SLOTTED HEAD SELF-TAPPING SCREW C TYPE CROSS SLOTTED HEAD SELF-TAPPING SCREW
8 1018004769 REAR DOOR EXTERIOR UNLOCKING HANDLE POLE COVER
9 1018005041-01 LR DOOR EXTERIOR HANDLE ASSY
10 1018005041 REAR DOOR EXTERIOR UNLOCKING HANDLE MOUNTING BRACKET ASSY
11 1018005043 LOCK STRIKER
12 INNER HEXAGON FLOWER COUNTERSUNK SCREW INNER HEXAGON FLOWER COUNTERSUNK SCREW
13 1018005283 DOOR EXTERIOR HANDLE FRONT LINER
14 1018005284 DOOR EXTERIOR HANDLE REAR LINER
15 1018003957 REAR DOOR INTERIOR UNLOCKING CABLE ASSY
16 1018003729 LR DOOR LOCKING CABLE ASSY
17 CABLE CLIP CABLE CLIP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
