  5. INTAKE MANIFOLD COMPONENTS

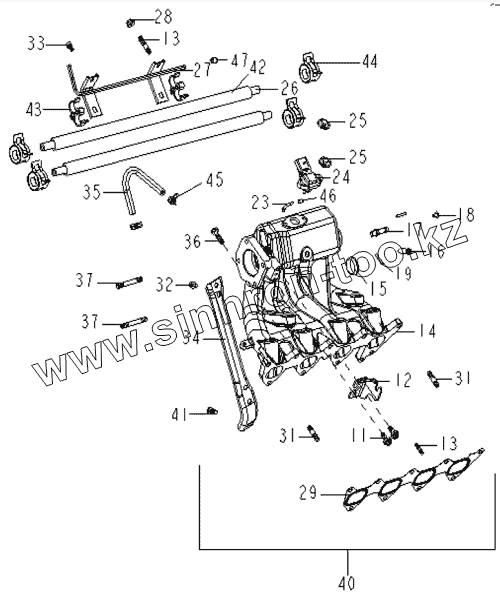

Каталог запасных частей к технике: Geely MK. INTAKE MANIFOLD COMPONENTS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
11
12
13
13
14
14
14
15
16
17
18
19
23
24
24
25
25
26
27
28
29
31
31
32
33
34
35
36
37
37
40
41
42
43
44
45
46
47
Позиция на иллюстрации Заводской номер детали Название детали
11 HEXAGON FLANGE BOLT M8x14 HEXAGON FLANGE BOLT M8x14
12 ACCELERATOR LEVER CLIP ACCELERATOR LEVER CLIP
13 DOUBLE END STUD M6x25 DOUBLE END STUD M6x25
14 E010200101 INTAKE MANIFOLD
14 1086000511 INTAKE MANIFOLD
14 1106016015 INTAKE MANIFOLD(SPECIAL CHILE)
15 E020300601 SEALING COVER d35
16 E010200301 STRAIGHT PIPE JOINT A
17 E010200601 HEXAGON HEAD PIPE JOINT R1/18X18
18 DUSTPROOF PLUG DUSTPROOF PLUG
19 E010200501 STRAIGHT PIPE JOINT B
23 E010200201 BENDED PIPE JOINT
24 E050010005 INTAKE TEMPERATURE AND PRESSURE SENSOR
24 2150010006 INTAKE TEMPERATURE AND PRESSURE SENSOR
25 HEXAGON HEAD BOLT & PLAIN WASHER ASSY HEXAGON HEAD BOLT & PLAIN WASHER ASSY.
26 E110300501 COOLING WATER BYPASS HOSE
27 E110120005 FUEL RETURN PIPE & BRACKET ASSY
28 PREVAILING TORQUE TYPE HEXAGON NUT WITH FLANGE PREVAILING TORQUE TYPE HEXAGON NUT WITH FLANGE
29 E010001301 INTAKE MANIFOLD GASKET
31 E010501501 DOUBLE END STUD M8X35
32 INTAKE MANIFOLD STAY FIXING BOLT M8x16 INTAKE MANIFOLD STAY FIXING BOLT M8x16
33 HEXAGON HEAD BOLT & PLAIN WASHER ASSY HEXAGON HEAD BOLT & PLAIN WASHER ASSY.
34 2010200901 INTAKE MANIFOLD STAY
35 E110100101 FUEL RETURN HOSE
36 INTAKE MANIFOLD FIXING BOLT INTAKE MANIFOLD FIXING BOLT
37 DOUBLE END STUD M8x62 DOUBLE END STUD M8x62
40 E010200005 INTAKE MANIFOLD COMPONENTS
41 HEXAGON HEAD BOLT & PLAIN WASHER ASSY HEXAGON HEAD BOLT & PLAIN WASHER ASSY.
42 PIPE PIPE
43 CLIP CLIP
44 CLIP CLIP
45 CLIP CLIP
46 COVER d35x9 (FOR TRANSPORTATION) COVER d35x9 (FOR TRANSPORTATION)
47 COVER d7x10 (FOR TRANSPORTATION) COVER d7x10 (FOR TRANSPORTATION)
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
