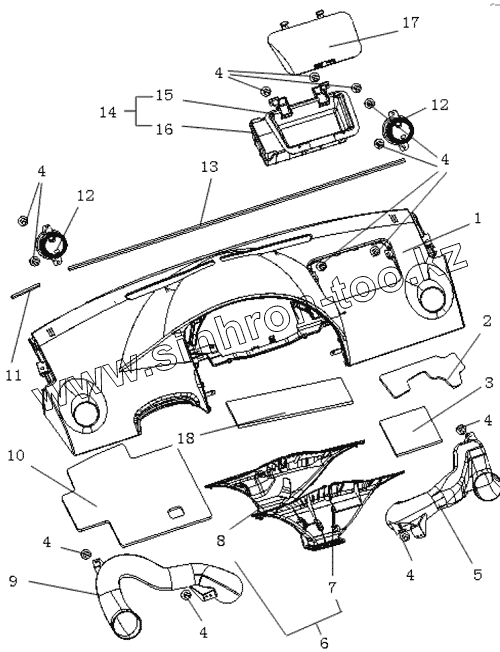

Каталог запасных частей к технике: Geely MK. INSTRUMENT PANEL UPPER COVER ASSY.
1
1
1
2
3
4
4
4
4
4
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1018003495 | INSTRUMENT PANEL UPPER COVER SUB-ASSY | |
| 1 | 105800349400601 | INSTRUMENT PANEL UPPER COVER SUB-ASSY INSTRUMENT PANEL UPPER COVER SUB-ASSY | |
| 1 | 1018003494 | INSTRUMENT PANEL UPPER COVER SUB-ASSY | |
| 2 | 1018005164 | INSTRUMENT PANEL UPPER SOUND INSULATOR | |
| 3 | 1018005163 | INSTRUMENT PANEL UPPER SOUND INSULATOR | |
| 4 | Q2204813 | CROSS SLOTTED HEAD SELF-TAPPING SCREW & PLAIN WASHER ASSY | |
| 5 | RIGHT VENT PIPE | RIGHT VENT PIPE | |
| 6 | 1018005202 | DEFROST VENT PIPE ASSY | |
| 7 | DEFROST VENT PIPE REAR COVER | DEFROST VENT PIPE REAR COVER | |
| 8 | DEFROST VENT PIPE FRONT COVER | DEFROST VENT PIPE FRONT COVER | |
| 9 | LEFT VENT PIPE | LEFT VENT PIPE | |
| 10 | 1018005161 | INSTRUMENT PANEL UPPER SOUND INSULATOR | |
| 11 | INSTRUMENT PANEL UPPER COVER SPONGE (SHORT) | INSTRUMENT PANEL UPPER COVER SPONGE (SHORT) | |
| 12 | 1018005970 | WIND DIRECTION ADJUSTER | |
| 13 | INSTRUMENT PANEL UPPER COVER SPONGE (LONG) | INSTRUMENT PANEL UPPER COVER SPONGE (LONG) | |
| 14 | UPPER GLOVE COMPARTMENT ASSY | UPPER GLOVE COMPARTMENT ASSY | |
| 15 | UPPER GLOVE COMPARTMENT FIXING BRACKET | UPPER GLOVE COMPARTMENT FIXING BRACKET | |
| 16 | UPPER GLOVE COMPARTMENT BOTTOM | UPPER GLOVE COMPARTMENT BOTTOM | |
| 17 | UPPER GLOVE COMPARTMENT COVER | UPPER GLOVE COMPARTMENT COVER | |
| 18 | 1018005162 | INSTRUMENT PANEL UPPER SOUND INSULATOR |
