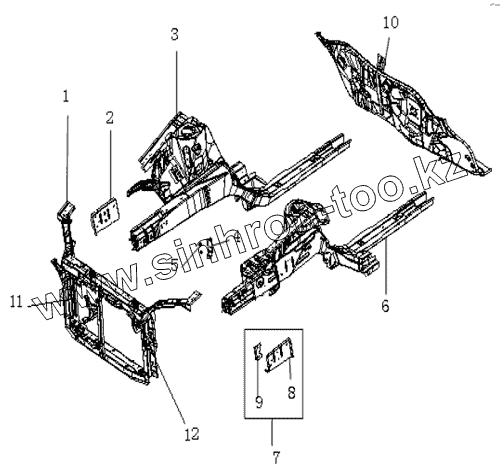

Каталог запасных частей к технике: Geely MK. ENGINE COMPARTMENT ASSY.

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
Позиция на иллюстрации Заводской номер детали Название детали
1018011472 1018011472 ENGINE BOTTOM LEFT SHIELD
1018011470 1018011470 ENGINE BOTTOM RIGHT SHIELD
1018004682 1018004682 ENGINE BOTTOM LEFT SHIELD
1018004683 1018004683 ENGINE BOTTOM RIGHT SHIELD
1 101201731002 RADIATOR LOWER CROSS MEMBER(MT)
1 105201732102 RADIATOR CENTER BRACKET(AT)
1 101201732102 RADIATOR CENTER BRACKET(MT)
1 1012000339 FRONT CROSS MEMBER RIGHT BRACKET
1 101200031402 RADIATOR LOWER CROSS MEMBER
1 105201731002 RADIATOR LOWER CROSS MEMBER(AT)
1 101200032702 RADIATOR UPPER CROSS MEMBER
1 101201730502 RADIATOR UPPER CROSS MEMBER
1 1012000335 FRONT CROSS MEMBER LEFT BRACKET
1 101200032503 RADIATOR CENTER BRACKET
2 1012000357 RF SHOCK ABSORBER LOWER FRONT PLATE
3 101200018202 RIGHT SIDE RAIL ASSY
4 RF SHOCK ABSORBER INTERIOR BRACKET RF SHOCK ABSORBER INTERIOR BRACKET
5 Q1460616 HEXAGON HEAD BOLT & PLAIN WASHER ASSY.
6 101200018302 LEFT SIDE RAIL ASSY
7 1012000359 LF SHOCK ABSORBER LOWER FRONT PLATE
8 LF SHOCK ABSORBER LOWER FRONT PLATE SUB-ASSY LF SHOCK ABSORBER LOWER FRONT PLATE SUB-ASSY
9 LF TOW HOOK FIXING PLATE ASSY LF TOW HOOK FIXING PLATE ASSY
10 COWL PANEL BAFFLE PLATE ASSY COWL PANEL BAFFLE PLATE ASSY
11 101200029103 RADIATOR RIGHT POLE ASSY
12 101200030303 RADIATOR LEFT POLE ASSY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
