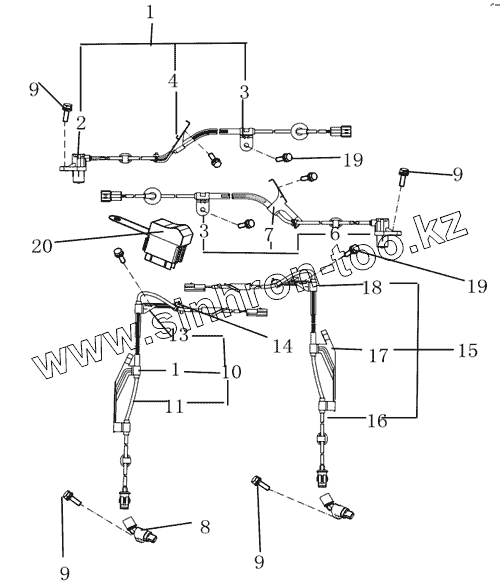

Каталог запасных частей к технике: Geely MK. ABS WIRING HARNESS
1
1
2
3
3
4
6
6
6
7
8
8
8
9
9
9
9
10
11
13
14
15
16
17
18
19
19
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1017009293 | LF WHEEL SPEED SENSOR ASSY | |
| 2 | 1017009293 | LF WHEEL SPEED SENSOR ASSY | |
| 3 | FRONT CLIP | FRONT CLIP | |
| 4 | LF WIRING HARNESS CLIP | LF WIRING HARNESS CLIP | |
| 6 | 1017009294 | RF WHEEL SPEED SENSOR ASSY | |
| 6 | 1017009294 | RF WHEEL SPEED SENSOR ASSY | |
| 6 | 1014004119 | RF WHEEL SPEED SENSOR ASSY(W/O ABS) | |
| 7 | RF WIRING HARNESS CLIP | RF WIRING HARNESS CLIP | |
| 8 | 1017009296 | REAR WHEEL SPEED SENSOR | |
| 8 | 1017009301 | LR WHEEL SPEED SENSOR | |
| 8 | 1017009302 | RR WHEEL SPEED SENSOR | |
| 9 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. | |
| 10 | 1017009299 | LR WHEEL SPEED SENSOR WIRING HANRESS ASSY | |
| 11 | LR WHEEL SPEED SENSOR WIRING HANRESS | LR WHEEL SPEED SENSOR WIRING HANRESS | |
| 12 | LR CLIP I | LR CLIP I | |
| 13 | LR CLIP II | LR CLIP II | |
| 14 | LACE | LACE | |
| 15 | 1017009300 | RR WHEEL SPEED SENSOR WIRING HARNESS ASSY | |
| 16 | RR WHEEL SPEED SENSOR WIRING HARNESS | RR WHEEL SPEED SENSOR WIRING HARNESS | |
| 17 | RR CLIP I | RR CLIP I | |
| 18 | RR CLIP II | RR CLIP II | |
| 19 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. | |
| 20 | 1017009279 | WARNING LIGHT DRIVE MODULE |
