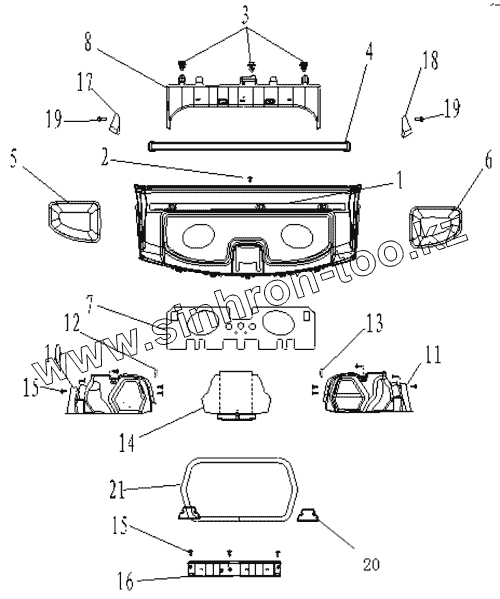

Каталог запасных частей к технике: Geely FC. TRUNK TRIM & ACCESSORY
1
2
3
4
5
6
7
8
10
11
12
13
14
15
15
16
17
18
20
21
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1068000261 | 1068000261 | TRUNK LID PLASTIC CLIP | |
| 1068000101 | 1068000101 | TRUNK TORSION SPRING II | |
| 1068000100 | 1068000100 | TRUNK TORSION SPRING I | |
| 1068000099 | 1068000099 | TRUNK LID TORSION SPRING FIXING BRACKET | |
| 1 | 1068010032 | PACKAGE TRAY & SUN VISOR ASSY. | |
| 2 | 1068000085 | COWL PANEL HEAT INSULATION PLASTIC NUT | |
| 3 | REAR BAFFLE PLATE LOWER CLIP | REAR BAFFLE PLATE LOWER CLIP | |
| 4 | REAR SUN VISOR ASSY | REAR SUN VISOR ASSY. | |
| 5 | PACKAGE TRAY LEFT SPEAKER COVER | PACKAGE TRAY LEFT SPEAKER COVER | |
| 6 | PACKAGE TRAY RIGHT SPEAKER COVER | PACKAGE TRAY RIGHT SPEAKER COVER | |
| 7 | REAR INNER HEAT INSULATION FLOOR | REAR INNER HEAT INSULATION FLOOR | |
| 8 | 1068010034 | PACKAGE TRAY FRONT LOWER TRIMS BOARD | |
| 9 | REAR SEAT BACK REAR LINER | REAR SEAT BACK REAR LINER | |
| 10 | 1068000112 | TRUNK LEFT TRIM | |
| 11 | 1068000113 | TRUNK RIGHT TRIM | |
| 12 | TRUNK LEFT SQUARENESS TRIMS | TRUNK LEFT SQUARENESS TRIMS | |
| 13 | TRUNK RIGHT SQUARENESS TRIMS | TRUNK RIGHT SQUARENESS TRIMS | |
| 14 | 1068000114 | TRUNK CARPET ASSY. | |
| 15 | 1068000079 | LOWER I/P PLASTIC CLIP | |
| 16 | 1068000118 | TRUNK REAR TRIM BOARD | |
| 17 | 1068000096 | TRUNK LEFT CUSHION | |
| 18 | 1068000097 | TRUNK RIGHT CUSHION | |
| 20 | 1068000098 | TRUNK LID HINGE RUBBER CUSHION | |
| 21 | 1068000119 | TRUNK WEATHERSTRIP |
