Каталог запасных частей к технике: Geely FC. RF DOOR ASSY.

Тип техники

Марка

Модель

Схема

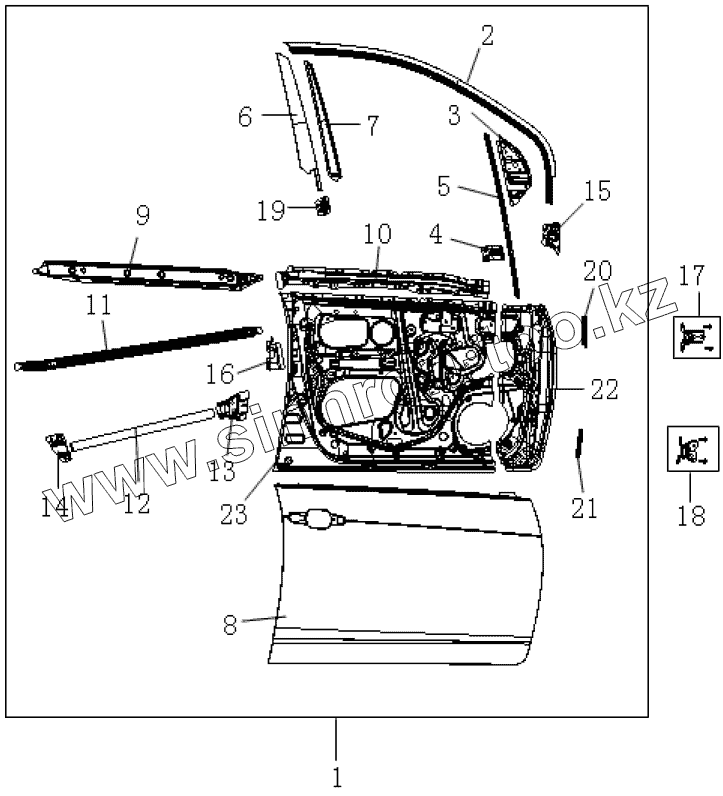

Позиция на иллюстрации	Заводской номер детали	Название детали
1	106200047901	FRONT DOOR ASSY,RH
2	RF DOOR WINDOW FRONT FRAME	RF DOOR WINDOW FRONT FRAME
3	RF DOOR REARVIEW MIRROR FIXING PLATE	RF DOOR REARVIEW MIRROR FIXING PLATE
4	RF DOOR WINDOW CHANNEL LOWER BRACKET	RF DOOR WINDOW CHANNEL LOWER BRACKET
5	RF DOOR WINDOW FRONT CHANNEL	RF DOOR WINDOW FRONT CHANNEL
6	RF DOOR WINDOW REAR FRAME	RF DOOR WINDOW REAR FRAME
7	RF DOOR WEATHERSTRIP CHANNEL	RF DOOR WEATHERSTRIP CHANNEL
8	RF DOOR OUTER PANEL	RF DOOR OUTER PANEL
9	RF DOOR INNER PANEL REINFORCEMENT	RF DOOR INNER PANEL REINFORCEMENT
10	RF DOOR INTER PANEL UPPER REINFORCEMENT	RF DOOR INTER PANEL UPPER REINFORCEMENT
11	RF DOOR INTER PANEL MIDDLE REINFORCEMENT	RF DOOR INTER PANEL MIDDLE REINFORCEMENT
12	FRONT DOOR REINFOCEMENT POLE	FRONT DOOR REINFOCEMENT POLE
13	RF DOOR REINFOCEMENT POLE FRONT BRACKET	RF DOOR REINFOCEMENT POLE FRONT BRACKET
14	RF DOOR REINFOCEMENT POLE REAR BRACKET	RF DOOR REINFOCEMENT POLE REAR BRACKET
15	RF DOOR-WINDOW FRAME FRONT BRACKET	RF DOOR-WINDOW FRAME FRONT BRACKET
16	RF DOOR LOCK BUCKLE FIXING PLATE	RF DOOR LOCK BUCKLE FIXING PLATE
17	1062000025	RL DOOR UPPER HINGE ASSY.
18	1062000027	RL DOOR LOWER HINGE ASSY.
19	RF DOOR WINDOW FRAME REAR BRACKET	RF DOOR WINDOW FRAME REAR BRACKET
20	FRONT DOOR UPPER HINGE REINFORCEMENT	FRONT DOOR UPPER HINGE REINFORCEMENT
21	FRONT DOOR LOWER HINGE REINFORCEMENT	FRONT DOOR LOWER HINGE REINFORCEMENT
22	RF DOOR INNER PLATE FRONT REINFORCEMENT	RF DOOR INNER PLATE FRONT REINFORCEMENT
23	RF DOOR INNER PANEL	RF DOOR INNER PANEL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
