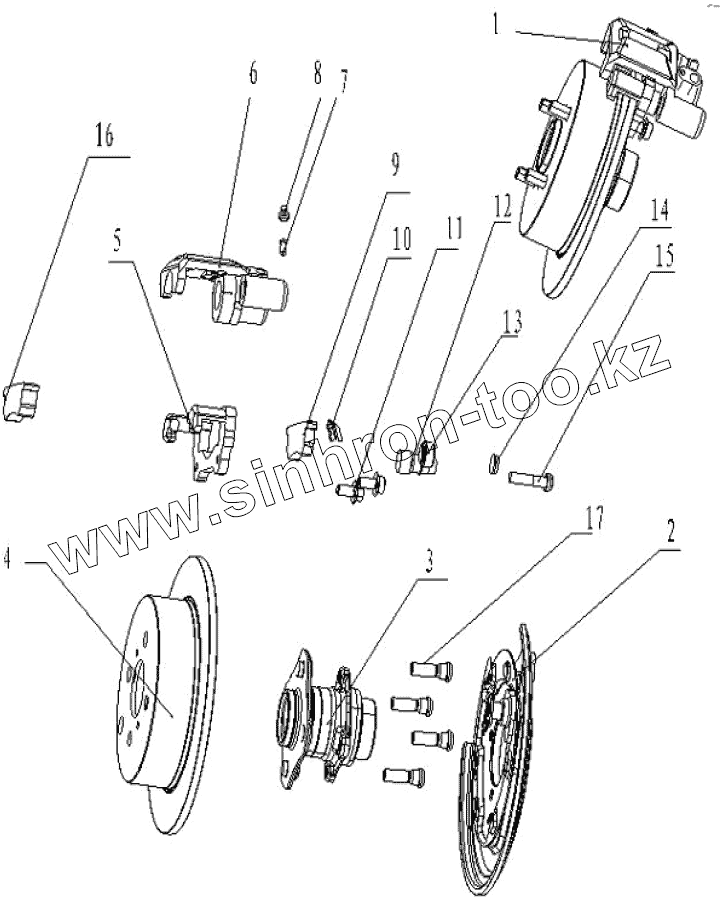

Каталог запасных частей к технике: Geely FC. REAR BRAKE WITH WHEEL HUB ASSY.
1
1
2
3
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1064000139 | RR BRAKE ASSY. | |
| 1 | 1064000137 | RL BRAKE ASSY. | |
| 2 | 1061001126 | REAR WHEEL HUB CELL ASSY. | |
| 3 | RL BRAKE BOTTOM PLATE ASSY | RL BRAKE BOTTOM PLATE ASSY. | |
| 3 | RR BRAKE BOTTOM PLATE ASSY | RR BRAKE BOTTOM PLATE ASSY. | |
| 4 | 1061001407 | REAR BRAKE DISC | |
| 5 | RL BRAKE CALIPER INSTALLATION BRACKET | RL BRAKE CALIPER INSTALLATION BRACKET | |
| 5 | RR BRAKE CALIPER INSTALLATION BRACKET | RR BRAKE CALIPER INSTALLATION BRACKET | |
| 6 | 1061001405 | RL BRAKE CALIPER WITH PUMP ASSY. | |
| 6 | 1061001406 | RR BRAKE CLIPER WITH PUMP ASSY. | |
| 7 | BRAKE CLIPER DEFLATION BOLT | BRAKE CLIPER DEFLATION BOLT | |
| 8 | DEFLATION BOLT COVER | DEFLATION BOLT COVER | |
| 9 | 1061001404 | REAR BRAKE INNER FRICTION PAD | |
| 10 | REAR BRAKE FRICTION PAD WEAR INDICATOR | REAR BRAKE FRICTION PAD WEAR INDICATOR | |
| 11 | BRAKE CLIPER FIXING BOLT | BRAKE CLIPER FIXING BOLT | |
| 12 | REAR POLE PIN 1# DUSTPROOF COVER | REAR POLE PIN 1# DUSTPROOF COVER | |
| 13 | REAR POLE PIN 2# DUSTPROOF COVER | REAR POLE PIN 2# DUSTPROOF COVER | |
| 14 | REAR POLE PIN 1# | REAR POLE PIN 1# | |
| 15 | REAR POLE PIN 1# INSTALLATION BOLT | REAR POLE PIN 1# INSTALLATION BOLT | |
| 16 | 1061001404 | REAR BRAKE INNER FRICTION PAD | |
| 17 | REAR WHEEL HUB BOLT | REAR WHEEL HUB BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
