1. Каталоги запчастей к технике
  2. Легковые автомобили
  3. Geely
  4. Geely FC
  5. RADIATOR MOUNTING FRAME ASSY.

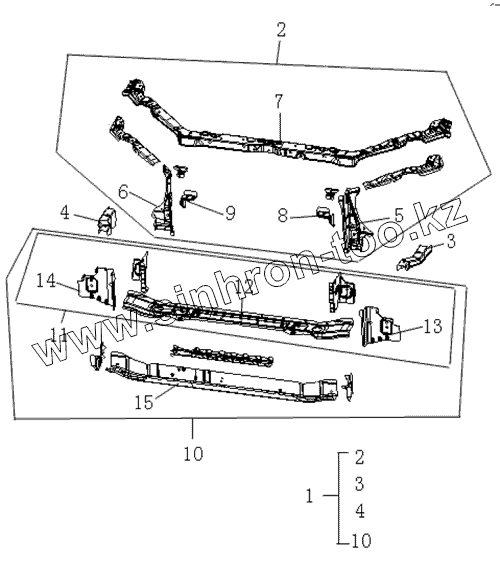

Каталог запасных частей к технике: Geely FC. RADIATOR MOUNTING FRAME ASSY.

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
Позиция на иллюстрации Заводской номер детали Название детали
1064000061 1064000061 RADIATOR LOWER MOUNTING RUBBER CUSHION
1 106200053901 RADIATOR MOUNTING BRACKET ASSY.
2 RADIATOR UPPER CROSS MEMBER ASSY RADIATOR UPPER CROSS MEMBER ASSY.
3 FL HEADLIGHT BRACKET ASSY FL HEADLIGHT BRACKET ASSY.
4 FR HEADLIGHT BRACKET ASSY FR HEADLIGHT BRACKET ASSY.
5 CROSS MEMBER LEFT UPPER PILLAR CROSS MEMBER LEFT UPPER PILLAR
6 CROSS MEMBER RIGHT UPPER PILLAR CROSS MEMBER RIGHT UPPER PILLAR
7 UPPER CROSS MEMBER UPPER CROSS MEMBER
8 1064000058 UPPER CROSS MEMBER LEFT BRACKET ASSY.
9 1064000058 UPPER CROSS MEMBER LEFT BRACKET ASSY.
10 LOWER CROSS MEMBER ASSY LOWER CROSS MEMBER ASSY.
11 LOWER CROSS MEMBER UPPER REINFORCEMENT ASSY LOWER CROSS MEMBER UPPER REINFORCEMENT ASSY.
12 LOWER CROSS MEMBER UPPER REINFORCEMENT LOWER CROSS MEMBER UPPER REINFORCEMENT
13 LOWER CROSS MEMBER LEFT PILLAR LOWER CROSS MEMBER LEFT PILLAR
14 LOWER CROSS MEMBER RIGHT PILLAR LOWER CROSS MEMBER RIGHT PILLAR
15 LOWER CROSS MEMBER LOWER CROSS MEMBER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
