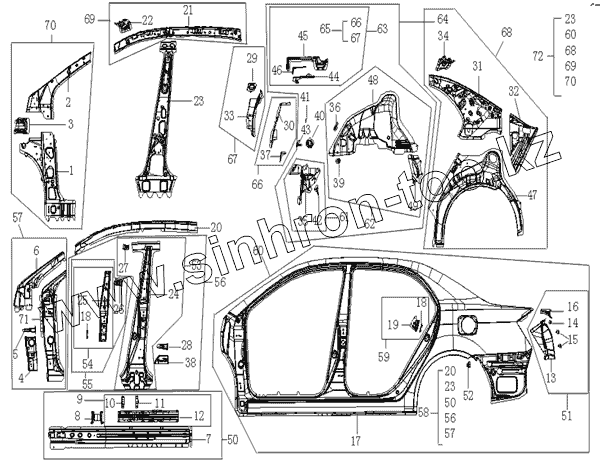

Каталог запасных частей к технике: Geely FC. LEFT SIDE WALL ASSY.

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
20
21
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
52
53
54
55
56
56
57
57
58
59
60
60
61
62
63
64
65
66
66
67
67
68
68
69
69
70
70
71
72
Позиция на иллюстрации Заводской номер детали Название детали
1062000469 1062000469 LEFT SIDE WALL ASSY.
1 LEFT A-PILLAR INNER PLATE LOWER PART ASSY LEFT A-PILLAR INNER PLATE LOWER PART ASSY.
2 LEFT A-PILLAR INNER PLATE UPPER PART ASSY LEFT A-PILLAR INNER PLATE UPPER PART ASSY.
3 LEFT A-PILLAR INNER PLATE CONNECTING PLATE LEFT A-PILLAR INNER PLATE CONNECTING PLATE
4 LEFT A-PILLAR LOWER GEMEL FIXING PLATE ASSY LEFT A-PILLAR LOWER GEMEL FIXING PLATE ASSY.
5 FL CHECK ROD FRAME ASSY FL CHECK ROD FRAME ASSY.
6 LEFT A-PILLAR UPPER REINFORCEMENT ASSY LEFT A-PILLAR UPPER REINFORCEMENT ASSY.
7 LEFT SIDE WALL LOWER REINFORCEMENT LEFT SIDE WALL LOWER REINFORCEMENT
8 LEFT SIDE WALL LOWER FRAME CHECK BRACKET LEFT SIDE WALL LOWER FRAME CHECK BRACKET
9 LEFT SIDE WALL LOWER FRAME INNER LINER ASSY LEFT SIDE WALL LOWER FRAME INNER LINER ASSY.
10 LEFT SIDE WALL LOWER FRAME INNER LINER FRONT BRACKET LEFT SIDE WALL LOWER FRAME INNER LINER FRONT BRACKET
11 LEFT SIDE WALL LOWER FRAME INNER REAR BRACKET LEFT SIDE WALL LOWER FRAME INNER REAR BRACKET
12 LEFT SIDE WALL LOWER FRAME INNER LINER LEFT SIDE WALL LOWER FRAME INNER LINER
13 1062000213 LEFT TAILLIGHT FIXING PLATE
14 TAILLIGHT UPPER PLATE BRACKET TAILLIGHT UPPER PLATE BRACKET
15 TAILLIGHT SMALL BRACKET TAILLIGHT SMALL BRACKET
16 LEFT TAILLIGHT UPPER PLATE LEFT TAILLIGHT UPPER PLATE
17 106200021201 LEFT SIDE WALL OUTER PANEL
18 DOOR LOCK HOOK FIXING PLATE ASSY DOOR LOCK HOOK FIXING PLATE ASSY.
19 LR DOOR LOCK HOOK REINFORCEMENT LR DOOR LOCK HOOK REINFORCEMENT
20 LEFT SIDE WALL UPPER FRAME REINFORCEMENT LEFT SIDE WALL UPPER FRAME REINFORCEMENT
21 LEFT SIDE WALL UPPER SIDE PLATE SUB-ASSY LEFT SIDE WALL UPPER SIDE PLATE SUB-ASSY.
22 LEFT 1# CROSS MEMBER CONNECTING PLATE LEFT 1# CROSS MEMBER CONNECTING PLATE
23 LEFT CENTER PILLAR INNER PLATE ASSY LEFT CENTER PILLAR INNER PLATE ASSY.
24 LEFT CENTER PILLAR OUTER PLATE REINFORCEMENT SUB-ASSY LEFT CENTER PILLAR OUTER PLATE REINFORCEMENT SUB-ASSY.
25 LEFT CENTER PILLAR INNER PLATE REINFORCEMENT LEFT CENTER PILLAR INNER PLATE REINFORCEMENT
26 LF SAFETY BELT LOWER ADJUSTABLE PLATE LF SAFETY BELT LOWER ADJUSTABLE PLATE
27 LF SAFETY BELT LOWER FIXING PLATE ASSY LF SAFETY BELT LOWER FIXING PLATE ASSY.
28 LR DOOR CHECK ROD FRAME ASSY LR DOOR CHECK ROD FRAME ASSY.
29 LEFT TRUNK BOARD SIDE PLATE LEFT TRUNK BOARD SIDE PLATE
30 LEFT TRUNK BOARD UPPER PLATE SUB-ASSY LEFT TRUNK BOARD UPPER PLATE SUB-ASSY.
31 LR PILLAR INNER PLATE ASSY LR PILLAR INNER PLATE ASSY.
32 LR PILLAR QUARTER LR PILLAR QUARTER
33 LEFT TRUNK BOARD LEFT TRUNK BOARD
34 LR CROSS MEMBER 3-WAYS CONNECTING PLATE LR CROSS MEMBER 3-WAYS CONNECTING PLATE
35 LR WHEEL INNER FRONT CONNECTING PLATE SUB-ASSY LR WHEEL INNER FRONT CONNECTING PLATE SUB-ASSY.
36 FUEL FILLER PIPE FIXING PLATE ASSY FUEL FILLER PIPE FIXING PLATE ASSY.
37 LEFT TRUNK BOARD CONNECTING PLATE LEFT TRUNK BOARD CONNECTING PLATE
38 LEFT CENTER PILLAR LOWER HINGE SEAT ASSY LEFT CENTER PILLAR LOWER HINGE SEAT ASSY.
39 REAR SEAT SAFETY BELT FIXING PLATE ASSY REAR SEAT SAFETY BELT FIXING PLATE ASSY.
40 LR SEAT FIXING BRACKET ASSY LR SEAT FIXING BRACKET ASSY.
41 REAR SEAT SIDE SUPPORT BOARD REAR SEAT SIDE SUPPORT BOARD
42 LR WHEEL BRAKE PIPE BRACKET LR WHEEL BRAKE PIPE BRACKET
43 LR SEAT SIDE SUPPORT BOARD ASSY LR SEAT SIDE SUPPORT BOARD ASSY.
44 HINGE SEAT REINFORCEMENT HINGE SEAT REINFORCEMENT
45 LEFT HINGE SEAT FIXING BOARD LEFT HINGE SEAT FIXING BOARD
46 LEFT HINGE SEAT FIXING BOARD REINFORCEMENT ASSY LEFT HINGE SEAT FIXING BOARD REINFORCEMENT ASSY.
47 LR WHEEL OUTER COVER SUB-ASSY LR WHEEL OUTER COVER SUB-ASSY.
48 LR WHEEL INNER COVER LR WHEEL INNER COVER
49 LR WHEEL INNER QUARTER CONNECTING PLATE LR WHEEL INNER QUARTER CONNECTING PLATE
50 LEFT SIDE WALL LOWER FRAME REINFORCEMENT ASSY LEFT SIDE WALL LOWER FRAME REINFORCEMENT ASSY.
51 1062000213 LEFT TAILLIGHT FIXING PLATE
52 GASOLINE TANK CAP CONTROL CABLE SEAT GASOLINE TANK CAP CONTROL CABLE SEAT
53 LEFT CENTER PILLAR OUTER REINFORCEMENT ASSY LEFT CENTER PILLAR OUTER REINFORCEMENT ASSY.
54 LEFT CENTER PILLAR INNER REINFORCEMENT 1# SUB-ASSY LEFT CENTER PILLAR INNER REINFORCEMENT 1# SUB-ASSY.
55 LEFT CENTER PILLAR INNER REINFORCEMENT 2# SUB-ASSY LEFT CENTER PILLAR INNER REINFORCEMENT 2# SUB-ASSY.
56 LEFT CENTER PILLAR INNER REINFORCEMENT ASSY LEFT CENTER PILLAR INNER REINFORCEMENT ASSY.
57 LEFT A-PILLAR INNER REINFORCEMENT PANEL ASSY LEFT A-PILLAR INNER REINFORCEMENT PANEL ASSY.
58 LEFT SIDE WALL INNER REINFORCEMENT ASSY LEFT SIDE WALL INNER REINFORCEMENT ASSY.
59 LR DOOR LOCK HOOK FIXING PLATE ASSY LR DOOR LOCK HOOK FIXING PLATE ASSY.
60 LEFT SIDE WALL OUTER PANEL ASSY LEFT SIDE WALL OUTER PANEL ASSY.
61 LR WHEEL INNER FRONT CONNECTING PLATE LR WHEEL INNER FRONT CONNECTING PLATE
62 LR WHEEL INNER COVER ASSY LR WHEEL INNER COVER ASSY.
63 LEFT TRUNK BOARD ASSY LEFT TRUNK BOARD ASSY.
64 LR WHEEL HOUSING ASSY LR WHEEL HOUSING ASSY.
65 LEFT TRUNK BOARD SUB-ASSY (2) LEFT TRUNK BOARD SUB-ASSY. (2)
66 LEFT TRUNK MAINBOARD UPPER PANEL ASSY LEFT TRUNK MAINBOARD UPPER PANEL ASSY.
67 LEFT TRUNK BOARD SUB-ASSY (1) LEFT TRUNK BOARD SUB-ASSY. (1)
68 LR WHEEL COVER ASSY LR WHEEL COVER ASSY.
69 LEFT SIDE WALL UPPER SIDE PLATE ASSY LEFT SIDE WALL UPPER SIDE PLATE ASSY.
70 LEFT A-PILLAR INNER PLATE ASSY LEFT A-PILLAR INNER PLATE ASSY.
71 LEFT A-PILLAR INNER PLATE REINFORCEMENT ASSY LEFT A-PILLAR INNER PLATE REINFORCEMENT ASSY.
72 1062000469 LEFT SIDE WALL ASSY.
