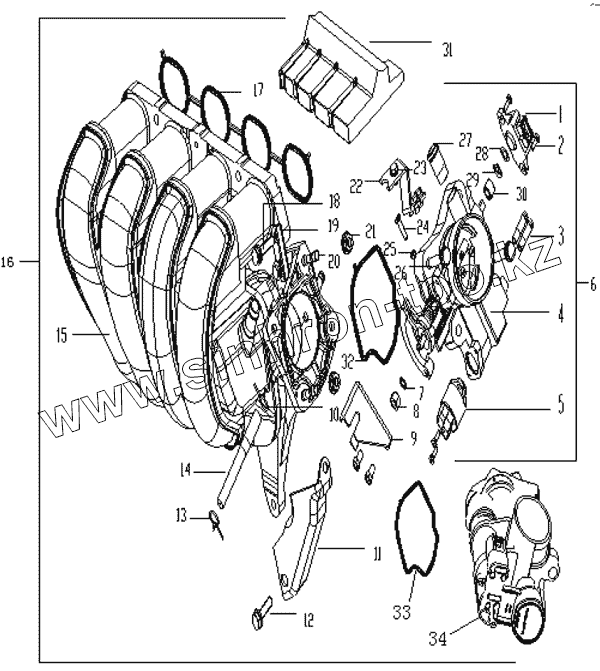

Каталог запасных частей к технике: Geely FC. INTAKE MANIFOLD ASSY.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1016050260 | 1016050260 | AIR INTAKE PRESSURE TEMPERATURE SENSOR | |
| 1136000325 | 1136000325 | THROTTLE PREHEAT WATER PIPE II | |
| 1136000324 | 1136000324 | THROTTLE PREHEAT WATER PIPE I | |
| 1 | 1136000413 | THROTTLE POSITION SENSOR | |
| 2 | CROSS RECESSED PAN HEAD SCREW (M4X12) | CROSS RECESSED PAN HEAD SCREW (M4X12) | |
| 3 | STAINLESS STEEL TUBE 2 | STAINLESS STEEL TUBE 2 | |
| 4 | THROTTLE | THROTTLE | |
| 5 | 1136000412 | STEPPER | |
| 6 | 1136000405 | THROTTLE COMPONENTS | |
| 7 | WASHER (d8) | WASHER (d8) | |
| 8 | NUT (M8) | NUT (M8) | |
| 9 | ACCELERATION CABLE BRACKET | ACCELERATION CABLE BRACKET | |
| 10 | STEEL STRIP BOUNCY CLIP | STEEL STRIP BOUNCY CLIP | |
| 11 | 1136000104 | THROTTLE VALVE SUPPORT PLATE | |
| 12 | HEXAGON HEAD BOLT & PLAIN WASHER COMPONENTS | HEXAGON HEAD BOLT & PLAIN WASHER COMPONENTS | |
| 13 | METAL STRIP BOUNCY CLIP | METAL STRIP BOUNCY CLIP | |
| 14 | 1136000105 | VACUUM PRESSURE HOSE | |
| 15 | 1016050276 | INTAKE MANIFOLD COMPONENTS | |
| 15 | 1136000316 | INTAKE MANIFOLD COMPONENTS | |
| 16 | INTAKE MANIFOLD ASSY | INTAKE MANIFOLD ASSY. | |
| 17 | INTAKE MANIFOLD GASKET | INTAKE MANIFOLD GASKET | |
| 18 | HEXAGON HEAD BOLT & PLAIN WASHER COMPONENTS | HEXAGON HEAD BOLT & PLAIN WASHER COMPONENTS | |
| 19 | 1136000107 | REINFORCEMENT PLATE | |
| 20 | DOUBLE END STUD (M8X39) | DOUBLE END STUD (M8X39) | |
| 21 | HEXAGON FLANGE NUT | HEXAGON FLANGE NUT | |
| 22 | 1136000406 | INTAKE PRESSURE & TEMPERATURE SENSOR | |
| 23 | HEXAGON HEAD BOLT & PLAIN WASHER COMPONENTS | HEXAGON HEAD BOLT & PLAIN WASHER COMPONENTS | |
| 24 | ADJUST NUT | ADJUST NUT | |
| 25 | Q1400616 | NUT (M5) | |
| 26 | HEXAGON HEAD BOLT & PLAIN WASHER COMPONENTS | HEXAGON HEAD BOLT & PLAIN WASHER COMPONENTS | |
| 27 | STAINLESS STEEL TUBE 1 | STAINLESS STEEL TUBE 1 | |
| 28 | WASHER | WASHER | |
| 29 | WASHER d7 | WASHER d7 | |
| 30 | NEEDLE BEARING | NEEDLE BEARING | |
| 31 | DAMPING WASHER | DAMPING WASHER | |
| 32 | THROTTLE VALVE SEAL | THROTTLE VALVE SEAL | |
| 33 | ELECTRON THROTTLE VALVE SEAL | ELECTRON THROTTLE VALVE SEAL | |
| 34 | 1016050250 | COMPONENTS, ELECTRON THROTTLE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
