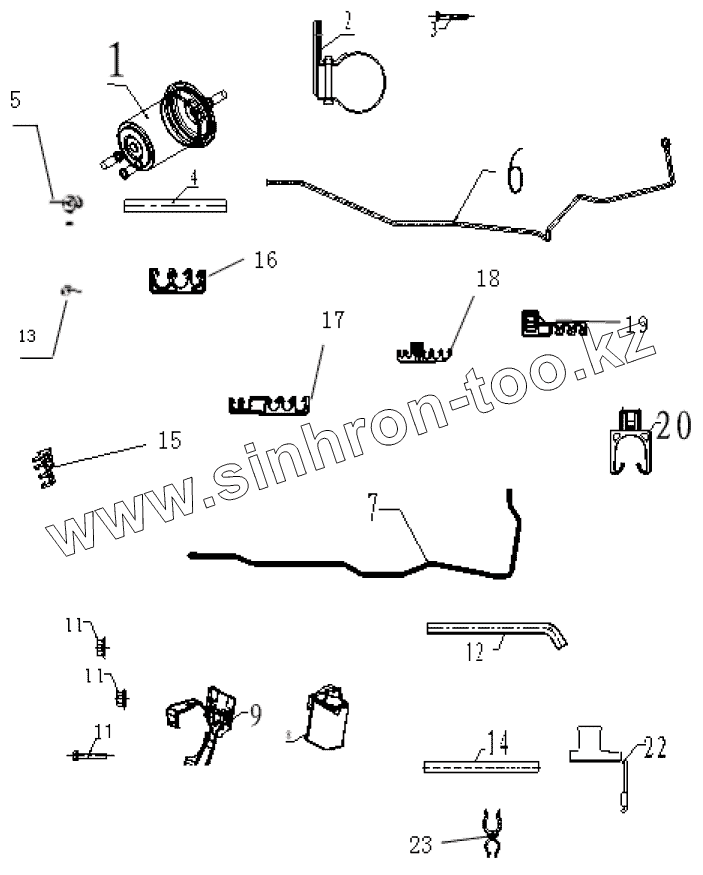

Каталог запасных частей к технике: Geely FC. FUEL PIPELINE
1
2
3
4
5
6
7
8
9
11
11
11
12
13
14
15
16
17
18
19
20
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1064000037 | FUEL FILTER ASSY. | |
| 2 | 1064000038 | FUEL FILTER MOUNTING BRACKET ASSY. | |
| 3 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. | |
| 4 | 1064000015 | FUEL PIPE | |
| 5 | "A" TYPE WORM DRIVE TUBE HOOP Q16 | "A" TYPE WORM DRIVE TUBE HOOP Q16 | |
| 6 | 1064000013 | FUEL SUPPLY PIPE ASSY. | |
| 7 | 1064000014 | FUEL STEAM CALLBACK PIPE ASSY. | |
| 8 | 1136000132 | CANISTER ASSY. | |
| 9 | 1136000133 | CANISTER MOUNTING BRACKET ASSY. | |
| 10 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. | |
| 11 | HEXAGON FLANGE NUT M6 | HEXAGON FLANGE NUT M6 | |
| 12 | 1064000039 | FUEL STEAM CALLBACK HOSE I | |
| 13 | METAL STRIP TYPE SPRING HOOP d12 | METAL STRIP TYPE SPRING HOOP d12 | |
| 14 | 1064000040 | FUEL STEAM CALLBACK HOSE II | |
| 15 | 1064000026 | THREE WAY PIPE CLIP | |
| 16 | 1064000025 | THREE WAY WITH SEAT PIPE CLIP | |
| 17 | 1064000023 | FIVE WAY WITH SEAT PIPE CLIP | |
| 18 | 1064000024 | FIVE WAY PIPE CLIP | |
| 19 | UPRIGHTNESS JACK THREE WAY PIPE CLIP | UPRIGHTNESS JACK THREE WAY PIPE CLIP | |
| 20 | 1064000028 | SQUARE JACK SINGLE WAY PIPE CLIP | |
| 21 | 1136000131 | CANISTER CONTROL VALVE ASSY. | |
| 21 | 1086000789 | CANISTER CONTROL VALVE ASSY. | |
| 22 | 1064000041 | CANISTER CONTROL VALVE BRACKET | |
| 23 | GASOILNE TANK RUBBER VENT-PIPE CLIP | GASOILNE TANK RUBBER VENT-PIPE CLIP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
