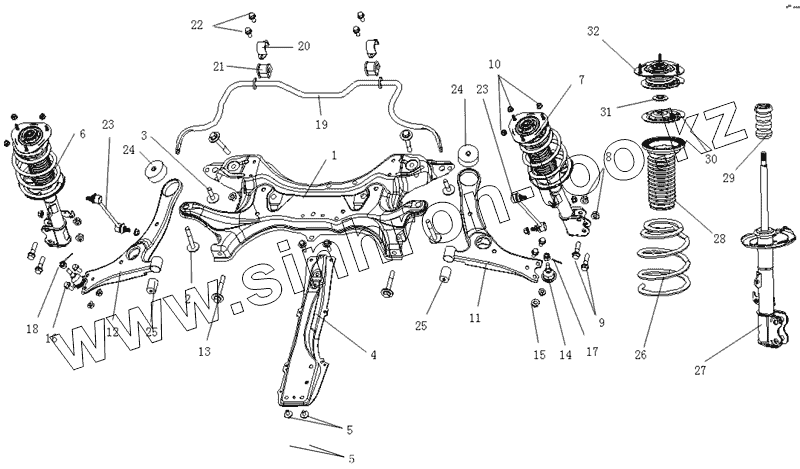

Каталог запасных частей к технике: Geely FC. FRONT SUSPENSION ASSY.
1
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
27
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1064001419 | CHASSIS FRAME ASSY. | |
| 1 | 1064000087 | CHASSIS FRAME ASSY. | |
| 2 | HEXAGON FLANGE BOLT & PLAIN WASHER ASSY | HEXAGON FLANGE BOLT & PLAIN WASHER ASSY. | |
| 3 | HEXAGON FLANGE BOLT & PLAIN WASHER ASSY | HEXAGON FLANGE BOLT & PLAIN WASHER ASSY. | |
| 4 | 1064000088 | SIDE RAIL ASSY. | |
| 5 | HEXAGON FLANGE BOLT & PLAIN WASHER ASSY | HEXAGON FLANGE BOLT & PLAIN WASHER ASSY. | |
| 6 | 1064000089 | FL POLE ASSY. | |
| 7 | 1064000090 | FR POLE ASSY. | |
| 8 | HEXAGON FLANGE BOLT NUT M14X15X55 | HEXAGON FLANGE BOLT NUT M14X1.5X55 | |
| 9 | HEXAGON FLANGE NUT M14X15 | HEXAGON FLANGE NUT M14X1.5 | |
| 10 | HEXAGON FLANGE ADDING THICK NUT | HEXAGON FLANGE ADDING THICK NUT | |
| 11 | 1064000091-01 | LEFT LOWER TRAILING ARM ASSY. | |
| 12 | 1064000092-01 | RIGHT LOWER TRAILING ARM ASSY. | |
| 13 | HEXAGON BOLT & GASKET ASSY | HEXAGON BOLT & GASKET ASSY. | |
| 14 | 1064000093 | LOWER TRAILIING ARM BALL JOINT ASSY. | |
| 15 | HEXAGON FLANGE ADDING THICK NUT | HEXAGON FLANGE ADDING THICK NUT | |
| 16 | HEXAGON FLANGE BOLT M12X125X16 | HEXAGON FLANGE BOLT M12X1.25X16 | |
| 17 | COTTER PIN 32X30 | COTTER PIN 3.2X30 | |
| 18 | HEXAGON SLOTTED NUT M14X15 | HEXAGON SLOTTED NUT M14X1.5 | |
| 19 | 1064000094 | FRONT STABILIZER BAR ASSY. | |
| 20 | 1064000095 | FRONT STABILIZER BAR FIXING CLIP | |
| 21 | 1064000096 | FRONT STABILIZER BAR RUBBER BOOT | |
| 22 | HEXAGON FLANGE BOLT & PLAIN WASHER ASSY | HEXAGON FLANGE BOLT & PLAIN WASHER ASSY. | |
| 23 | 1064000097 | FRONT STABILIZER BAR CONNECTING BAR ASSY. | |
| 24 | 1064001328 | LOWER TRAILING ARM FRONT RUBBER CUSHION | |
| 25 | 1064001329 | LOWER TRAILING ARM REAR RUBBER CUSHION | |
| 26 | 1061001033 | FRONT SUSPENSION COIL SPRING | |
| 27 | 1061001036 | LF SHOCK ABSORBER ASSY. | |
| 27 | 1061001037 | RF SHOCK ABSORBER ASSY. | |
| 28 | 1061001034 | FRONT SHOCK ABSORBER DUST BOOT | |
| 29 | 1061001032 | FRONT SHOCK ABSORBER CUSHION | |
| 30 | 1061001039 | UPPER SPRING SEAT JOINTING ASSY. | |
| 31 | 1061001031 | FRONT SHOCK ABSORBER DUSTPROOF CUSHION | |
| 32 | 1061001038 | FRONT SHOCK ABSORBER UPPER CONNECTING ASSY. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
