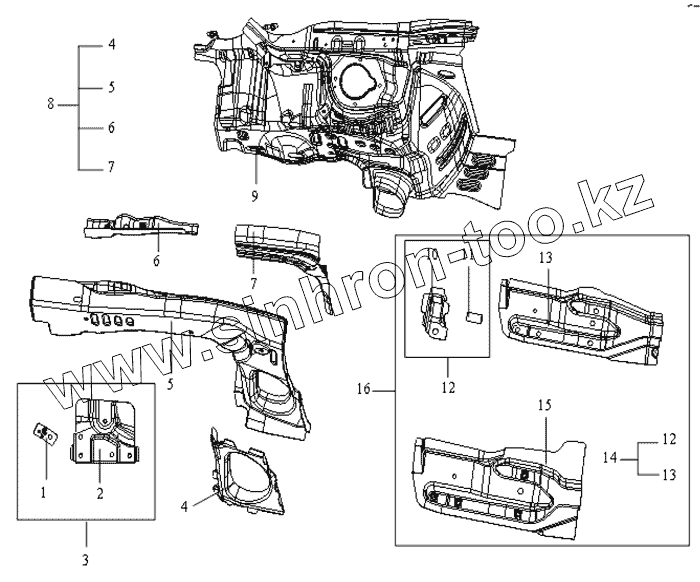

Каталог запасных частей к технике: Geely CK. RF SPLASH GUARD & FRT SIDE RAIL ASSY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
5
6
6
7
7
8
9
10
11
12
12
13
13
14
15
16
Позиция на иллюстрации Заводской номер детали Название детали
RF SPLASH GUARD & FRT SIDE RAIL ASSY RF SPLASH GUARD & FRT SIDE RAIL ASSY RF SPLASH GUARD & FRT SIDE RAIL ASSY.
1 RELAY MOUNTING BRACKET ASSY RELAY MOUNTING BRACKET ASSY.
2 ENGINE MOUNTING BRACKET SUB-ASSY ENGINE MOUNTING BRACKET SUB-ASSY.
3 1201665180 ENGINE MOUNTING BRACKET ASSY.
4 RF SIDE RAIL BOTTOM REINFORCEMENT RF SIDE RAIL BOTTOM REINFORCEMENT
5 RF SIDE RAIL RF SIDE RAIL
6 RF SIDE RAIL MIDDLE REINFORCEMENT RF SIDE RAIL MIDDLE REINFORCEMENT
7 RF SIDE RAIL FRONT REINFORCEMENT ASSY RF SIDE RAIL FRONT REINFORCEMENT ASSY.
8 RF SIDE RAIL ASSY RF SIDE RAIL ASSY.
9 1802541180 RF SPLASH GUARD ASSY.
10 RIGHT LOWER TRAILING ARM FIXING SEAT RIGHT LOWER TRAILING ARM FIXING SEAT
11 1014000504 LEFT LOWER TRAILING ARM BUSH
12 RIGHT LOWER TRAILING ARM FIXING SEAT SUB-ASSY RIGHT LOWER TRAILING ARM FIXING SEAT SUB-ASSY.
13 RIGHT LOWER TRAILING ARM MOUNTING SEAT RIGHT LOWER TRAILING ARM MOUNTING SEAT
14 RIGHT LOWER TRAILING ARM MOUNTING SEAT SUB-ASSY RIGHT LOWER TRAILING ARM MOUNTING SEAT SUB-ASSY.
15 RIGHT LOWER TRAILING ARM MOUNTING SEAT REINFORCEMENT ASSY RIGHT LOWER TRAILING ARM MOUNTING SEAT REINFORCEMENT ASSY.
16 1205647180 RIGHT LOWER TRAILING ARM MOUNTING SEAT ASSY.
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
