Каталог запасных частей к технике: Geely CK. MR479QA ENGINE ASSY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
5
6
6
6
7
8
9
10

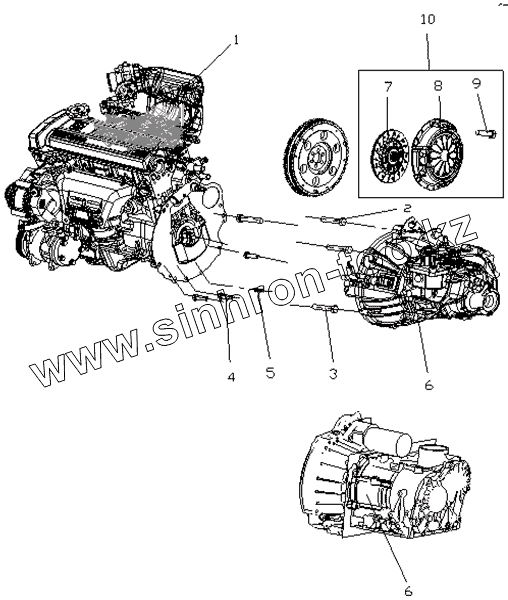

Позиция на иллюстрации Заводской номер детали Название детали
MR479QA POWER ASSY (WITH JL160 TRANSMISSION) MR479QA POWER ASSY (WITH JL160 TRANSMISSION) MR479QA POWER ASSY. (WITH JL160 TRANSMISSION)
1 1086090503 MR479QA ENGINE ASSY.
1 1086001040 MR479QA ENGINE ASSY. (AT)
2 HEXAGON BOLT AND WASHER ASSY HEXAGON BOLT AND WASHER ASSY.
3 HEXAGON BOLT AND WASHER ASSY HEXAGON BOLT AND WASHER ASSY.
4 HEXAGON BOLT AND WASHER ASSY HEXAGON BOLT AND WASHER ASSY.
5 HEXAGON BOLT AND WASHER ASSY HEXAGON BOLT AND WASHER ASSY.
6 3000000001 5-SPEED TRANSMISSION (JL160)
6 3000000011 5-SPEED TRANSMISSION (JL160G)
7 CLUTCH DRIVEN DISC ASSY (13L) CLUTCH DRIVEN DISC ASSY. (1.3L)
8 CLUTCH PRESS DISC ASSY (13L) CLUTCH PRESS DISC ASSY. (1.3L)
9 HEXAGON BOLT AND WASHER ASSY HEXAGON BOLT AND WASHER ASSY.
10 CLUTCH FIXING SETUP (15L) CLUTCH FIXING SETUP (1.5L)
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
