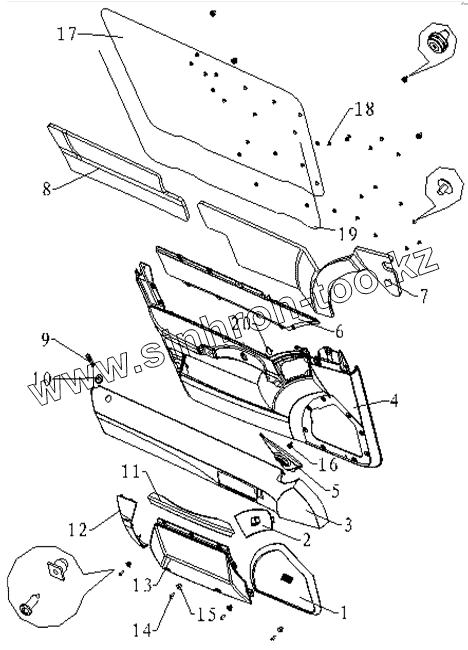

Каталог запасных частей к технике: Geely CK. LF DOOR INTERIOR TRIM ASSY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Позиция на иллюстрации Заводской номер детали Название детали
LF DOOR INTERIOR TRIM ASSY LF DOOR INTERIOR TRIM ASSY LF DOOR INTERIOR TRIM ASSY.
1 LF SPEAKER BAR LF SPEAKER BAR
2 POWER WINDOW REGULATOR SWITCH PANEL ASSY POWER WINDOW REGULATOR SWITCH PANEL ASSY.
3 LF DOOR UPPER INSIDE TRIM LF DOOR UPPER INSIDE TRIM
4 LF DOOR LOWER INSIDE TRIM LF DOOR LOWER INSIDE TRIM
5 1802235180 LF DOOR INTERIOR QUARTER TRIM
6 LF DOOR CENTER INTERIOR TRIM ASSY LF DOOR CENTER INTERIOR TRIM ASSY.
7 LF DOOR SOUND INSULATION I LF DOOR SOUND INSULATION I
8 LF DOOR SOUND INSULATION II LF DOOR SOUND INSULATION II
9 LOCK BUTTON LOCK BUTTON
10 LOCK BUTTON CUSHION LOCK BUTTON CUSHION
11 1800333180 LF DOOR HANDLE
12 1017001356 LF DOOR LIGHT CHIMNEY
13 LF DOOR INTERIOR GLOVE COMPARTMENT LF DOOR INTERIOR GLOVE COMPARTMENT
14 CROSS HEAD BOLT-"C" TYPE CROSS HEAD BOLT-"C" TYPE
15 18410013 PLASTIC NUT
16 18410024 "E" TYPE CLIP
17 FRONT DOOR WATERPROOF FILM FRONT DOOR WATERPROOF FILM
18 CROSS BIG HEAD BOLT-"C" TYPE CROSS BIG HEAD BOLT-"C" TYPE
19 GLUE BAR GLUE BAR
20 DOOR INTERIOR TRIM CENTER MOUNTING COVER DOOR INTERIOR TRIM CENTER MOUNTING COVER
