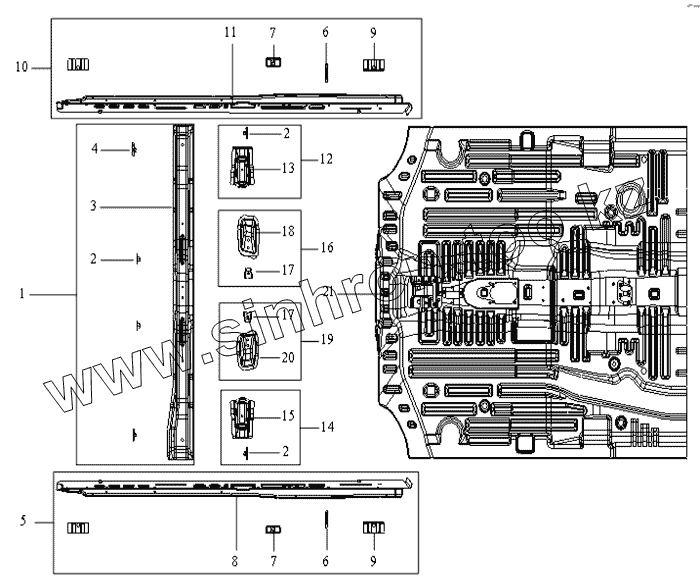

Каталог запасных частей к технике: Geely CK. FRONT FLOOR ASSY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
3
4
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
21
Позиция на иллюстрации Заводской номер детали Название детали
106201001801 106201001801 FRONT FLOOR ASSY.
1 FRONT FLOOR CROSS MEMBER ASSY FRONT FLOOR CROSS MEMBER ASSY.
2 SEAT NUT PLATE ASSY SEAT NUT PLATE ASSY.
3 FRONT FLOOR CROSS MEMBER SUB-ASSY FRONT FLOOR CROSS MEMBER SUB-ASSY.
4 RF SEAT NUT PLATE ASSY RF SEAT NUT PLATE ASSY.
5 106201002301 LEFT DOORFRAME LOWER SIDE RAIL INNER BOARD ASSY.
6 NIP NIP
7 FRT SEAT SAFETY BELT RETRACTOR MOUNTING NUT PLATE ASSY FRT SEAT SAFETY BELT RETRACTOR MOUNTING NUT PLATE ASSY.
8 LEFT DOORFRAME UPPER SIDE RAIL INNER BOARD LEFT DOORFRAME UPPER SIDE RAIL INNER BOARD
9 BODY SUPPORT BOARD BODY SUPPORT BOARD
10 106201002401 RIGHT DOORFRAME LOWER SIDE RAIL INNER BOARD ASSY. RIGHT DOORFRAME LOWER SIDE RAIL INNER
11 BOARD BOARD
12 RF SEAT RIGHT SLIP RAIL REAR BRACKET ASSY RF SEAT RIGHT SLIP RAIL REAR BRACKET ASSY.
13 RF SEAT RIGHT SLIP RAIL REAR BRACKET RF SEAT RIGHT SLIP RAIL REAR BRACKET
14 LF SEAT LEFT SLIP RAIL REAR BRACKET ASSY LF SEAT LEFT SLIP RAIL REAR BRACKET ASSY.
15 LF SEAT LEFT SLIP RAIL REAR BRACKET LF SEAT LEFT SLIP RAIL REAR BRACKET
16 RF SEAT LEFT SLIP RAIL REAR BRACKET ASSY RF SEAT LEFT SLIP RAIL REAR BRACKET ASSY.
17 NUT PLATE ASSY NUT PLATE ASSY.
18 RF SEAT LEFT SLIP RAIL REAR BRACKET RF SEAT LEFT SLIP RAIL REAR BRACKET
19 LF SEAT RIGHT SLIP RAIL REAR BRACKET ASSY LF SEAT RIGHT SLIP RAIL REAR BRACKET ASSY.
20 LF SEAT RIGHT SLIP RAIL REAR BRACKET LF SEAT RIGHT SLIP RAIL REAR BRACKET
21 FRONT FLOOR SUB-ASSY FRONT FLOOR SUB-ASSY.
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
