Каталог запасных частей к технике: Geely CK. ENGINE MOUNTING ASSY (15L NEW)

Тип техники

Марка

Модель

Схема

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

14

15

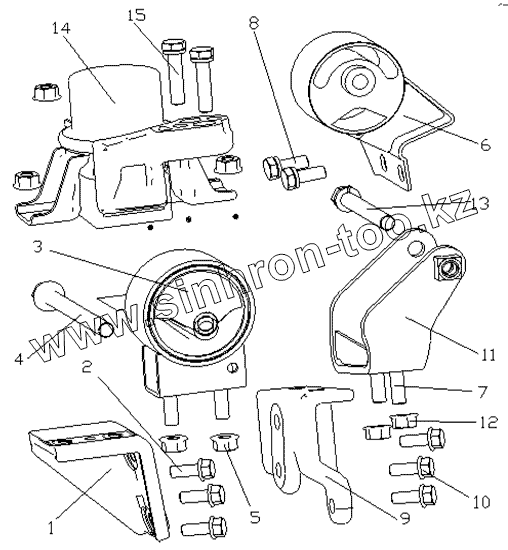

Позиция на иллюстрации	Заводской номер детали		Название детали
ENGINE MOUNTING ASSY (15L NEW)	ENGINE MOUNTING ASSY (15L NEW)		ENGINE MOUNTING ASSY. (1.5L NEW)
1	1600564180		ENGINE MOUNTING LEFT BRACKET
1	1016001768		ENGINE LEFT BRACKET
2	HEXAGON HEAD BOLT & SPRING WASHER ASSY		HEXAGON HEAD BOLT & SPRING WASHER ASSY.
3	1601490180		ENGINE LEFT MOUNTING ASSY.
4	HEXAGON FLANGE BOLT		HEXAGON FLANGE BOLT
5	HEXAGON FLANGE NUT		HEXAGON FLANGE NUT
6	1601491180		ENGINE REAR MOUNTING ASSY.
7	HEXAGON HEAD BOLT & SPRING WASHER ASSY		HEXAGON HEAD BOLT & SPRING WASHER ASSY.
8	HEXAGON HEAD BOLT & SPRING WASHER ASSY		HEXAGON HEAD BOLT & SPRING WASHER ASSY.
9	1600152180		LOWER SUPPORT
10	HEXAGON HEAD BOLT & SPRING WASHER ASSY		HEXAGON HEAD BOLT & SPRING WASHER ASSY.
11	1600501180		ENGINE MOUNTING REAR BRACKET
12	HEXAGON FLANGE LOCK NUT		HEXAGON FLANGE LOCK NUT
13	HEXAGON HEAD BOLT & SPRING WASHER ASSY		HEXAGON HEAD BOLT & SPRING WASHER ASSY.
14	1016001489		ENGINE RIGHT MOUNTING ASSY.
14	1016001765		ENGINE RIGHT MOUNTING ASSY.
15	HEXAGON HEAD BOLT & SPRING WASHER ASSY		HEXAGON HEAD BOLT & SPRING WASHER ASSY.

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
