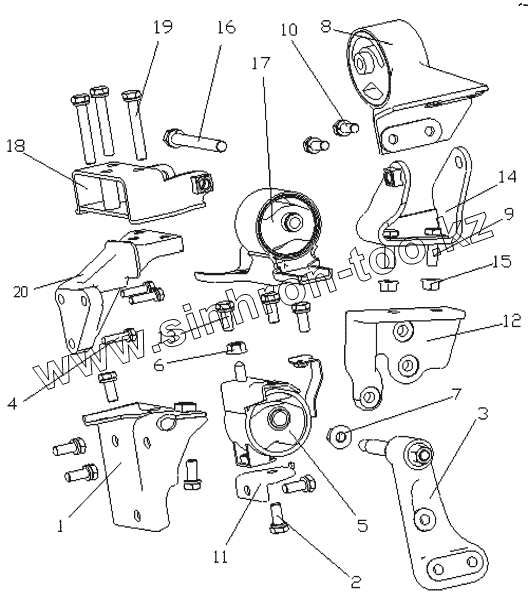

Каталог запасных частей к технике: Geely CK. ENGINE MOUNTING ASSY (15L)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Позиция на иллюстрации Заводской номер детали Название детали
ENGINE MOUNTING ASSY ENGINE MOUNTING ASSY ENGINE MOUNTING ASSY.
1 1600564180 ENGINE MOUNTING LEFT BRACKET
2 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
3 1600412180 ENGINE MOUNTING BRACKET
4 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
5 1601808180 ENGINE MOUNTING LEFT CUSHION ASSY.
6 HEXAGON FLANGE NUT-A CLASS HEXAGON FLANGE NUT-A CLASS
7 HEXAGON FLANGE NUT-A CLASS HEXAGON FLANGE NUT-A CLASS
8 1600437180 ENGINE REAR CUSHION ASSY.
9 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
10 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
11 1600566180 ENGINE MOUNTING LEFT SUPPORT BOARD
12 1600152180 LOWER SUPPORT
13 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
14 1600501180 ENGINE MOUNTING REAR BRACKET
15 HEXAGON FLANGE LOCK NUT HEXAGON FLANGE LOCK NUT
16 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
17 1600435180 ENGINE RIGHT CUSHION ASSY.
18 1600418180 ENGINE INSTALLATION RIGHT BRACKET
19 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
20 2000410104 ENGINE RIGHT FIXING BRACKET
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
