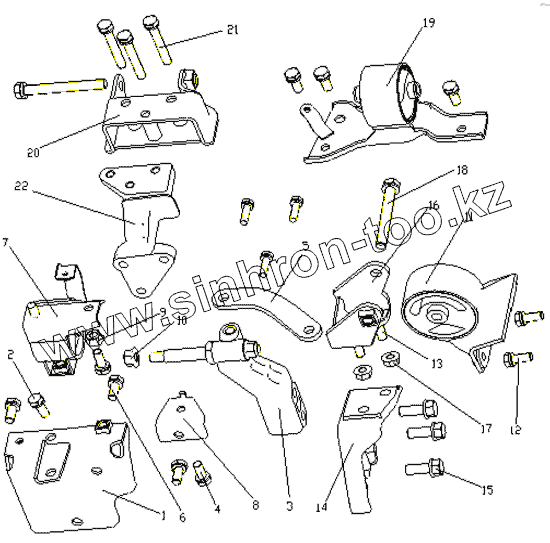

Каталог запасных частей к технике: Geely CK. ENGINE MOUNTING ASSY (13L)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Позиция на иллюстрации Заводской номер детали Название детали
ENGINE MOUNTING ASSY ENGINE MOUNTING ASSY ENGINE MOUNTING ASSY.
1 1600564180 ENGINE MOUNTING LEFT BRACKET
2 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
3 1600411180 ENGINE MOUNTING FRT BRACKET
4 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
5 1600567180 ENGINE INSTALLATION 2# LEFT SUPPORT BOARD
6 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
7 1600436180 ENGINE MOUNTING LEFT BRACKET CUSHION ASSY.
8 1600566180 ENGINE MOUNTING LEFT SUPPORT BOARD
9 HEXAGON FLANGE NUT-A CLASS M10X125 HEXAGON FLANGE NUT-A CLASS M10X1.25
10 HEXAGON FLANGE NUT-A CLASS M12X126 HEXAGON FLANGE NUT-A CLASS M12X1.26
11 1600437180 ENGINE REAR CUSHION ASSY.
12 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
13 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
14 1600434180 ENGINE MOUNTING REAR 1# BRACKET
15 HEXAGON FLANGE BOLT-B CLASS M12X125X30 HEXAGON FLANGE BOLT-B CLASS M12X1.25X30
16 1600401180 ENGINE MOUNTING REAR BRACKET
17 HEXAGON FLANGE LOCK NUT HEXAGON FLANGE LOCK NUT
18 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
19 1600435180 ENGINE RIGHT CUSHION ASSY.
20 1600418180 ENGINE INSTALLATION RIGHT BRACKET
21 HEXAGON HEAD BOLT & SPRING WASHER ASSY HEXAGON HEAD BOLT & SPRING WASHER ASSY.
22 2000410104 ENGINE RIGHT FIXING BRACKET
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
