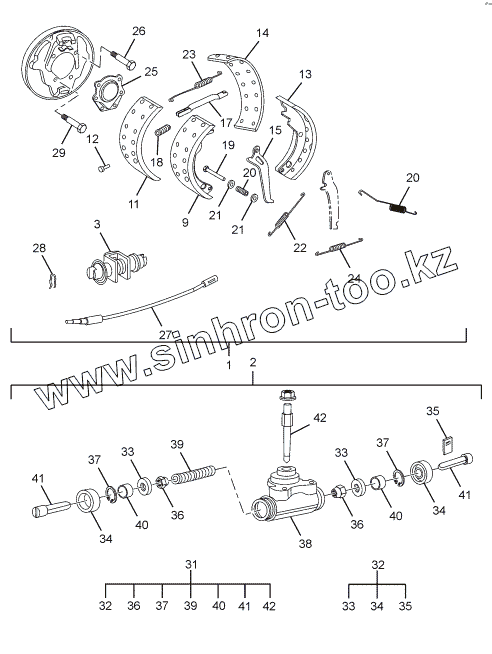

Каталог запасных частей к технике: Tata SFC 407 LHD Euro II. REAR WHEEL BRAKES
1
1
2
3
9
11
11
11
12
13
14
14
14
15
15
17
17
18
19
20
20
21
21
22
23
24
25
26
27
28
29
31
32
32
33
33
33
33
34
34
34
34
35
35
35
36
36
36
37
37
37
38
39
39
40
40
40
41
41
41
42
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 265142310134 | 265142310134 | ASSY ANCHOR PLATE REAR-RH | |
| 265142310133 | 265142310133 | ASSY ANCHOR PLATE REAR-LH | |
| 265142100152 | 265142100152 | ASSY AUTO ADJUSTER-NEW | |
| 1 | 265142310165 | ASSY REAR AXLE BRAKE RH (SFC 406) | |
| 1 | 265142310164 | ASSY REAR AXLE BRAKE LH (SFC 406) | |
| 2 | 265142300165 | ASSY. WHEEL CYLINDER 17.78 DIA. | |
| 3 | 265142100121 | ASSY. ADJUSTER COMPLETE | |
| 9 | 265142130128 | ASSY.BRAKE SHOE W/LINING PRIM-SA63SM | |
| 11 | 264042136306 | BRAKE LINING PRIMARY NORMAL, 9.8 MM THICK | |
| 11 | 264042136307 | BRAKE LINING PRIMARY R/S I, 10.8 MM THICK | |
| 11 | 264042136308 | BRAKE LINING PRIMARY R/S II, 11.8 MM THICK | |
| 12 | 13442506102 | HOLLOW RIVET 6X10 ST. | |
| 13 | 265142130129 | ASSY.BRAKE SHOE W/LINING PRIM-SA63SM | |
| 14 | 264042136302 | BRAKE LINING SECONDARY NORMAL 9.8 MM THICK | |
| 14 | 264042136303 | BRAKE LINING SECONDARY R/S I 10.8 MM THICK | |
| 14 | 264042136304 | BRAKE LINING SECONDARY R/S II 11.8 MM THICK | |
| 15 | 264042306002 | BRAKE LEVER LH | |
| 15 | 264042306001 | BRAKE LEVER RH | |
| 17 | 264042300105 | ASSY. THRUST ROD LH | |
| 17 | 264042300106 | ASSY. THRUST ROD RH | |
| 18 | 264042308701 | THRUST SPRING | |
| 19 | 264042106701 | PIN | |
| 20 | 265142308701 | SPRING (AXIAL RETAINING) | |
| 21 | 265142308215 | COVER | |
| 22 | 264042108705 | RETURN SPRING (CENTRE) | |
| 23 | 264042108704 | SPRING | |
| 24 | 265142108706 | RETURN SPRING (BOTTOM) | |
| 25 | 265142308233 | OIL CATCHER | |
| 26 | 257342308004 | HEX. SCREW | |
| 27 | 265242700120 | ASSY. PARKING BRAKE CABLE REAR | |
| 28 | 265142704301 | CLIP | |
| 29 | 264142308001 | HEX. SCREW | |
| 31 | 265142300171 | REPAIR KIT (MINOR) WHEEL CYLINDER (17.78 MM DIA.) CONSISTING OF : | |
| 32 | 265142300167 | REPAIR KIT (MINOR) WHEEL CYLIDER (17.85 MM DIA.) CONSISTING OF | |
| 33 | LIP SEAL | LIP SEAL | |
| 33 | LIP SEAL | LIP SEAL | |
| 34 | RUBBER BOOT | RUBBER BOOT | |
| 34 | RUBBER BOOT | RUBBER BOOT | |
| 35 | GREASE TUBE | GREASE TUBE | |
| 35 | GREASE TUBE | GREASE TUBE | |
| 36 | CAP | CAP | |
| 37 | CIRCLIP | CIRCLIP | |
| 38 | BODY | BODY | |
| 39 | SPRING | SPRING | |
| 40 | PISTON | PISTON | |
| 41 | PUSH ROD | PUSH ROD | |
| 42 | BLEEDER SCREW | BLEEDER SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
